Specifications
1.super steel structure design, stable &reliable.2. PLC system, more intelligent
3.super vibration system, good performance
I. General Layout of Block Production Line
II. Introduction of GTA12-15 Concrete / Cement Hollow / Solid / Paver Block / Brick Making Machine:
GTA12-15 can widely use fly ash, slag, sand, cement, steel slag, construction waste, other industrial waste, etc to produce standard bricks, porous blocks, hollow blocks, paving blocks, interlocking blocks, other concrete blocks, etc. It can effectively save energy, recycle industrial waste, and protect environmental.
Components of GTA12-15:
No. |
Components |
Quantity |
1 |

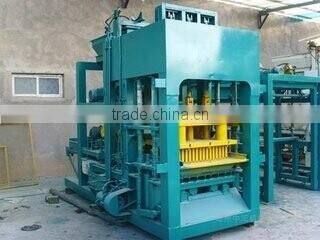

GTA12-15 Block Machine |
1 set |
2 |
Automatic Pallet Feeder |
1 set |
3 |
Automatic Pallet Discharger |
1 set |
4 |
Material Distributor |
1 set |
5 |
Material Conveyor |
1 set |
6 |

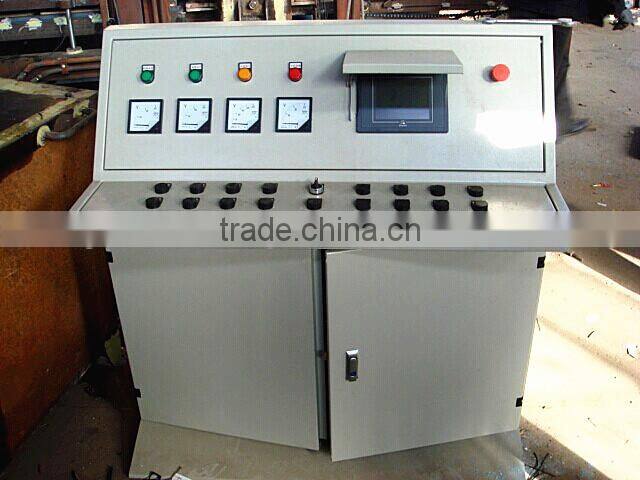

PLC Station |
1 set |
7 |
Material Mixer |
1 set |
8 |

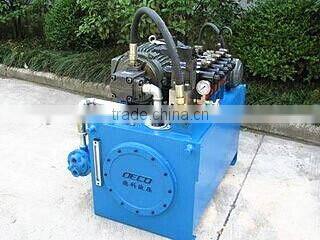

Hydraulic Station |
1 set |
9 |
Block Conveyor |
1 set |
10 |
Automatic Stacker |
1 set |
11 |
Board Cart |
1 set |
Features:
1.GTA12-15 applies to super steel structure design, with extensive imported components, to make it more stable and reliable.
2.GTA12-15 applies to PLC and man-machine interface system, which can perform with signal analysis, failure detecting and diagnosing, and all parameters setting.
3. GTA12-15 applies to multi-driven mould head, driven by mechanical and hydraulic force, ensuring the minimum height tolerance for each pallet brick/block.
4. GTA12-15 applies to Hydraulic station system, improving mechanical automation of machine, saving energy and labors.
Block Machine Specification:
Block Machine Dimension |
8650*3500*2950 (mm) |
Shaping Area |
1200x800 (mm) |
Shaping Hight |
32-200(mm) |
Shaping Period |
15(s) |
Pallet Dimension |
1380xx850x40(mm) |
Machine Weight |
14.8(t) |
Machine Power |
52kw |
Capacity:
Form |
Finished product dimension |
Pcs/pallet |
Pcs/day |
Pcs/year |
Remark |
Standard Brick |
240x115x53mm |
60 |
115,200 |
69,120,000 |
8Hrs/day 2 shift |
Hollow Block |
390x190x190mm |
12 |
23,040 |
13,824,000 |
|
Paving Block |
200x100x60mm |
42 |
80,640 |
48,384,000 |
|
Porous Brick |
240x115x90mm |
30 |
57,600 |
34,560,000 |
|
Raw material:
Raw Materials are include: Fly ash, Slag, Coal Gangue, Lime-sand, Crushed Stone, Sand, Construction Garbage, Cement etc.
Only 1-2 kinds of materials aforesaid you have, we will provide you the ideal and suitable brick/block making formulation, and assure the finished brick/block quality.
Brick Types:
Brick mould:
Your block size, type, shape, its material and your ideal production capacity is kindly needed, we will introduce you the most suitable model of brick/block making machine as per your requirements for you, which will fully meet your needs in site work.
III. After-service
1. Hollow Brick machine Turn-Key Solutions
2. Erection & Commissioning Service
3. Operation Training Service
4. Spare Parts Supply ( all working life)
IV. Delivery
V. Certificate
VI. Cooperation:

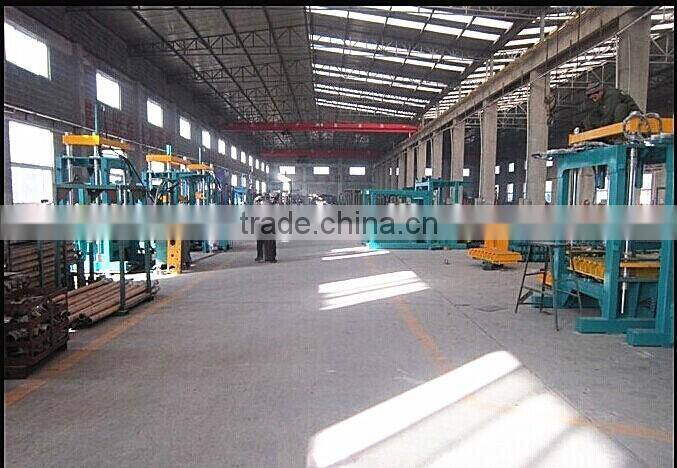

VII. Our factory
VIII. Contact
