Good quality GTA12-15 block making machine/hot sale block production line Quality Choice

Specifications

1.super steel structure design, stable &reliable.
2. PLC system, more intelligent
3.super vibration system, good performance

I. General Layout of Block Production Line



II. Introduction of  GTA12-15 Concrete / Cement Hollow / Solid / Paver Block / Brick Making Machine:





GTA12-15 can widely use fly ash, slag, sand, cement, steel slag, construction waste, other industrial waste, etc to produce standard bricks, porous blocks, hollow blocks, paving blocks, interlocking blocks, other concrete blocks, etc. It can effectively save energy, recycle industrial waste, and protect environmental.



Components of GTA12-15:



No.	Components	Quantity

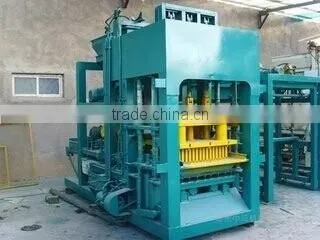

1	GTA12-15 Block Machine	1 set
2	Automatic Pallet Feeder	1 set
3	Automatic Pallet Discharger	1 set
4	Material Distributor	1 set
5	Material Conveyor	1 set

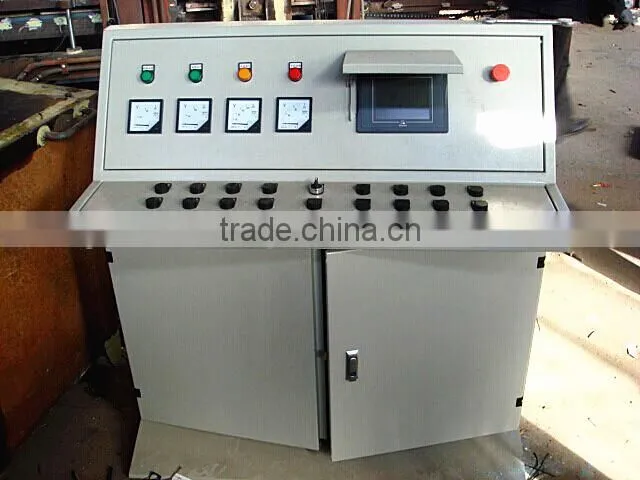

6	PLC Station	1 set
7	Material Mixer	1 set

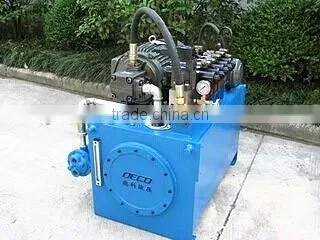

8	Hydraulic Station	1 set
9	Block Conveyor	1 set
10	Automatic Stacker	1 set
11	Board Cart	1 set





Features:

1.GTA12-15 applies to super steel structure design, with extensive imported components, to make it more stable and reliable.



2.GTA12-15 applies to PLC and man-machine interface system, which can perform with signal analysis, failure detecting and diagnosing, and all parameters setting.



3. GTA12-15 applies to multi-driven mould head,  driven by mechanical and hydraulic force,  ensuring the minimum height tolerance for each pallet brick/block.



4. GTA12-15 applies to Hydraulic station system, improving mechanical automation of machine, saving energy and labors.







Block Machine Specification:



Block Machine Dimension	8650*3500*2950 (mm)
Shaping Area	1200x800 (mm)
Shaping Hight	32-200(mm)
Shaping Period	15(s)
Pallet Dimension	1380xx850x40(mm)
Machine Weight	14.8(t)
Machine Power	52kw







Capacity:

Form	Finished product dimension	Pcs/pallet	Pcs/day	Pcs/year	Remark
Standard Brick	240x115x53mm	60	115,200	69,120,000	8Hrs/day 2 shift 300 days/ year
Hollow Block	390x190x190mm	12	23,040	13,824,000
Paving Block	200x100x60mm	42	80,640	48,384,000
Porous Brick	240x115x90mm	30	57,600	34,560,000



Raw material:



Raw Materials are include: Fly ash, Slag, Coal Gangue, Lime-sand, Crushed Stone,  Sand,  Construction Garbage, Cement etc.

Only 1-2 kinds of materials aforesaid  you have, we will provide you the ideal and suitable brick/block making formulation, and assure the  finished brick/block quality.



Brick Types:



Brick mould:



Your block size, type, shape, its material and your ideal production capacity is kindly needed, we will introduce you the most suitable model of brick/block making machine as per your requirements for you, which will fully meet your needs in site work.





III. After-service

1. Hollow Brick machine Turn-Key Solutions

2. Erection & Commissioning Service

3. Operation Training Service

4. Spare Parts Supply ( all working life)



IV. Delivery







V. Certificate







VI. Cooperation:

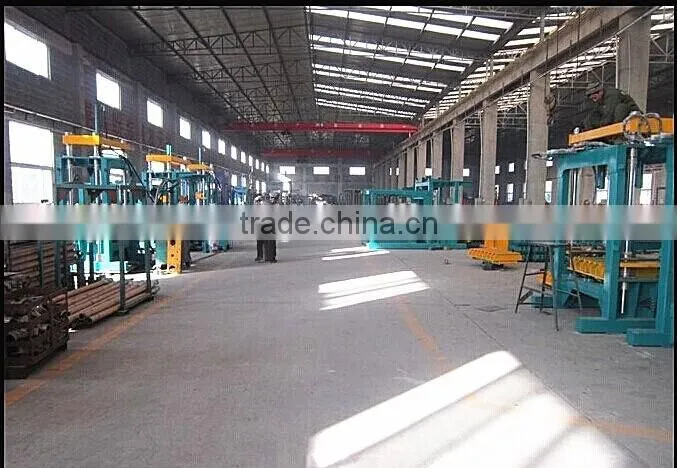

VII. Our factory







VIII. Contact
