Specifications
1.super steel structure design, stable &reliable.2. PLC system, more intelligent
3.super vibration system, good performance
I. General Layout of Block Production Line

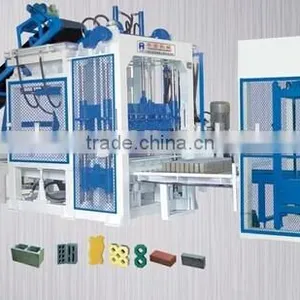

II. Introduction of GTA8-15 Concrete / Cement Hollow / Solid / Paver Block / Brick Making Machine:
GTA8-15 can widely use fly ash, slag, sand, cement, steel slag, construction waste, other industrial waste, etc to produce standard bricks, porous blocks, hollow blocks, paving blocks, interlocking blocks, other concrete blocks, etc. It can effectively save energy, recycle industrial waste, and protect environmental.
Components of GTA8-15:
GTA8-15 Block Production Line | ||
No. | Components | Quantity |
1 | Material Mixer ( for concrete material ) | 1 set |
2 | B500x6m Material Conveyor ( for concrete material ) | 1 set |
3 | GTA8-15 Block Machine | 1 set |
4 | Hydraulic Station | 1 set |
5 | PLC Station | 1 set |
6 | Pallet Loader | 1 set |
7 | Block Conveyor | 1 set |
8 | Color Material Feeding Machine | 1 set |
9 | Pan Mixer ( for color material ) | 1 set |
10 | Mould 390x190x190mm | 1 set |
11 | Stacker | 1 set |
Features:
1.GTA8-15 applies to super steel structure design, with extensive imported components, to make it more stable and reliable.
2.GTA8-15 applies to PLC and man-machine interface system, which can perform with signal analysis, failure detecting and diagnosing, and all parameters setting.
3. GTA8-15 applies to Super vibration system, improving the density of block and the lifespan of Mould.
4. GTA8-15 applies to Auto Stacker System, saving labors, maintenance and cost.
Block Machine Specification:
Block Machine Dimension | 6100x2800x2660(mm) |
Shaping Area | 900x800(mm) |
Shaping Hight | 32-200(mm) |
Shaping Period | 11-18(s) |
Pallet Dimension | 950x850(mm) |
Machine Weight | 13(t) |
Machine Power | 37.5kw |
Material Mixer Specification:
Model | JS500 | JS750 | JS1000 |
Feed Capacity | 800L | 750L | 1000L |
Discharge Capacity | 500L | 1200L | 1600L |
Production Rate | 25-30 m3/h | ≥35 m3/h | ≥40 m3/h |
Mixing speed | 35r/min | 27 r/min | 27 r/min |
Bucket Lifting Speed | 18m/min | 18m/min | 18m/min |
Mixing motor Power | 18.5kw | 30 kw | 37 kw |
Lifting motor Power | 4.5-5.5 kw | 7.5 kw | 11 kw |
Maximum Particle Size | 60-80mm | 60-80mm | 60-80mm |
Dimension | 2850x2700x5246mm | 5138x4814x6388mm | 5338x3300x6510mm |
Machine Weight | 4200kg | 7156kg | 8000kg |
Capacity:
Form | Finished product dimension | Pcs/pallet | Pcs/day | Pcs/year | Remark |
Standard Brick | 240x115x53mm | 42 | 76,800 | 46,080,000 | 8Hrs/day 2 shift 300Days/Year
|
Hollow Block | 390x190x190mm | 8 | 17,280 | 10,368,000 | |
Porous Brick | 240x115x90mm | 20 | 38,400 | 23,040,000 | |
Paving Brick | 200x100x60mm | 22 | 42,240 | 25,344,000 |
Raw material:
Raw Materials are include: Fly ash, Slag, Coal Gangue, Lime-sand, Crushed Stone, Sand, Construction Garbage, Cement etc.
Only 1-2 kinds of materials aforesaid you have, we will provide you the ideal and suitable brick/block making formulation, and assure the finished brick/block quality.
Brick Types:
Brick mould:
Your block size, type, shape, its material and your ideal production capacity is kindly needed, we will introduce you the most suitable model of brick/block making machine which will fully meet your needs in site work..
III. After-service
1. Hollow Brick machine Turn-Key Solutions
2. Erection & Commissioning Service
3. Operation Training Service
4. Spare Parts Supply ( all working life)
IV. Delivery
V. Certificate
VI. Cooperation:
VII. Our factory
VIII. Contact
