Specifications
1.super steel structure design, stable &reliable.2. PLC system, more intelligent
3.super vibration system, good performance

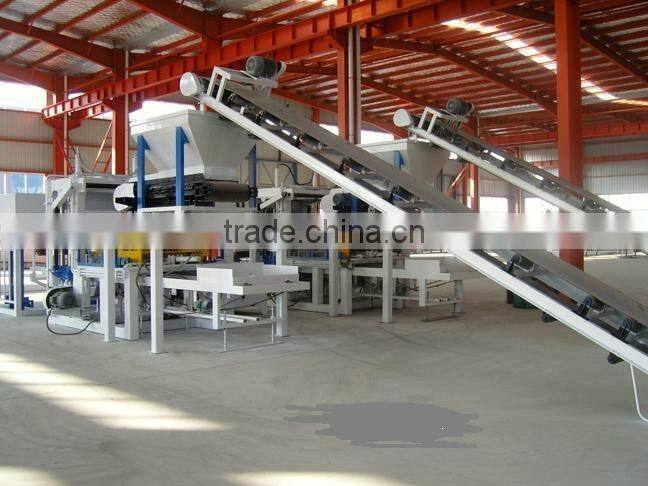

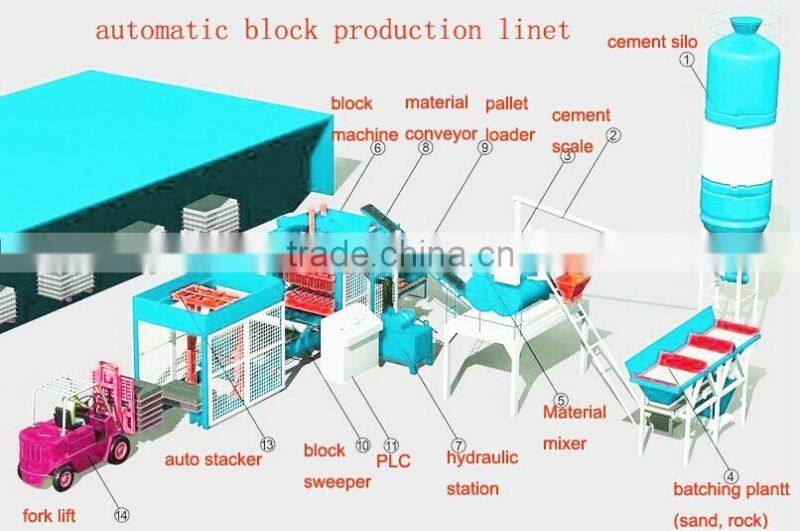

I. General Layout of Block Production Line

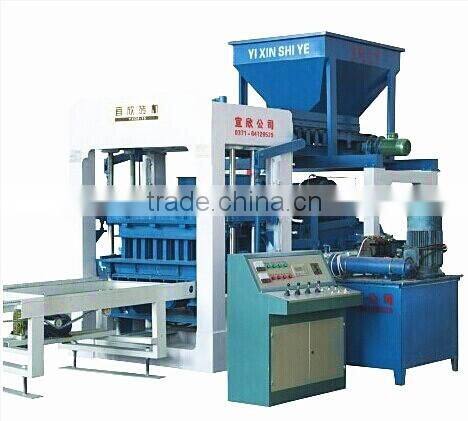

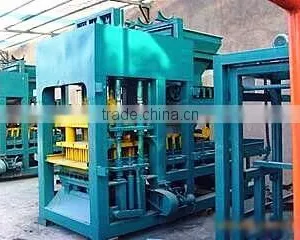

II. Introduction of GTA10-15 Concrete / Cement Hollow / Solid / Paver Block / Brick Making Machine:
GTA10-15 can widely use fly ash, slag, sand, cement, steel slag, construction waste, other industrial waste, etc to produce standard bricks, porous blocks, hollow blocks, paving blocks, interlocking blocks, other concrete blocks, etc. It can effectively save energy, recycle industrial waste, and protect environmental.
Components of GTA10-15:
GTA10-15 Block Production Line | ||
No. | Components | Quantity |
1 | GTA10-15 Block Machine | 1 set |
2 | Automatic Pallet Feeder | 1 set |
3 | Automatic Pallet Discharger | 1 set |
4 | Material Distributor | 1 set |
5 | Material Mixer | 1 set |
6 | Material Conveyor | 1 set |

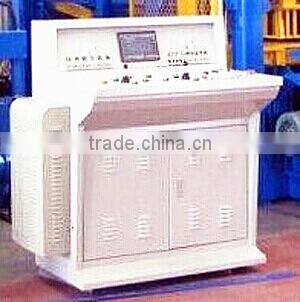

7 | PLC Station | 1 set |

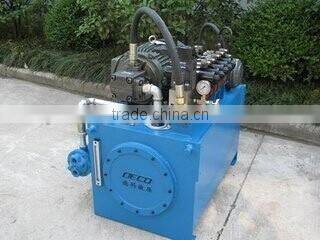

8 | Hydraulic Station | 1 set |
9 | Board Cart | 1 set |
10 | Block Conveyor | 1 set |
11 | Automatic Stacker | 1 set |
Features:
1.GTA10-15 applies to super steel structure design to make it more stable and reliable.
2.GTA10-15 applies to PLC and man-machine interface system, with signal analysis, failure detecting & diagnosing, and all parameters setting.
3. GTA10-15 applies to multi-driven mould head, driven by mechanical and hydraulic force, ensuring the minimum height tolerance for each pallet.
4. GTA10-15 applies to Hydraulic System, saving labors, maintenance and cost.

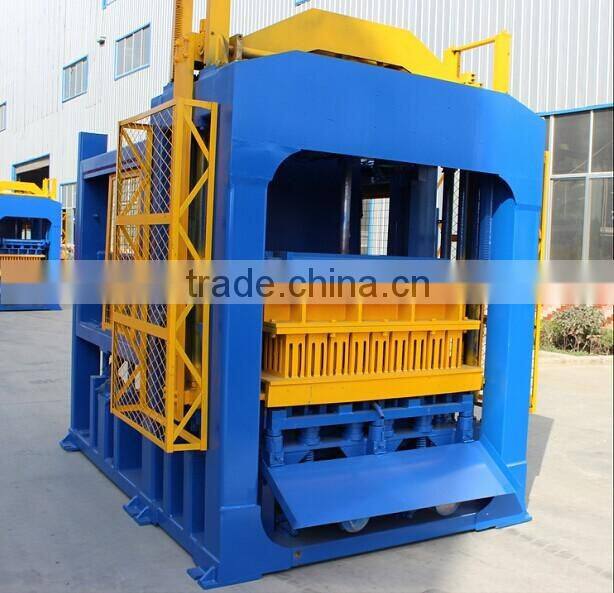

Block Machine Specification:
Block Machine Dimension | 6100x2800x2660(mm) |
Shaping Area | 1040x800(mm) |
Shaping Hight | 32-200(mm) |
Shaping Period | 15(s) |
Pallet Dimension | 1180xx850x30(mm) |
Machine Weight | 14(t) |
Machine Power | 40kw |
Material Mixer Specification:
Model | JS500 | JS750 | JS1000 |
Feed Capacity | 800L | 750L | 1000L |
Discharge Capacity | 500L | 1200L | 1600L |
Production Rate | 25-30 m3/h | ≥35 m3/h | ≥40 m3/h |
Mixing speed | 35r/min | 27 r/min | 27 r/min |
Bucket Lifting Speed | 18m/min | 18m/min | 18m/min |
Mixing motor Power | 18.5kw | 30 kw | 37 kw |
Lifting motor Power | 4.5-5.5 kw | 7.5 kw | 11 kw |
Maximum Particle Size | 60-80mm | 60-80mm | 60-80mm |
Dimension | 2850x2700x5246mm | 5138x4814x6388mm | 5338x3300x6510mm |
Machine Weight | 4200kg | 7156kg | 8000kg |
Capacity:
Form | Finished product dimension | Pcs/pallet | Pcs/day | Pcs/year | Remark |
Standard Brick | 240x115x53mm | 51 | 100,000 | 60,000,000 | 8Hrs/day 2 shift |
Hollow Block | 390x190x190mm | 10 | 20,000 | 12,000,000 | |
Porous Brick | 240x115x90mm | 25 | 50,000 | 30,000,000 | |
Paving Block | 200x100x60mm | 24 | 48,000 | 28,000,000 |
Raw material:
Raw Materials are include: Fly ash, Slag, Coal Gangue, Lime-sand, Crushed Stone, Sand, Construction Garbage, Cement etc.
Only 1-2 kinds of materials aforesaid you have, we provide you the brick/block making formulation, and assure the finished brick/block quality.

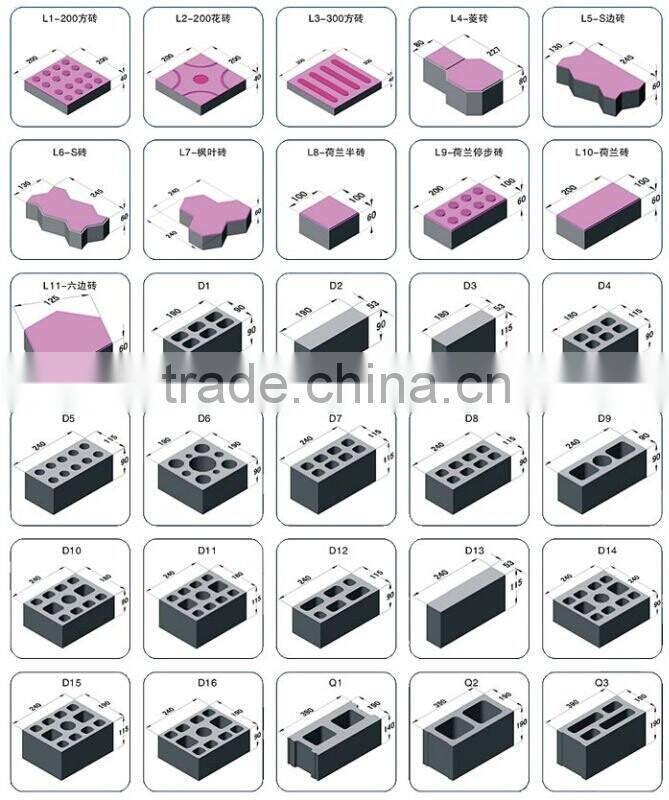

Brick Types:

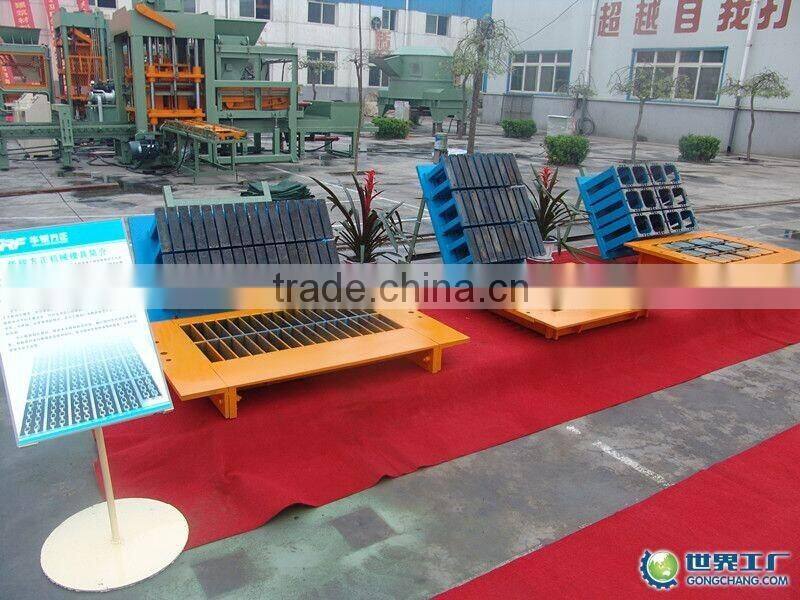

Brick mould:
Your block size, type, shape, its material and production capacity is kindly needed, we will introduce you the most suitable model of brick/block making machine.
III. After-service
1. Hollow Brick machine Turn-Key Solutions
2. Erection & Commissioning Service

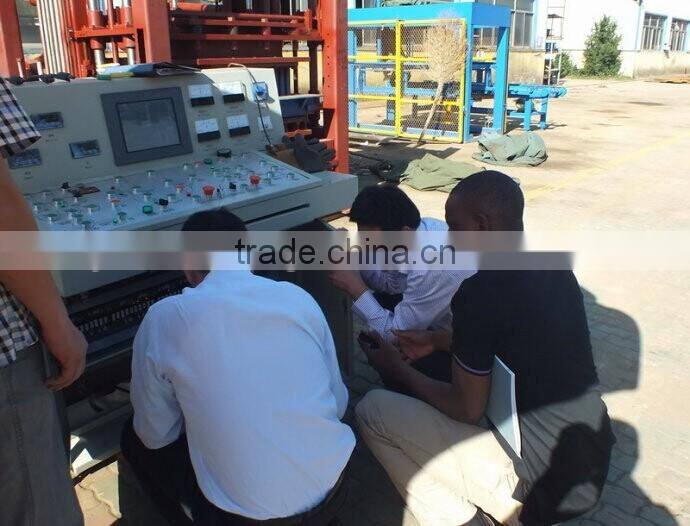

3. Operation Training Service
4. Spare Parts Supply ( all working life)
IV. Delivery
V. Certificate
VI. Cooperation:
VII. Our factory
