10 feet flex banner solvent printer infiniti challenger FY3286J Large format printer machine

Name: 10 feet flex banner solvent printer infiniti challenger FY3286J Large format printer machine
Brand: Infiniti
Availability: InStock

FOB Price

US$ 15,000 - 17,500 / Set

1 Set(Min. Order)

Port GUANGZHOU
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Guangdong, China	Brand Name	Infiniti
Model Number	FY-3286J	Usage	Bill Printer, Card Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade	Automatic	Voltage	220V
Gross Power	1500W	Dimensions(LWH)	L4980mmxW1140mmxH1620mm
Weight	923kg	Certification	CE Certification
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

infiniti/challenger digital printer FY-3286J

1.with 6 SPT 508 gray scale printheads
2.3.2m max printing width
3.full aluminum platform

4.6 corlor: C M Y K Lc Lm

5. Adopt USB2.0 output system,faster and more flexible

6. AC X,Y servo motor operate stably
7.speed data port, ensure high speed and quality and long scale output printing

Specification:

Model	FY-3286J
Printhead	Japan SPT508GS
Number of Printhead	6 Heads
Number of Model	SPT 508 gray scale head (12-36 pico liter)
Printhead Sequency	1x6
Printing Speed	Printing mode Output (m²/hr) Draf mode 2 PASS 93 Production mode 3 PASS 64 Quality mode 4 PASS 49 High qualitiy mode 6 PASS 32
Maximum Printing Width	3,200mm(125.98inch)
Ink	Type : Solvent Ink & ECO-Solvent Ink Color: 6 Colors(C,M,Y,K,Lc,Lm) Capacity :1L or 5L Per Main Tank of Each Color Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System
Media	Width & Weight : Maximum3,300mm(129.92’’) 120KG Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heat & Dry System	Equipped (Drying System Optional)
Clamp	Equipped
Printing Interface	USB2.0 Cable
Printhead High	Above Media Adjustable
RIP Software	Maintop(equip) , UltraPrint ,Photoprint
Power	Printer :AC 220V, 50Hz 3.5A 770W Platen heating: AC 220V,50HZ 9A 1980W
Machine Dimension	L4, 500 x W905 x H1,260mm / 348KG
Package Dimension	L4, 590 x W1,050 x H890mm / 591KG
Operation Environment	Temperature : 20°C~28°C Humidity : 40%~60%

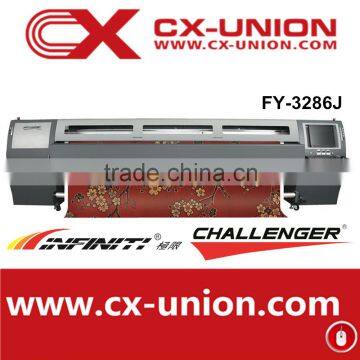

photo for reference:

This pictures were taken in our guangzhou warehouse . You are warmly welcomed to our warehouse check the quality and choose those you like . Any interest , please do not hesitate to contact us .

other product:

We supply all kinds of spare parts , including all kinds of brand main board , print head boards , ink tube ,print head ,ink,etc . Any intersting , please feel free to contact us .

How to order?

Step 1. Contact with me about the details and product you need.

Step 2. Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference.

Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination

Step 3. Send payment T/T in advance and notify us (send Bank Slip to us)

Step 4. We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.

Balance payment should be paid upon copy of B/L.On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.

Step 5. Confirm to us upon receipt of order.
