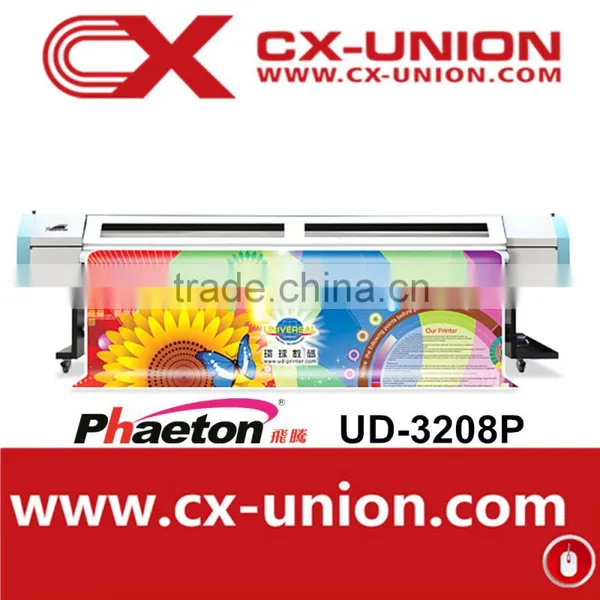

Pheaton UD-3208P
1. Equipped with 4 /6/8 SPT510 print heads
2.Full aluminum platform, high quality and long life.
3. Self-developed automatic cleaning and capping system which make the operation and maintenance convenient.
4. X,Y axis AC servo motors, which is stable and durable..
5. Bearing and rail with less noise, low resistance and no vibration.
6. 6 color printing,the quality output achieves 46 m2/hr
7. Individual color purging minmizes the waste of the ink
8. 3 way intelligent heater improve the printing quality
9. Adopt USB2.0 output system,which is faster and more flexible.
specification:
Model |
UD-3208P |
|
Printhead SII Printek Inc. |
SPT510-35PL |
|
Number of printhead |
8 Heads |
|
Maximum print width |
3,200mm |
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
D |
2 pass 76 |
|
S |
3 pass 51 |
|
Q |
4 pass 34 |
|
HQ |
4 pass 26 |
|
C |
- |
|
Ink |
Type |
Solvent Ink / ECO Solvent Ink |
Color |
6 Color (C,M,Y,K,Lc,Lm) |
|
Capacity |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply System |
|
Media Width |
Maximum 3,300mm
|
|
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning |
|
Pre-heating & Drying System |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB 2.0 |
|
Printhead Height |
2 to 6 mm from Media |
|
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
|
Input Power |
AC 220V, 50Hz/60Hz |
|
Machine Dimension / N.W |
L4, 500 x W905 x H1,260mm / 348KG |
|
Package Dimension / G.W |
L4, 590 x W1,050 x H890mm / 591KG |
|
Requirement |
Temperature:20°C-28°C Humidity:40%-60%
|
|
Photo for reference:

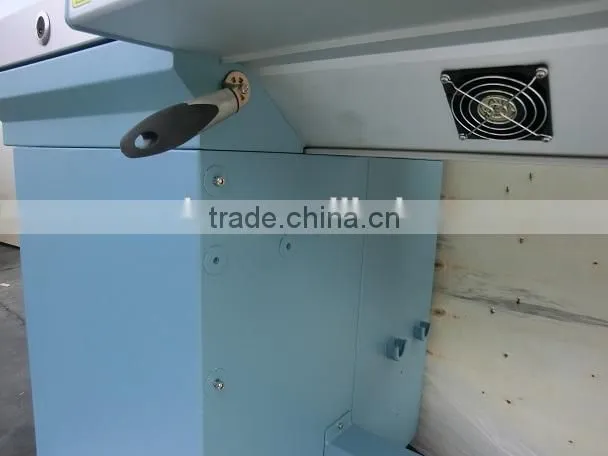

The front side of UD-3208p. Two emergncy swiths in the both left and right side . In the right size there are temperature control. Ensure printing safely and smoothly .

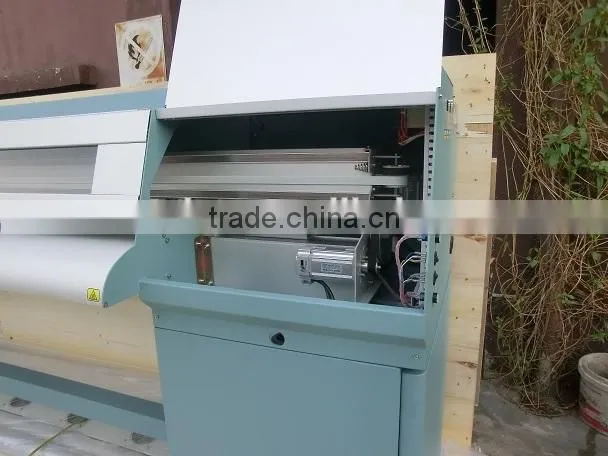

The right side of printer . Top quality X Y motor . Keep stable runing .

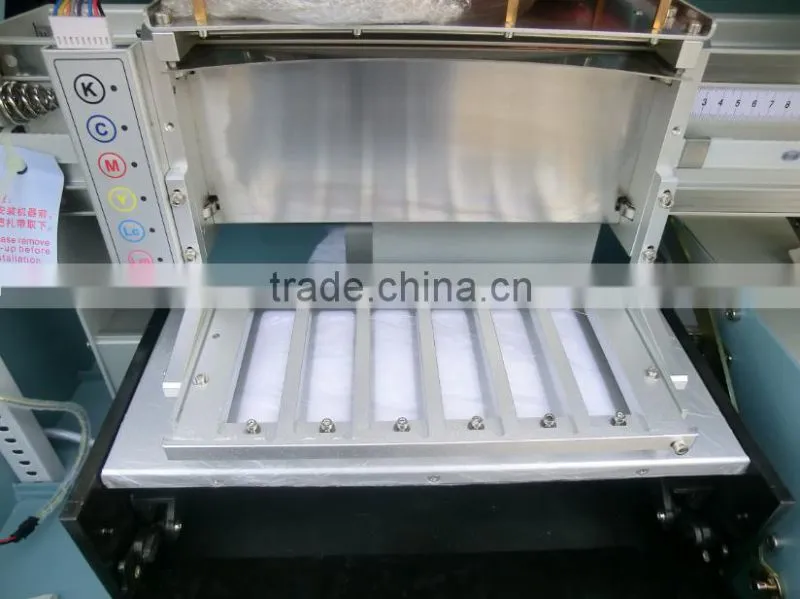

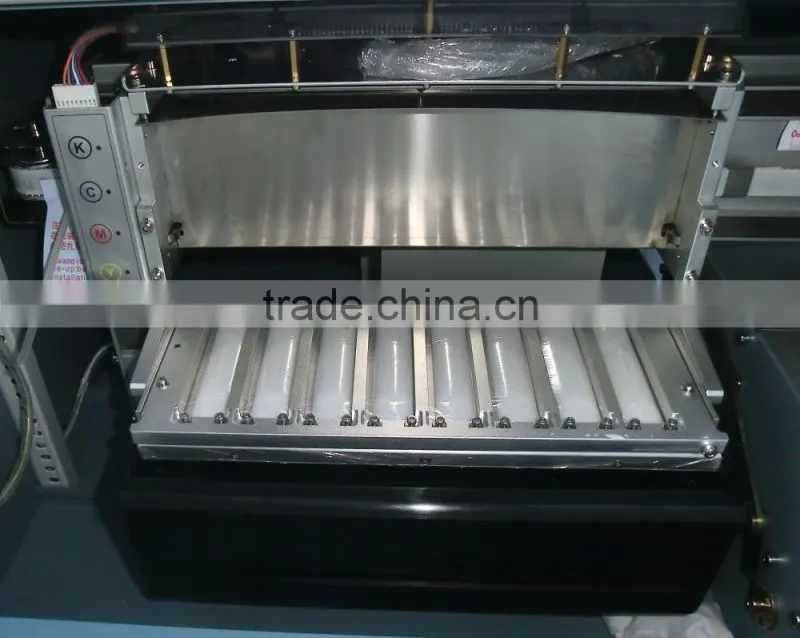

Right side of printer : Indvividual color cleaning system . Light of printer .

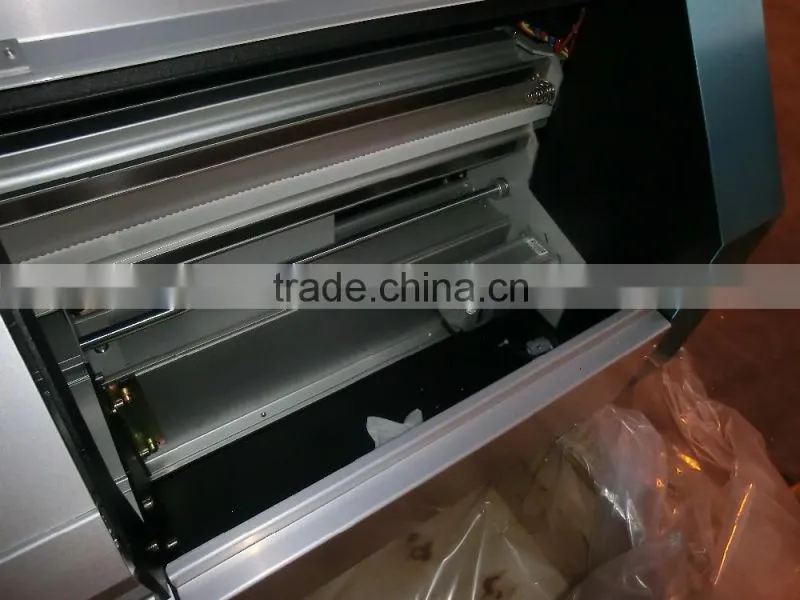

Print head position

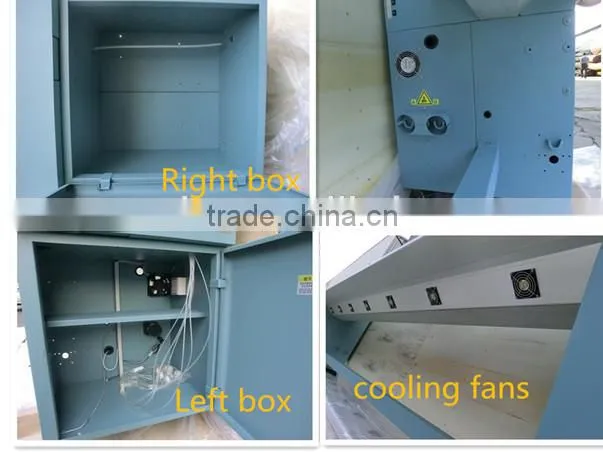

Inside looking of box .
Print head board

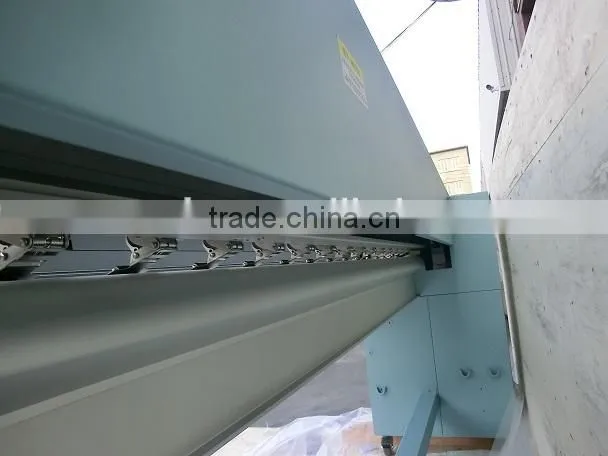

Good and strong flat table make sure the stable printing . 3 ways heating system to ensure the vivid color .
Back side of the printer

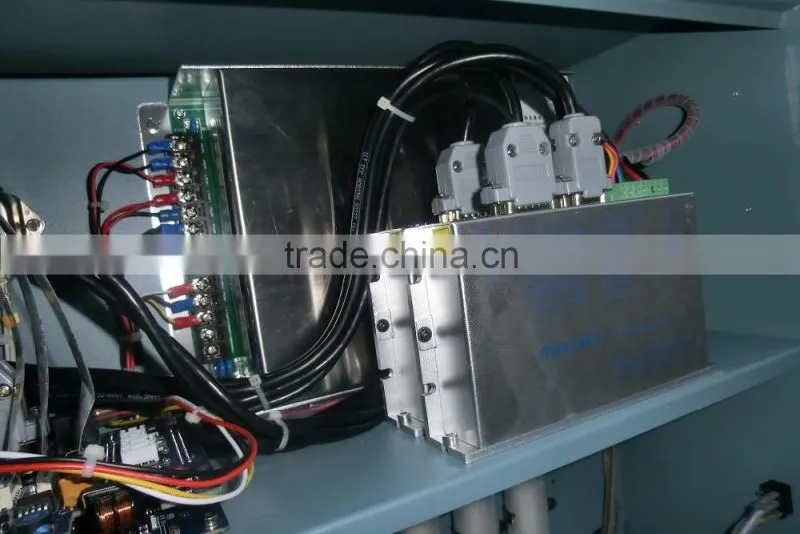

Inside looking of the printer box .
Machine always be packed in the safe wooden box to against damagad .
Printer should be strictly check by us before send out .
What is more , we will send the traking unmber to you after send out the machine , you can check the printer any where by internet . That will be more convenience and clear .
We always keep stcoking all kinds model of printer
other product:
We supply all kinds of spare parts , including all kinds of brand main board , print head boards , ink tube ,print head ,ink,etc . Any intersting , please feel free to contact us .
-
How to order?
Step 1. Contact with me about the details and product you need.
Step 2. Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference.
Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination
Step 3. Send payment T/T in advance and notify us (send Bank Slip to us)
Step 4. We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.
Balance payment should be paid upon copy of B/L.On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.
Step 5. Confirm to us upon receipt of order.
