Infiniti/Challenger stable printer UD-3278K
1,Low ink sensor, auto or manual ink supply system.
2, Double four color printing, vivid color & high speed .
3, X, Y axis AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is strong,flat and quiet.
Parametre list:
Model |
UD-3278K |
|
Printhead |
SPT 510/50pl |
|
Number of printhead |
4 or 8 heads |
|
Maximum print width |
3200mm |
|
Print Speed(m/h) |
Print Mode |
Standard Output(m/h) |
D |
2 pass 157 |
|
S |
3 pass 109 |
|
Q |
4 pass 85 |
|
HQ |
4 pass 70 |
|
BL |
6 pass 53 |
|
|
Ink
|
Type |
Solvent ink&ECO solvent ink |
Color |
Double 4 color(C,M,Y,K) |
|
Capacity |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink sensor ,Auto or Manual Ink Supply System |
|
Media |
Width |
Max. 3300m |
Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc |
|
Auto Media Feeding System |
Equipped(Max Media Weight 80kg) |
|
Auto Cleaning System | ||
|
Individual Positive Pressure Cleaning, Anti-clogged Flash Function&Capping System
| ||
Pre-heatig & Drying Sytem |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB2.0 |
|
Input Power |
L4786*W1000*H1350mm/685kg |
|
Machine Dimension |
L4980*W1400*H1640mm/968kg |
|
Package Dimension |
Temperature:20°C-28°C Humidity:40%-60% |
|
Pictures to reference:

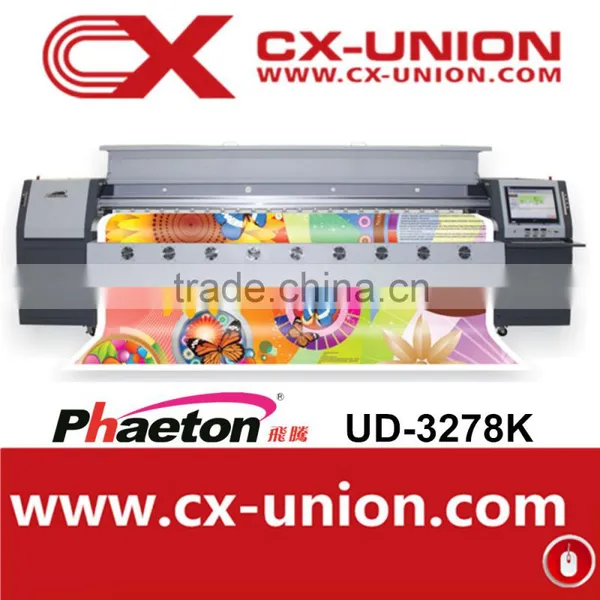

Front side of UD-3278K, with strong heavy body .
Cooling fan to keep the printing drying faster , make the picture more vivid and clear .
the wide table make in aluminium , keep printing stable and quiet.
The printer will come with the sofeware , and operate instruction book for you .
AC motor make the running fast and smoothly.
Place for outspent ink .
Inside of the printer box .
Temperature controller botton
Machine always be packed in the safe wooden box to against damage.
We keep stocking all kinds of model printers, you are warm welcomed to our whare house check machines in Guang zhou .
Other product:
We supply all kinds of spare parts , including all kinds of brand main board , print head boards , ink tube ,print head ,ink,etc . Any intersting , please feel free to contact us .
-
Technical support:
1. Any question we ensure to try our best to help you .By email ,video ,TEL, long-distance computer
control and so on. We company has the experts and professional skill team who have researched theprinter more than 10 years.Free training is available.
2. All kinds of original spare parts ensure the quality of printer machines.What is more,all the printers have one year warranty.During the warranty, if any problems of the parts , you can send us back to repair or exchange .
How to order?
Step 1. Contact with me about the details and product you need.
Step 2. Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference.
Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination
Step 3. Send payment T/T in advance and notify us (send Bank Slip to us)
Step 4. We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.
Balance payment should be paid upon copy of B/L.On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.
Step 5. Confirm to us upon receipt of order.
