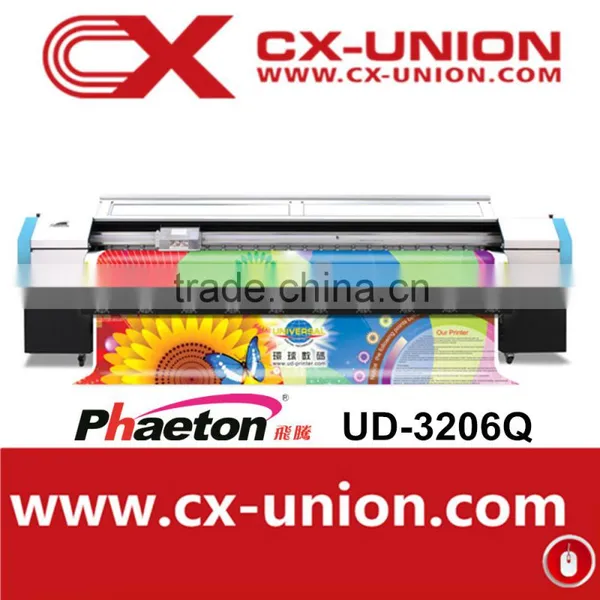

Phaeton stable printer model UD3206Q
1. Equipped with 6 SPT 510-35PL print heads.
2. vivid color & high speed .
3. Anti-Clogging Flash Function & Capping System
4. Individual color cleaning minimizes the waste of the ink;
5. 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6. The entire printing platform and the girder are made of the alloy-aluminum which is strong and flat.
parametre list:
Model |
UD-3206Q |
|
Printhead SII Printek Inc. |
SPT510-35PL |
|
Number of printhead |
6 Heads |
|
Maximum print width |
3,200mm |
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
D |
2 PASS 39 |
|
S |
3 PASS 27 |
|
Q |
4 PASS 18 |
|
HQ |
6 PASS 14 |
|
C |
- |
|
Ink |
Type |
Solvent Ink / ECO Solvent Ink |
Color |
6 Color (C,M,Y,K,Lc,Lm) |
|
Capacity |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply System |
|
Media Width |
Maximum 3,300mm |
|
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning |
|
Pre-heating & Drying System |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB 2.0 |
|
Printhead Height |
2 to 6 mm from Media |
|
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
|
Input Power |
AC 220V, 50Hz/60Hz |
|
Machine Dimension / N.W |
L4,500 x W905 x H1,260mm / 362KG |
|
Package Dimension / G.W |
L4,650 x W970 x H1,550mm / 582KG |
|
Requirement |
Temperature:20°C-28°C Humidity:40%-60%
|
|
Photo for reference:
The front side of UD-3206Q. Two emergncy swiths in the both left and right side. In the right size there are temperature control. Ensure printing safely and smoothly.

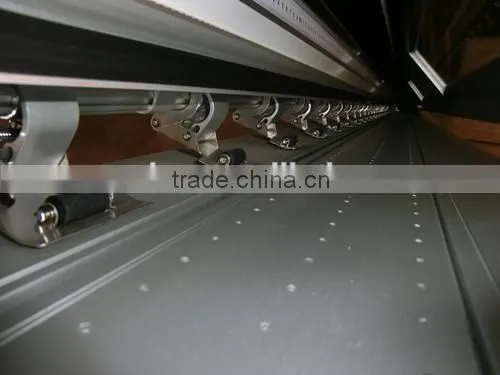

Full Alumium complete platform contains railroad stable and durable material,to optimize the accuracy of the feed material.

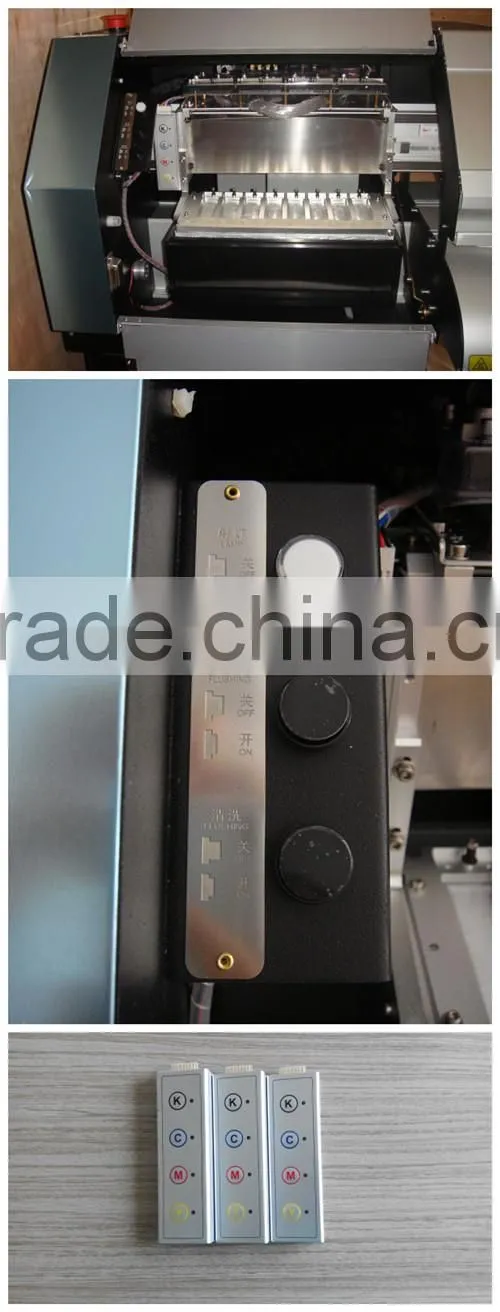

User-friendly&Individual positive pressure capping and cleaning system,easy for maintenance

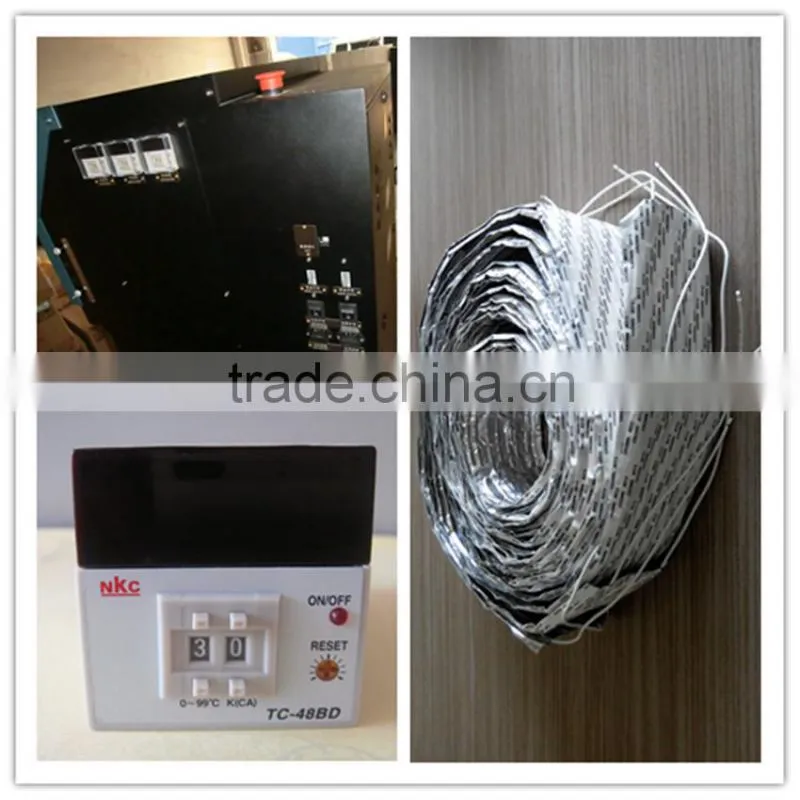

Three-way heaters,fast drying.

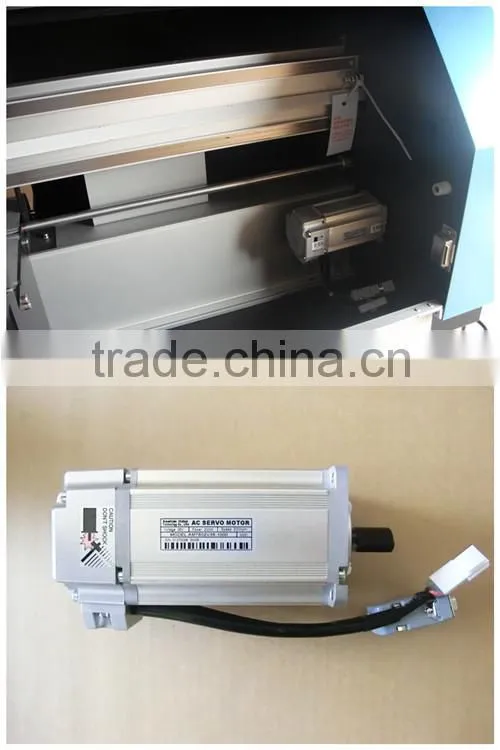

Special AC servo motors for mobility in X-Y for the shift in the printing area.

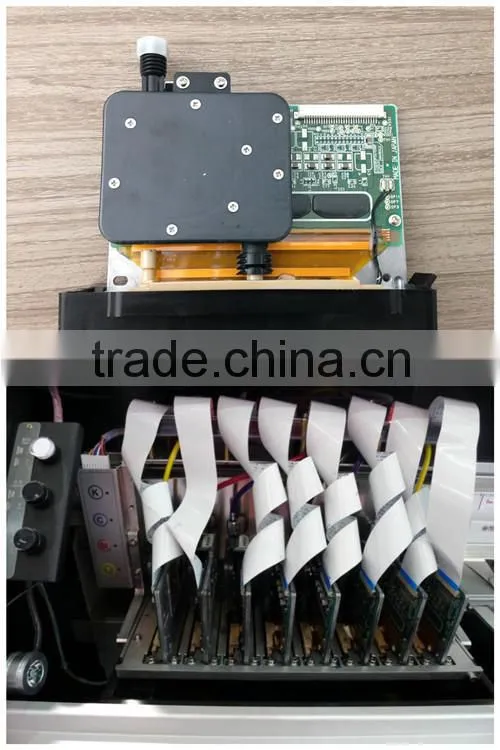

With PT 510 printhead,voltage adjustable!Avoiding printhead clogging under huge temperature change!

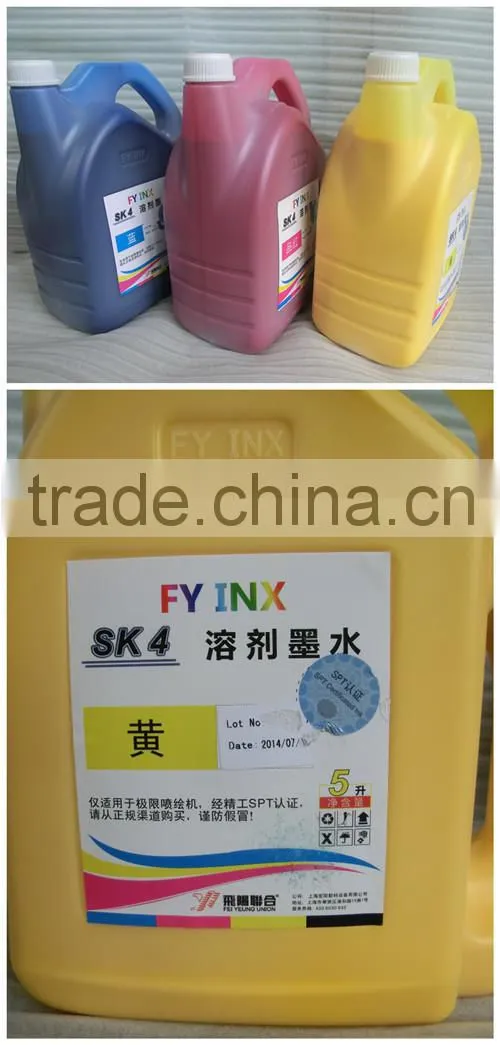

Original Infiniti SK-4 ink,vivid color,high climate-resistant and long durability,ensure the printing quality!

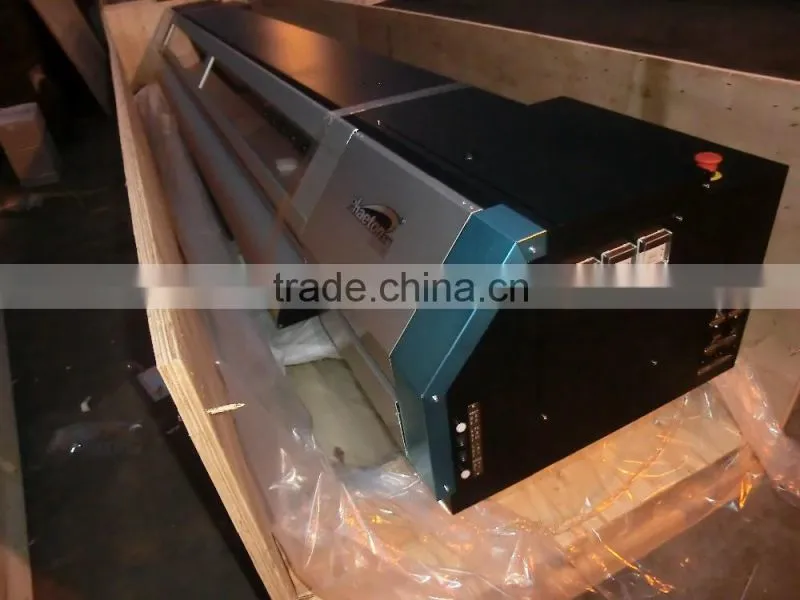

package: wooden package
Guarantee and after-sale service:
1. one year guarantee for whole machine except the printhead
2. 24 hours on line technology support
3. use friendly english spftware
4. use manual and detailed video
order guide, payment and delivery:
Technical support:
1. Any question we ensure to try our best to help you .By email ,video ,TEL, long-distance computer
control and so on . We company has the experts and professional skill team who have researched theprinter more than 10 years.
Free training is available.
2. All kinds of original spare parts ensure the quality of printer machines.
What is more,all the printers have one year warranty.During the warranty, if any problems of the parts , you can send us back to repair or exchange .
How to order?
Step 1. Contact with me about the details and product you need.
Step 2. Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference.
Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination
Step 3. Send payment T/T in advance and notify us (send Bank Slip to us)
Step 4. We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.
Balance payment should be paid upon copy of B/L.On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.
Step 5. Confirm to us upon receipt of order.
