Offset Printing Ink

Offset Printing Ink thumbnail-1
Offset Printing Ink photo-1
US$ 500 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
UV Ink
Printing Type:
Gravure Printing
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changzhou Longxin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type UV Ink
Printing Type Gravure Printing
Place of Origin Jiangsu, China
Brand Name Huabao

Specifications

1 Offset printing ink
2 for high viscosity materials
3 long life-cycle
4 high efficiency
5 CE ISO



Offset printing ink

1 Brief introduction

Three roll mill is the ideal grinding machine for paste materials, such as ink, paint, coating, pigment, cosmetic, electronic and so on.

The roll is molding centrifugally, casting by chilled-alloy steel (15-25mm, HS 68-75). The three rolls are cambered to match the grinding and prolong the working life. Different cambers satisfy the fineness and efficiency. For the common materials, the grinding times is depending on the original particle size and the hardness. The end particle is about 3-18 micron after grinding for one to more times.

2 The working principle

The three roll is composed of three horizontally positioned rolls rotating in opposite directions and at different speeds. The materials to be milled is placed between the feed and center rolls and gets transferred from the center roll to the apron roll by adhesion. Milled materials are scraped from the apron mill by a take-off knife. The cycle can be repeated to improve dispersion or until particle size equilibrium is reached. The shear forces between adjacent rolls generate the dispersion. Decreasing the distance between rolls produces greater shear but also reduces throughput.

The three roll mill is equipped the cooling water system in the rolls. It can adjust the flow of cooling water to change the temperature of roll, then to work continuously.

3 The structure

Three roll mill comes with steel housing, roll, shaft, shaft seating, bearing, hopper side plate, gear, belt wheel, water cooling system and so on. The roll gap is adjusted by hand-wheel or controlled by hydraulic system. The actual machine may vary depending on the configuration.

Offset printing ink

4 The type of three roll mill

A According the generation: Economics, Advanced, hydraulic controlled.

B According the material of roll: Alloy-steel roll, Ceramic roll (Alumina, Zirconia, Carborundum), Granite roll.

C According the product capacity: lab three roll mill, batch-produce three roll mill.



Model Φ (mm) Length (mm) Motor (KW) Speed Height of outlet G.W.(KG) L*W*H(mm)
LXDS-80 80 200 1.1 - - 115 720*410*470
LXDYS200 200 600 18.5/22 - - 1800 1350*1300*1000
LXYS150 150 300 3 26/61/141 620 520 950*950*1080
LXYS260 260 650 22 58/153/408 650 2000 1558*1280*1200
LXYS400 400 1300 55 32/128/450 690 5200 2650*1750*2295
LXSG6" 150 200 3 34/78/81 660 500 920*880*1150
LXSG9" 260 675 7.5 23/64/183 580 2000 1690*1330*1300
LXSG12" 305 760 11 15.5/47.4/142 650 3800 1655*1490*1400
LXSG16" 406 810 15 14/43/130 820 5300 2150*1795*1600
LSXG16"L 406 1000 22 14/43/130 820 5800 2350*1750*1600
LXS65 65 130 0.75 26/70/145 220 60 410*400*450
LXS150 150 300 2.2 34/78/181 530 500 830*830*930
LXS260 260 675 7.5 23/64/183 530 2100 1680*1320*1100
LXSM405 405 810 15 14/42/130 760 5200 1950*1900*1450
LXSM405L 405 1000 22 14/42/130 760 5800 2150*1900*1450
LXSH405 405 810 15 14/43/130 - 5200 -
LXJRS405 405 810 30-37 11/33/99 - 7500 -





5 Applications

Ink, paint, coating, ceramic, cosmetic, carbon, graphite, pharmaceutical, chemical, pigment, sealant, electronic paste, leather, chocolate, food, pencil, soap, guar gum, grease, etc.



 Offset printing ink



6.After Sales Service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

Payment terms:

30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.

Package:

Standard wooden Case Packing

Shipment terms:

We usually take FOB, but we can also accept EXW,CIF,CNF.

7. The workplace


Offset printing ink8 The quality controlling

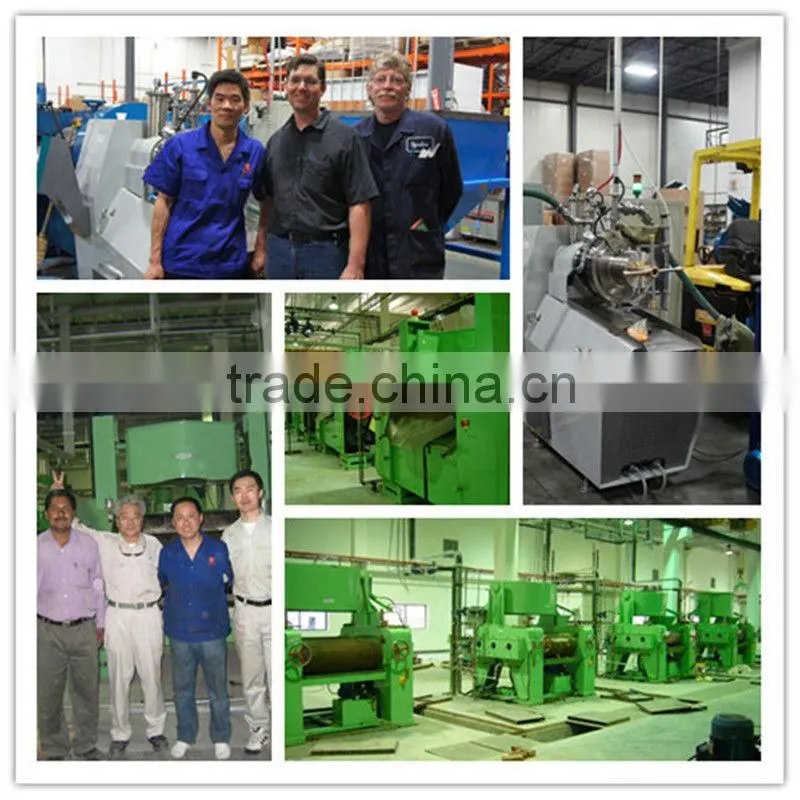

9 The Commission Abroad

Offset printing ink

10 Our Main clients

Offset printing ink

11 Our main Suppliers

Offset printing ink
