LXYS400-1300 hydraulic Three Roller Mill for UV ink

Specifications

1.LXYS400 hydraulic Three Roller mill for UV ink
2.Inner Cooling
3.Patent products
4.China Top Hydraulic roller mill factory

Longxin Hydraulic Three roller mill machine on sale

This machine adapts three rollers grinder controlled by hydraulic pressure from double-impeller pump.

The basic work of machinesuch as feeding, discharging and size of material is controlled by hydraulic pressure.

It features high automatization content,convenient to operate and safe in use.

Because the hydraulic system adapts plate type structure, its arrangement is more reasonable.

The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property.

 It is an idealequipment to grind high quality paste material.Siemens PLC is used for control, analogous drawing and touch screen are available (optional).

Specifications



Model		YS260	YS400-800	YS400-1000	YS400-1300
Roller diameter (mm)		260	400	400	400
Length of roller working surface (mm)		650	800	1000	1300
Distance from discharg hole to ground (mm)		650	690	690	690
Roll rotating speed	Low speed roll	58	32	32	32
	Medium speed roll	153	128	128	128
	High speed roll	408	408	408	408
Main motor power (KW)		22	37	37	45
Tptsl pressure of hydraulic system (Mpa)		6.3	6.3*2	6.3*2	6.3*2
Pressure power (KW)		1.5	1.5*2	1.5*2	1.5*2
Machine weight (kg)		2000	3000	3800	4200
Overall dimension LxWxH (mm)		1558x1280x1200	1900x1500x1500	2100x1500x1500	2300x1500x1500
Packing dimension LxWxH (mm)		1800x1400x1700	2100x1600x1700	2300x1600x1700	2500x1600x1700

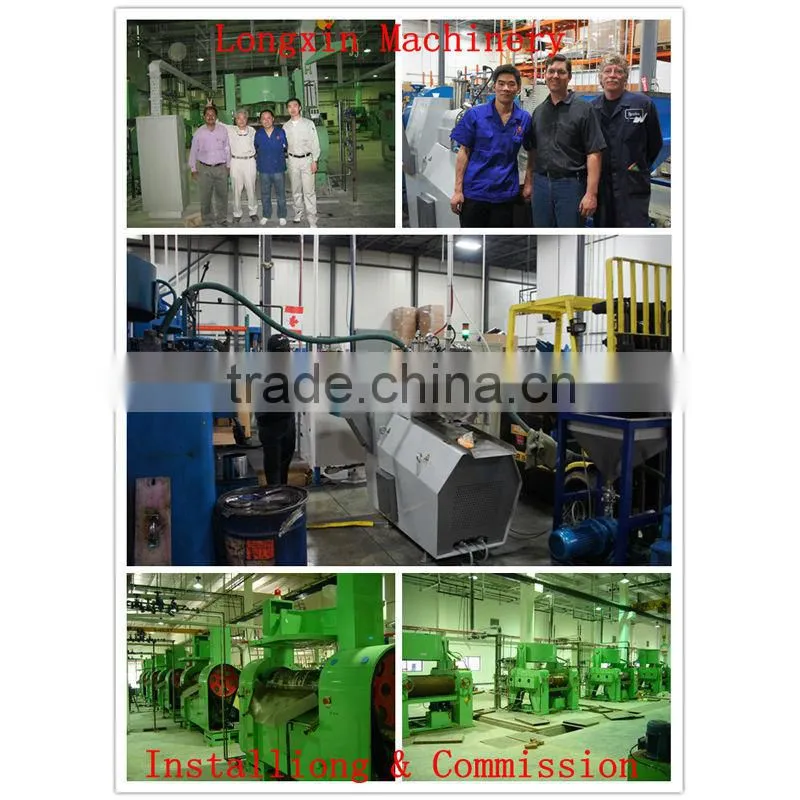

After Sales Service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

Payment terms:

30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.

Package:

Standard wooden Case Packing

Shipment terms:

We usually take FOB, but we can also accept EXW,CIF,CNF.
