Gear for three roller grinder
- 20 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Tooth Profile: | Helical Gear | Material: | Iron |
Processing: | Forging | Place of Origin: | Jiangsu, China | Brand Name: | Huabao |
Product Description
Specifications
Gear for three roller grinderFor paint, ink,pigment, plastic, soap
High efficiency
Lower consumption
CE
Gear for three roller grinder
Tri-rollers grinder
1 Brief introduction
Three roll mill is the ideal grinding machine for paste materials, such as ink, paint, coating, pigment, cosmetic, electronic and so on.
The roll is molding centrifugally, casting by chilled-alloy steel (15-25mm, HS 68-75). The three rolls are cambered to match the grinding and prolong the working life. Different cambers satisfy the fineness and efficiency. For the common materials, the grinding times is depending on the original particle size and the hardness. The end particle is about 3-18 micron after grinding for one to more times.
2 The working principle
The three roll is composed of three horizontally positioned rolls rotating in opposite directions and at different speeds. The materials to be milled is placed between the feed and center rolls and gets transferred from the center roll to the apron roll by adhesion. Milled materials are scraped from the apron mill by a take-off knife. The cycle can be repeated to improve dispersion or until particle size equilibrium is reached. The shear forces between adjacent rolls generate the dispersion. Decreasing the distance between rolls produces greater shear but also reduces throughput.
The three roll mill is equipped the cooling water system in the rolls. It can adjust the flow of cooling water to change the temperature of roll, then to work continuously.
3 The structure
Three roll mills comes with steel housing, roll, shaft, shaft seating, bearing, hopper side plate, gear, belt wheel, water cooling system and so on. The roll gap is adjusted by hand-wheel or controlled by hydraulic system. The actual machine may vary depending on the configuration.
Model | Φ (mm) | Length (mm) | Motor (KW) | Speed | Height of outlet | G.W.(KG) | L*W*H(mm) |
LXDS-80 | 80 | 200 | 1.1 | - | - | 115 | 720*410*470 |
LXDYS200 | 200 | 600 | 18.5/22 | - | - | 1800 | 1350*1300*1000 |
LXYS150 | 150 | 300 | 3 | 26/61/141 | 620 | 520 | 950*950*1080 |
LXYS260 | 260 | 650 | 22 | 58/153/408 | 650 | 2000 | 1558*1280*1200 |
LXYS400 | 400 | 1300 | 55 | 32/128/450 | 690 | 5200 | 2650*1750*2295 |
LXSG6" | 150 | 200 | 3 | 34/78/81 | 660 | 500 | 920*880*1150 |
LXSG9" | 260 | 675 | 7.5 | 23/64/183 | 580 | 2000 | 1690*1330*1300 |
LXSG12" | 305 | 760 | 11 | 15.5/47.4/142 | 650 | 3800 | 1655*1490*1400 |
LXSG16" | 406 | 810 | 15 | 14/43/130 | 820 | 5300 | 2150*1795*1600 |
LSXG16"L | 406 | 1000 | 22 | 14/43/130 | 820 | 5800 | 2350*1750*1600 |
LXS65 | 65 | 130 | 0.75 | 26/70/145 | 220 | 60 | 410*400*450 |
LXS150 | 150 | 300 | 2.2 | 34/78/181 | 530 | 500 | 830*830*930 |
LXS260 | 260 | 675 | 7.5 | 23/64/183 | 530 | 2100 | 1680*1320*1100 |
LXSM405 | 405 | 810 | 15 | 14/42/130 | 760 | 5200 | 1950*1900*1450 |
LXSM405L | 405 | 1000 | 22 | 14/42/130 | 760 | 5800 | 2150*1900*1450 |
LXSH405 | 405 | 810 | 15 | 14/43/130 | - | 5200 | - |
LXJRS405 | 405 | 810 | 30-37 | 11/33/99 | - | 7500 | - |
4 The type of three roll mill
According the generation: Economics, Advanced, hydraulic controlled.
According the material of roll: Alloy-steel roll, Ceramic roll (Alumina, Zirconia, Carborundum), Granite roll.
According the product capacity: lab three roll mill, batch-produce three roll mill.
5 Applications
Ink, paint, coating, ceramic, cosmetic, carbon, graphite, pharmaceutical, chemical, pigment, sealant, electronic paste, leather, chocolate, food, pencil, soap, guar gum, grease, etc.
6 After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
7 Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
8 Packages:
Standard wooden Case Packing
9 Shipment terms:
We usually take FOB, but we can also accept EXW, CIF, CNF.

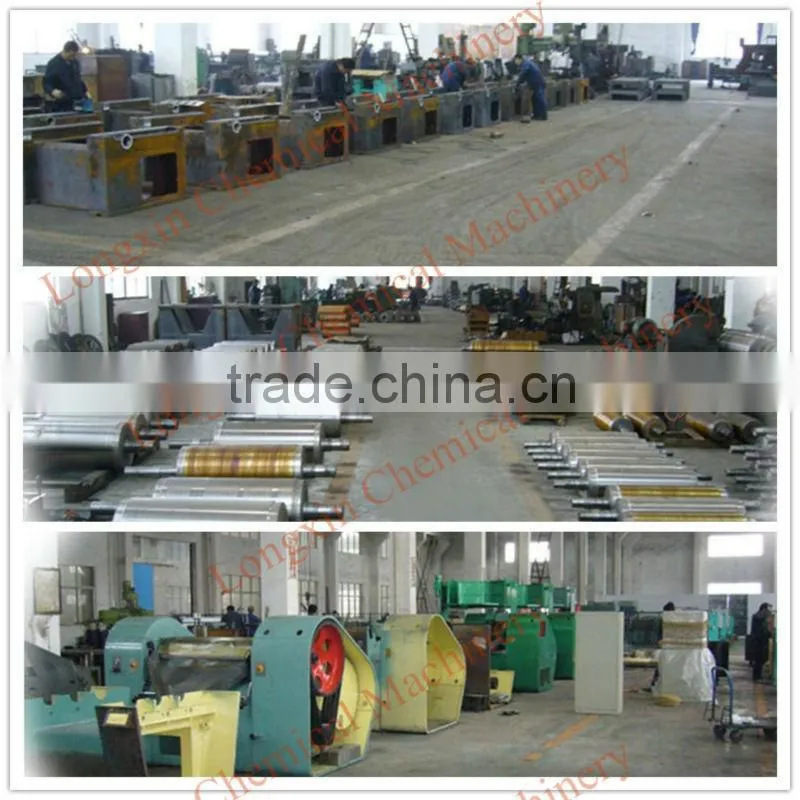

11 Work place

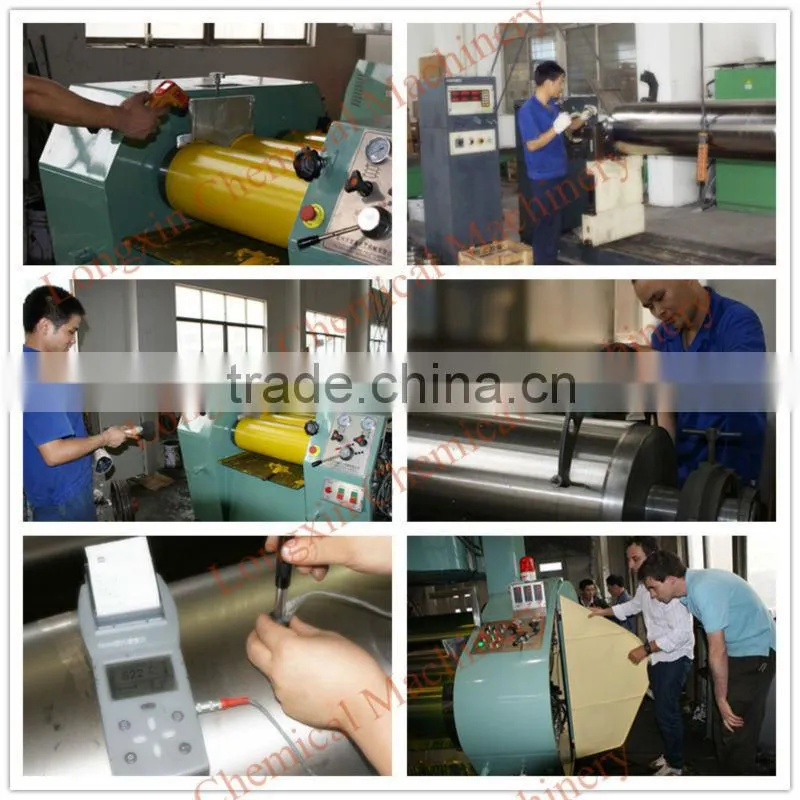

12 Quality control

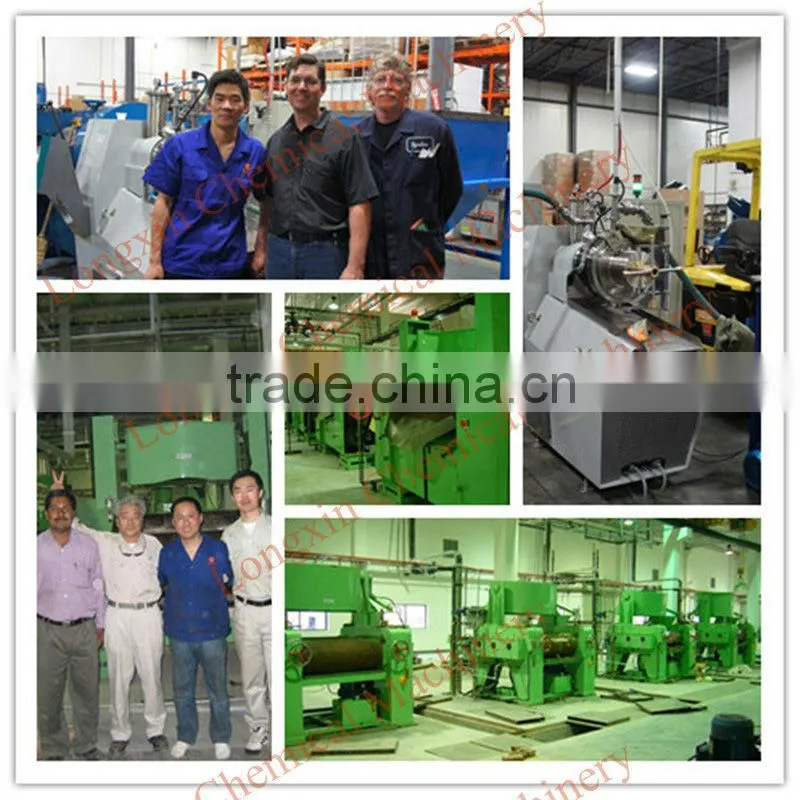

13 Commission abroad
14 Main Clients
15 Our supplier
16 Our Certification on wall

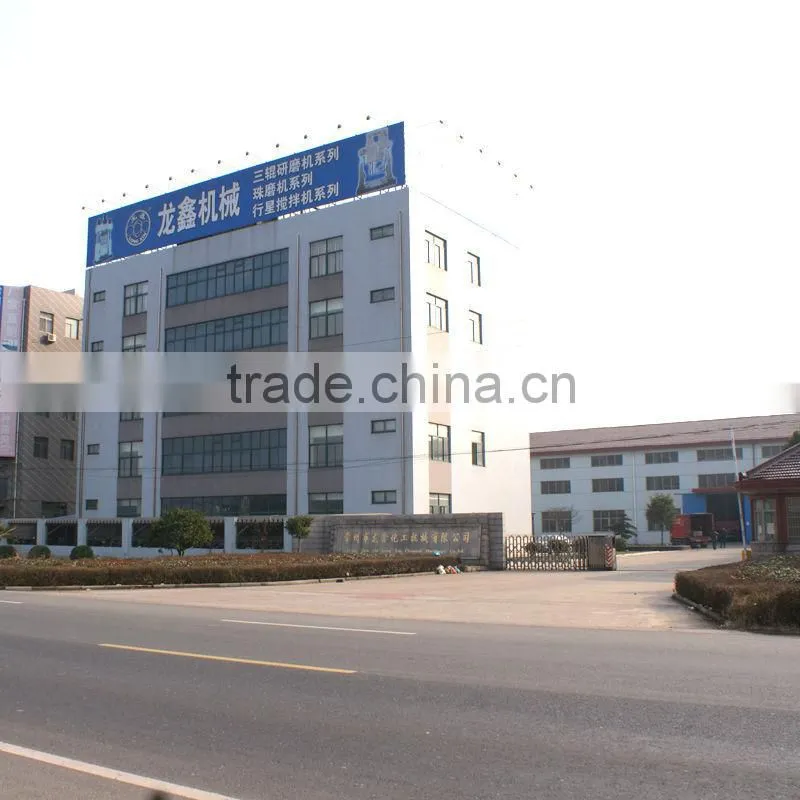

17 Our Office
18 Certification
19 Thank you to visit our show.
