Home > Products > YSH Vertical Delta Hydraulic Three Roll Mill > YS400-800 ink making machine with hydraulic

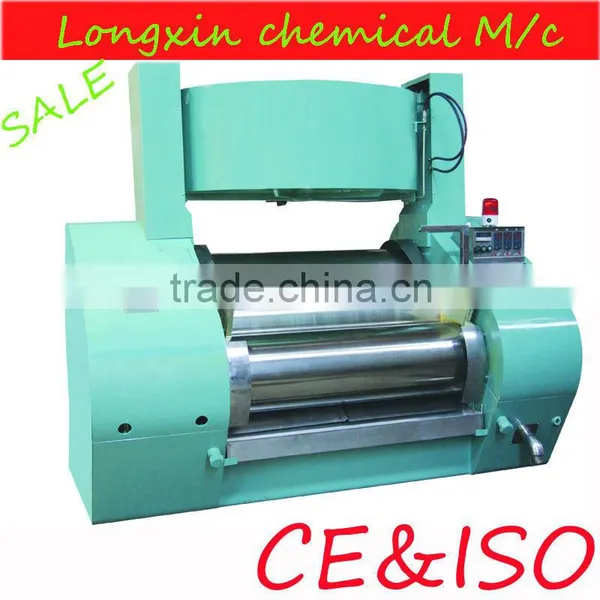

YS400-800 ink making machine with hydraulic
- 20 Set / Sets per Month
- Shanghai
- T/T L/C
Product Details
Condition: | New | Product Type: | Paint | Place of Origin: | Jiangsu, China |
Brand Name: | Hua Bao | Model Number: | YS400 | Voltage: | 110V 220V 380V |
Power(W): | 55KW | Dimension(L*W*H): | 2650*1750*2295 | Certification: | CE ISO9001:2000 |
Warranty: | 1 year, 1~10years | After-sales Service Provided: | Engineers available to service machinery overseas | Application: | Other, Pasty ink, liquid ink, paint, electronic & others |
Product Description
Specifications
Ink making machine with hydraulic1:Warranty:1 year
2:life-long maintance
3:CE&ISO&SGS
4:Chocolate,paint,pigment is ok
YS400-800 ink making machine with hydraulic
1.Brief introduction:
This machine adapts three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machinesuch as feeding, discharging and size of material is controlled by hydraulic pressure. It features high automatization content,convenient to operate and safe in use. Because the hydraulic system adapts plate type structure, its arrangement is more reasonable.The roller is cast by special alloy, its strength is high and its surface has high hardness and wear resistance property. It is an idealequipment to grind high quality paste material.Siemens PLC is used for control, analogous drawing and touch screen are available (optional).
2.The parameters of hydraulic three roller mills
Model | YS400 | YS315 | YS260 | YS150 | |
Roller diameter(mm) | 400 | 315 | 260 | 150 | |
Roll working length(mm) | 1300 | 900 | 650 | 300 | |
Height of outlet (mm) | 690 | 690 | 650 | 620 | |
Roll rotating speed | Low speed roll | 32 | 51 | 58 | 26 |
Medium speed roll | 128 | 154 | 153 | 61 | |
High speed roll | 400-450 | 460 | 408 | 141 | |
Main motor power (KW) | 55 | 30-37 | 22 | 3 | |
Total pressure of hydraulic system (Mpa) | 6.3*2 | 6.3 | 6.3 | 6.3 | |
Pressure power (KW) | 1.5*2 | 1.5 | 1.5 | 0.375 | |
Machine weight (kg) | 5200 | 3200 | 2000 | 520 | |
Overall dimension (mm) | 2650*1750*2295 | 2050*1360*1500 | 1558*1280*1200 | 950*950*1080 | |
Packing size (mm) | 2800*1900*1900 | 2200*1600*1800 | 1800*1400*1700 | 1100*1100*1400 |
3.After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
4.Payment terms
30% deposit, 70% balance before shipment.
T/T,L/C,West Union,etc.
5.Package
Standard wooden Case Packing
6.Shipment terms
FOB Shanghai,FOB Nanjing, FOB Guangzhou, FOB Shenzhen,EXW,CIF,CNF,etc.
