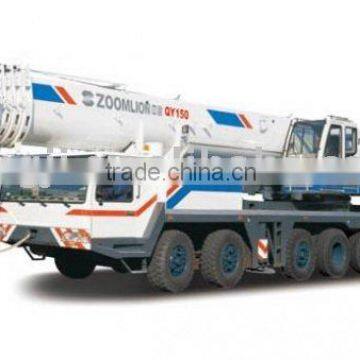

Truck Crane/mobile Crane/crane

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Model Number:

QY150V

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Model Number QY150V

Specifications

mobile crane/truck crane owns spacious cab, full slewing system, telescopic boom, electro-hydraulic control system

Technical parameters

Item			Specification	Remarks
Working performance	Max. rated lifting capacity (kg)		150000
	Max. lifting torque of basic boom (kN.m)		5292	Radius: 6m
	Max. lifting torque of Max. length boom (kN.m)		2264	Radius: 22m
	Max. lifting height of basic boom (m)		13.5
	Max. lifting height of boom (m)		60	The specifications do not include deflection of boom and jib. The specification in the brackets includes the length of extension.
	Max. lifting height of jib (m)		78.4 / (86)
Working speeds	Max. hoist rope speed (Main winch) (m/min)		110	Drum 5^th layer
	Max. hoist rope speed (Auxiliary winch) (m/min)		75	Drum 3^rd layer
	Boom derricking time (s)		78
	Boom extending time (min)		12
	Max. slewing speed (r/min)		1.5
Traveling specifications	Max. traveling speed (km/h)		72
	Max. grade-ability %		40
	Min. turning radius (m)		23
	Min. ground clearance (mm)		280
	Limit for exhaust pollutants and smoke		Conform to related standards.
	Oil consumption per hundred kilometers (L)		80
Weights	Self weight in traveling condition (kg)		54900
	Complete vehicle kerb mass (kg)		54705
	Axle load (axle 1, 2, 3) (kg)		8700/8700/8700/
	Axle load (axle 4,5,6) (kg)		208002 axles/8000
Dimensions	Overall dimensions(L×W×H) (mm)		14950×3000×3950
	Longitudinal distance between outriggers (m)		7.04
	Transversal distance between outriggers (m)		8.5Fully extended, 6.5Half extended
	Boom length (m)		13~59
	Boom angle°		-1.582
	Jib length (m)		11 18.6
	Offset°		0 30
Chassis	Model		ZLJ5663	Code: ZLJ5663V3
	Type		II
	Engine	Model	OM502LA
		Rated power (kW/r/min)	390/1800
		Max. torque (N.m/r/min)	2400/1080
	Manufacturer		Zoomlion
