Specifications

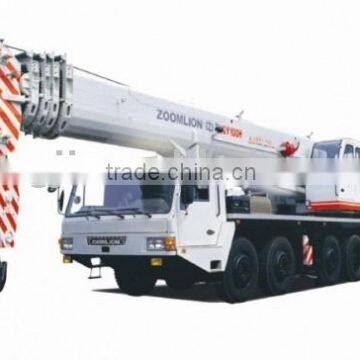

ZOOMLION truck crane: great engine and great performance.Main Technical Specifications
Item | Value | Remarks | ||
Working performance specification | Max. rated total lifting capacity kg | 100000 |
| |
Max. load moment of basic boom kN.m | 3430 | 3528 (with movable counterweight) | ||
Max. load moment with max. main boom length kN.m | 1756 | 1876 (with movable counterweight) | ||
Max. lifting height of basic boom m | 13.9 |
| ||
Max. lifting height of main boom m | 50.9 | Deformation of boom is not taken into consideration. | ||
Max. lifting height of fly jib m | 69.3 | |||
Working speed | Max. speed of single rope on main winch m/min | 134 | The 4th layer of drum | |
Max. speed of single rope on auxiliary winch m/min | 134 | The 4th layer of drum | ||
Derricking time of boom s | 50 |
| ||
Telescopic time of boom s | 90 |
| ||
Slewing speed r/min | 0∼1.5 |
| ||
Traveling specification | Max. traveling speed km/h | 75 |
| |
Max. gradeability % | 32 |
| ||
Min. turning circle diameter m | 24 |
| ||
Min. ground clearance mm | 290 |
| ||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691 -2005 (Stage III) | ||
Oil consumption per hundred kilometers L | 80 |
| ||
Mass specification | Deadweight of crane in traveling condition kg | 54000 |
| |
Complete vehicle kerb mass kg | 53805 |
| ||
Front axle load kg | 27000 |
| ||
Rear axle load kg | 27000 |
| ||
Dimension specification | Overall dimensions(L×W×H) mm | 15300×3000×3920 |
| |
Base on outriggers m | 6.74 |
| ||
Distance between outriggers m | 7.80 |
| ||
Main boom length m | 13.0∼50.4 |
| ||
Main boom angle ° | -2∼80 |
| ||
Fly jib length m | 10.8, 18.5 |
| ||
Offset angle of fly jib ° | 0, 30 |
| ||
Chassis | Model | ZLJ5540 |
| |
Class | II |
| ||
Engine | Model | OM502LA | EU III emission standard | |
OM502LA.E3A/4 | T3 emission standard | |||
Rated power kW/r/min | 390/1800 |
| ||
Max. output torque N.m/r/min | 2400/1080 |
| ||
Manufacturer | Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd. | |||
Superstructure engine | Model | OM906LA.E2/5 | EU III emission standard | |
OM906LA.E3A/4 | T3 emission standard | |||
Rated power kW/r/min | 150/2200 |
| ||
Max. output torque N.m/r/min | 750/1200∼1600 |
| ||
