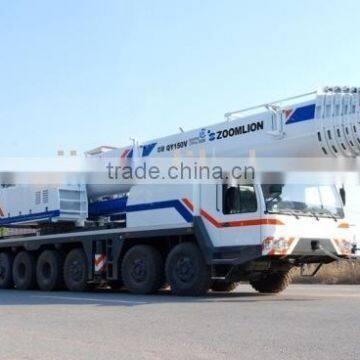

Help CenterTruck Crane(brand New 130t Truck Crane,12x6 Truck Crane, QY130 Mobile Crane)
Related Products
-
Truck Crane/mobile Crane/craneNegotiableMOQ: 1 Set -
QAY300 XCMG All Terrain Crane/mobile Crane/truck CraneNegotiableMOQ: 1 Set
-
QY50K-II XCMG 50 Tons Hydraulic Truck CraneNegotiableMOQ: 1 Set
-
Crane(brand New 100t Truck Crane,12x6 Truck Crane, QY100 Mobile Crane)NegotiableMOQ: 1 Set
-
Truck Crane/mobile Crane/craneNegotiableMOQ: 1 Set
Specifications
Capacity:130tons ( brand new truck crane)Drive style:12x6
Boom length:13.0~48m
Jib length:10,17m
Emission: Euro III
Capacity: 130tons (brand new truck crane)
Drive style: 12x6
Boom length: 13.048m
Jib length: 10, 17m
Main Technical Specifications
Item | Value | Remarks | ||
Working performance specification | Max. rated total lifting capacity kg | 130000 | ||
Max. load moment of basic boom kN.m | 4980 | when the working radius is 6m | ||
Max. lifting height of basic boom m | 13 | |||
Max. lifting height of main boom m | 49.5 | Deformation of boom is not taken into consideration. The value in the bracket indicates the crane with extension boom. | ||
Max. lifting height of fly jib m | 66(73) | |||
Working speed | Max. speed of single rope on main winch m/min | 115 | The 4th layer of drum | |
Max. speed of single rope on auxiliary winch m/min | 115 | The 4th layer of drum | ||
Derricking time of boom s | 90 | |||
Telescopic time of boom s | 150 | |||
Slewing speed r/min | 01.5 | |||
Traveling specification | Max. traveling speed km/h | 72 | ||
Max. gradeability % | 40 | |||
Min. turning circle diameter m | 24 | |||
Min. ground clearance mm | 258 | |||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691-2005 (Stage) | ||
Oil consumption per hundred kilometers L | 80 | |||
Mass specification | Deadweight of crane in traveling condition kg | 7000050195 | The value in the bracket indicates advertised specification. | |
Complete vehicle kerb mass kg | 6980550000 | The value in the bracket indicates advertised specification. | ||
Front axle load kg | 31000 | Including boom | ||
Intermediate and rear axles load kg | 39000 | Including boom | ||
Dimension specification | Overall dimensions(L×W×H) mm
| 14300×3100×3750 | Advertised specification (excluding boom) | |
16165×3100×3818 | Including boom | |||
Base on outriggers m | 7.04 | |||
Distance between outriggers m | 8.5 (full extended) 5.6 (half extended) | |||
Main boom length m | 1348 | |||
Main boom angle ° | -280 | |||
Fly jib length m | 10,17 | |||
Extension boom + fly jib m | 7.5, 24 | Extension boom is available as options. | ||
Offset angle of fly jib ° | 0, 15, 30 | |||
Chassis | Model | ZLJ5700 | Feature No.:ZLJ5700H3 | |
Class | II | |||
Engine | Model | OM502LA | ||
Rated power KW/r/min | 390/1800 | |||
Max. output torque N.m/r/min | 2400/1080 | |||
Further information, please feel free to contact with us, we will offer our best services.
Fax: +86-021-54171572
Tel: +86-021-54171571 (9AM to 6PM Beijing Time)
