Help CenterSM-8550 PCB Cleaning Equipment Misprint PCB Cleaner
Related Products
-
Automatic Tooling and Fixtures Cleaning MachineNegotiableMOQ: 1 Set -
Clean Silk Screen Cleaning MachineNegotiableMOQ: 1 Set
-
High Pressure Spraying Cleaning MachineNegotiableMOQ: 1 Set
-
SMT Stencil Cleaning MachineUS$ 28,000 - 38,000MOQ: 1 Set
-
Assembly PCB Cleaning SystemUS$ 1 - 1.01MOQ: 1 Set
Specifications
1.pcb cleaning machine2. more clean
3.high efficiency
4. enery save , re-cycle working

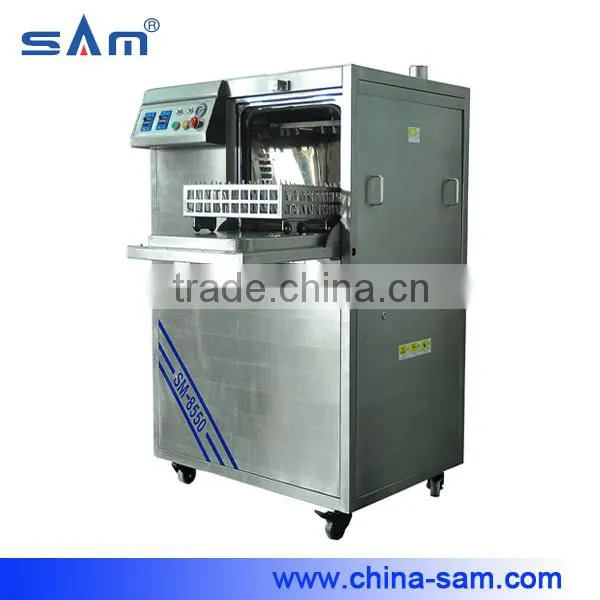

SM-8550 PCB Surface cleaning machine
Features
1) Comprehensive cleaning: For PCBA product residues on the surface of a thorough cleaning
2) Automatic cleaning mode: Cleaning , drying at the clean room , small size, Compact structure,
3) Cleaning capacity :450mm(L)*450mm(W)*100mm(H) ,can customized non-standard large products size and high cleaning capacity.
4) The most scientific spraying trajectory design: nozzle use left-right incremental type, up and down dislocation type distribution, and cleaning area of nozzle flow calculation by calculation and arrangement, tataly solve the blind clean area problem
5) Simple operation interface: the push button operation is stable and reliable, one-click operation more humanized operation simple and clear
6) Sustainability: adopt two class filter to ensure the cleaning effect and stability
7) Spray chamber structure, double seal design spray room, to ensure good sealing effect
8) Security: the whole machine adopts compressed air as power, without any security hidden danger
Specification
Cleaning size |
450mm(L)*450mm(W)*100mm(H) |
| Tank capacity |
55L |
| Cleaning mothod |
360°rotary |
| Cleaning time |
5-30min(reference) |
| Drying time |
10-30min (reference) |
| Cleaning fluid recycling |
0.45μm (Micro filter :solder paste,rosin,soldering flux,pollutant), two class filter |
| DI water supply |
30~60L/min |
| DI water pressure |
less than 0.4Mpa |
| DI water in and out connecting pipe size |
1 inch |
| Air supply |
0.45Mpa~ 0.7Mpa |
| Air consumption |
150-350L/Min |
| Net weight |
200Kg |
| Air outlet size |
Φ75(W)×30mm(H) |
| Dimension |
1100mm(L)*950mm(W)*1600mm(H) |
Machine construction

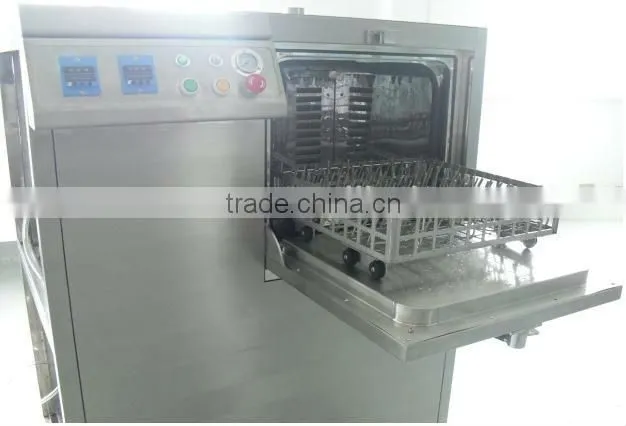

Panel button operation, one key simplicity more human

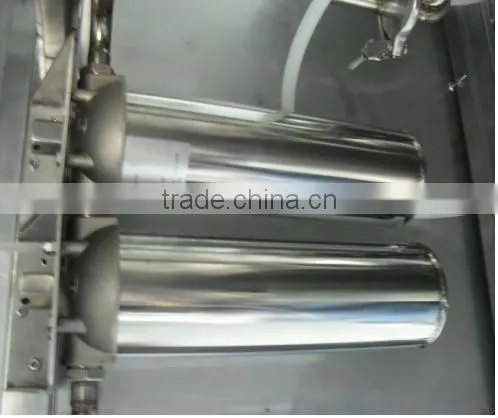

Two filter cleaning, to ensure the cleaning effect

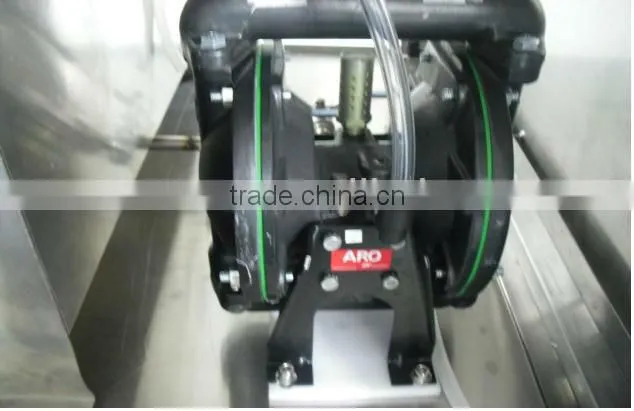

Use pneumatic booster diaphragm pump spray, no potential safety hazard
Cleaning effect
