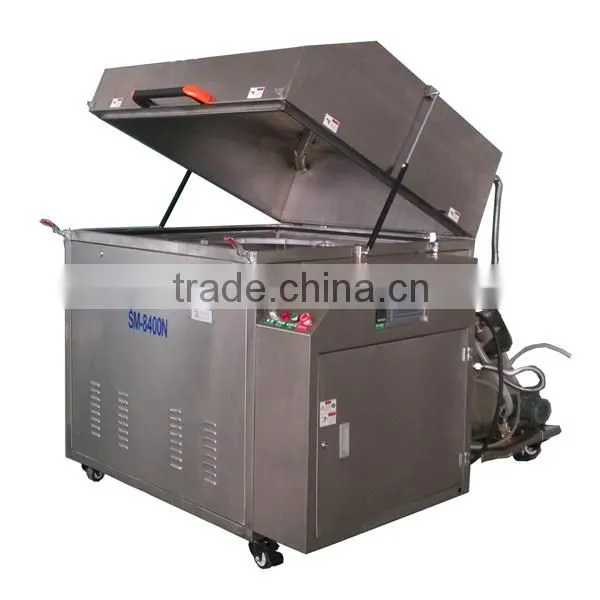

high pressure spraying cleaning machine
- 0 per Month
- Shenzhen
- T/T L/C D/P D/A
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | SAM |
Model Number: | SM-8400N | Feature: | Critical Cleaning / Residue Free | Certification: | CE |
Use: | Other, Cleaning jig and fixtures | Cleaning Process: | Solvent Cleaning | Cleaning Type: | High Pressure Cleaner |
Industry Used: | Electronic Industry | Material: | Metal / Coil | Power(W): | 27KW |
Dimension(L*W*H): | 2000*1500*1600mm | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
High pressure spray clenaing and rinsing .With large flow fan hot air drying technology
Introduction
The equipment is suitable for all kinds of the outer surface of the workpiece cleaning, such as wave soldering jig, reflow soldering tray, condenser cleaning, printing scraper, machine parts surface flux, clean oil, dust etc. Integrated use of artifacts in the rotating basket by high pressure spray cleaning, high pressure spray rinse, high-pressure wind shear and large flow fan hot air drying technology, guarantee the cleaning effect.
Features
1.One button operation ,Automatic completes the whole cleaning process,Auo add and discharge clean and rinse liquid .
2.Intergrate the function of cleaning,rinsing and drying ,
3.Tooling & fixtures cleaned can be used directlu next process , the cleaningperfoemance is perfect .
4.Spray pressure adjustably ,cleaning in 720 degree directions no blind angle .
5.High loading capacity ,saving labor
6.High -performance rinsing and liquid circulating filtration system ,cleaning spray system in the airtight chamber ,and keep the cleaning agent life longer ,save cost.
7.Equipments running with low energy consumption, low noise, no pollution, energy save and environmental protection, the whole structure with stainless steel .
Specification
Model | SM-8400N
|
Dimention | 2000*1500*1600mm
|
Clean Basket diameter | 1000mm
|
Parst Max height | 480mm
|
Basket loading | 100 KG
|
Spraying pressure | 5-8 KG
|
Power | 27KW
|
Volt/Freq | 380V/50HZ
|
Recommend clean agent | Water-based clean agent
|
Cleaning process

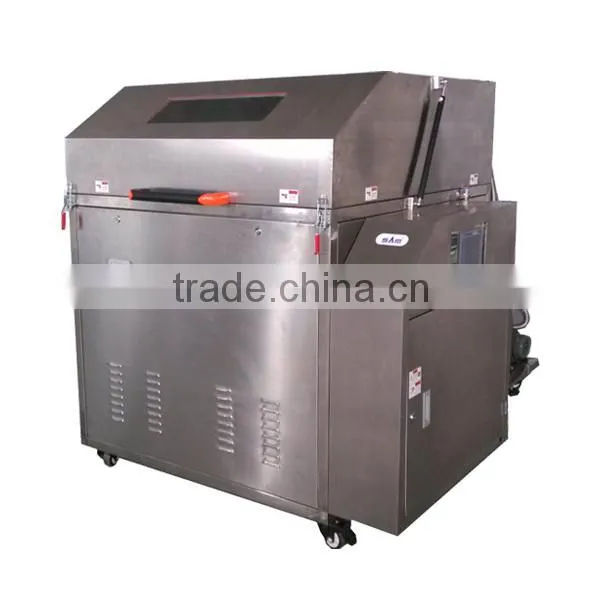

Other pictures
