Features
1.Comprehensive cleaning: For PCBA product residues on the surface cleaning
2 .Automatic cleaning mode: in a clean room complete cleaning, rinsing and drying process, small volume, compact structure
3 .Extra large cleaning capacity 610mm(L)*560mm(W)*100mm(H) .Double design, to meet greater cleaning product size and higher capacity
4 .The most scientific spraying trajectory design: nozzle use left and right incremental type ,up and down dislocation type distribution, and cleaning area of nozzle flow calculation by calculation and arrangement, totally solve the blind clean area problem
5. Standard heating systems: cleaning box assembly 9 kw heater , cleaning room reserved 3 kw heater position, enhance the cleaning efficiency, shorten the cleaning time
6 .Large size touch screen operation interface: stable and reliable color touch-screen, can set cleaning process parameter according to different products, operation more simple
7 .High standards of cleanliness: ion pollution Ⅲ grading standards fully meet IPC - 610 - d (below 1.5 ug/cm ^ 2, as an associate) and the United States military standard MIL28809 of grade I standard
8 .Convenient cleaning agent ratio: can manually add, also can be set according to the proportion (5% 25%) with DI water and chemical liquid
9.Spray chamber structure, double seal design spray room, to ensure good sealing effect (Optional : the machine installation density compensation pump, when the manufacturer cleaning a lot of same product)
10.Diluent concentration decreases, the concentration of compensation systems to ensure diluent concentrations remain in the best scope
Specifications
|
Cleaning size |
single:610mm(L)*560mm(W)*100mm(H) double layer dsing |
| Dilution tank capacity |
70L |
| Spray tank capacity |
17L |
| Concentrate tank capacity |
30L |
| Clean mothed |
360°rotary |
| Clean time |
5-30 min (reference ) |
| Rinse time |
1-2 min (reference) |
| Rinse times |
1-99 times (can setting by requrement ) |
| Drying time |
20-30 min (reference) |
| Cleaning fluid recycling |
0.45μm (Micro filter :solder paste,rosin,soldering flux,pollutant)Rinsing liquid Emission filter:0.45μm (Micro filter :solder paste,rosin,soldering flux,pollutant) |
| Diluent heating temperature |
normal temp .~55°C |
Spray tank temperature compensation |
normal temp .~55°C |
| Drying and heating temperature |
room temp. ~80°C |
| Resistivity meter monitoring scope |
0~18M |
| DI water supply |
30~60L/min |
|
DI water pressure |
less than 0.4Mpa |
| DI water in and out connecting pipe size |
1 inch |
| Air supply |
0.45Mpa~ 0.7Mpa |
| Air consumption |
200-400L/Min |
| Power supply |
AC380V 50HZ 65A |
| Net weight |
600Kg |
| Air outlet size |
Φ100(W)×30mm(H) |
| Dimension |
1200mm(L)*1100mm(W)*1850mm(H) |

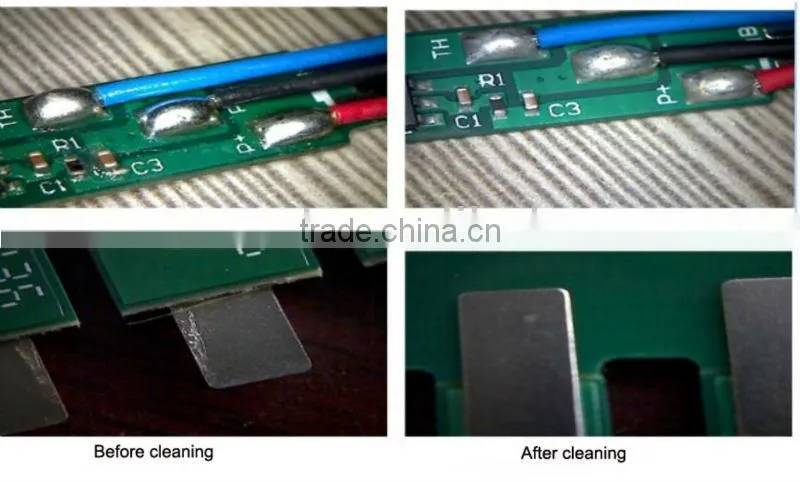

Cleaning effect

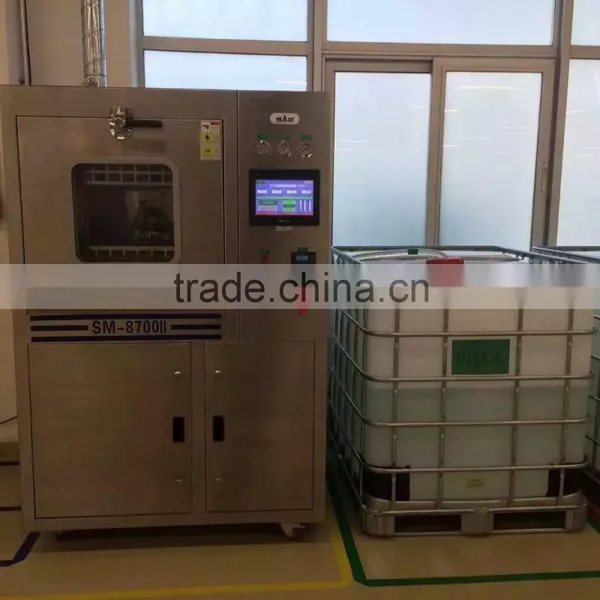

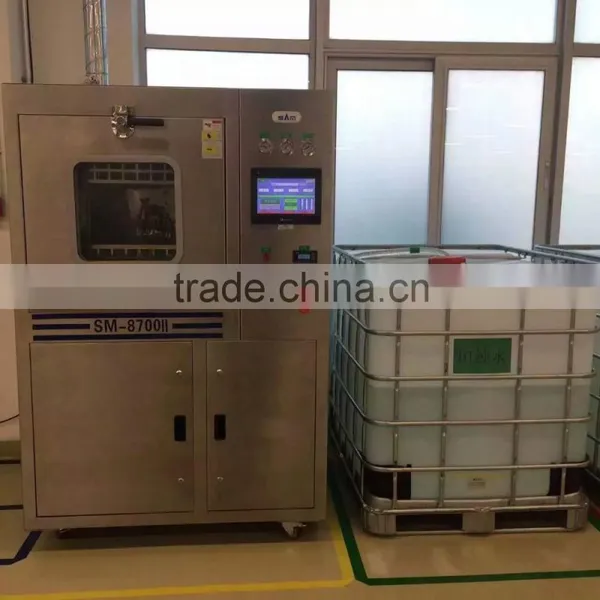

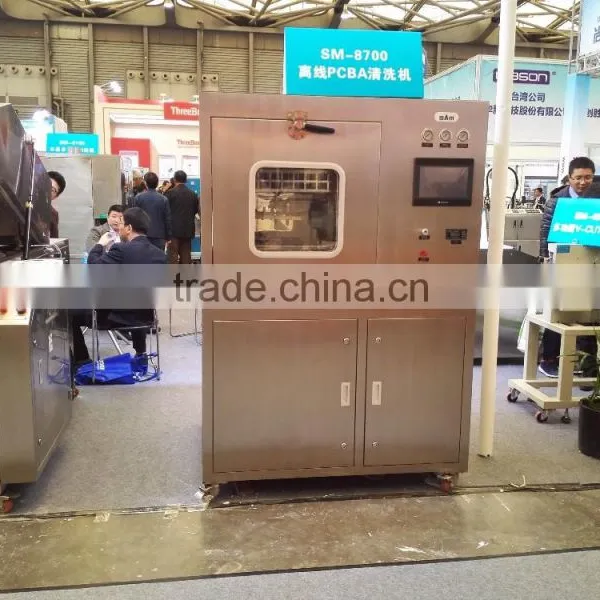

Exhibition Room
