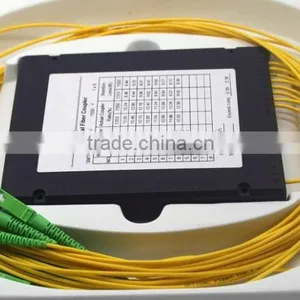

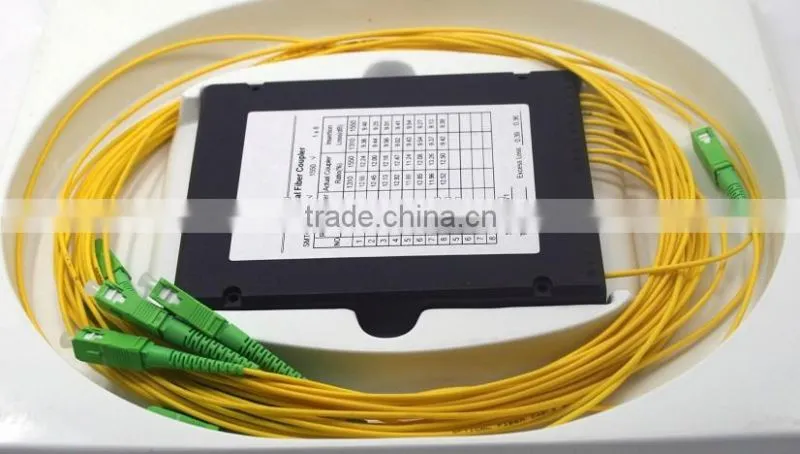

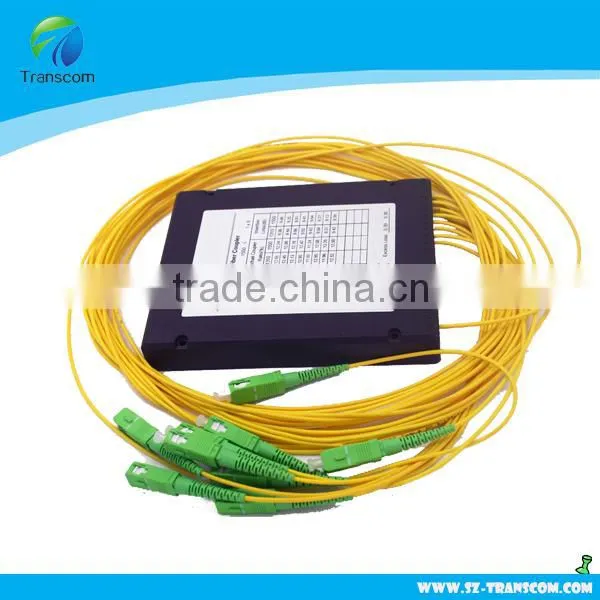

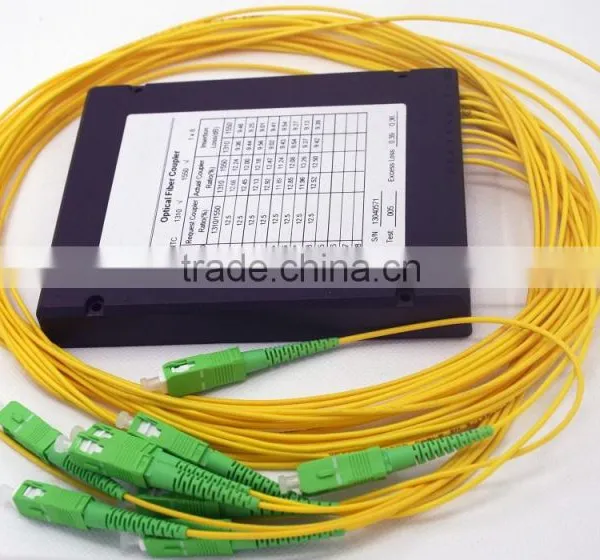

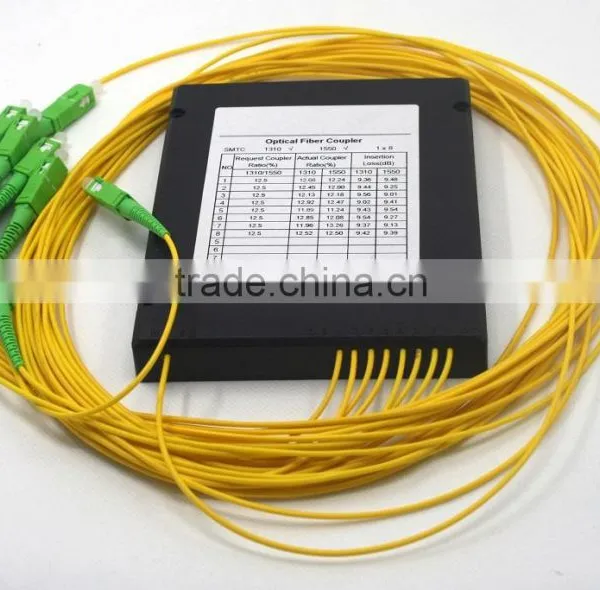

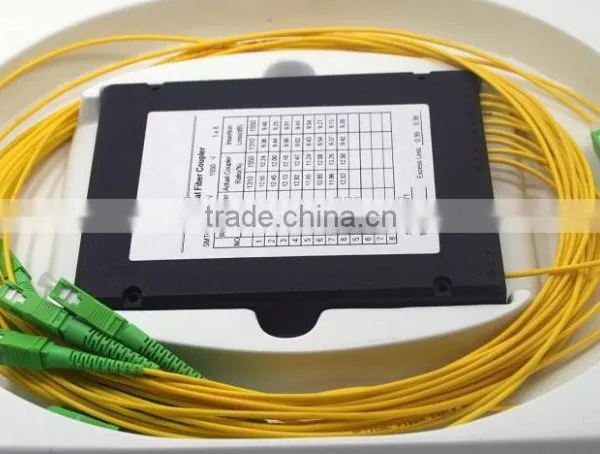

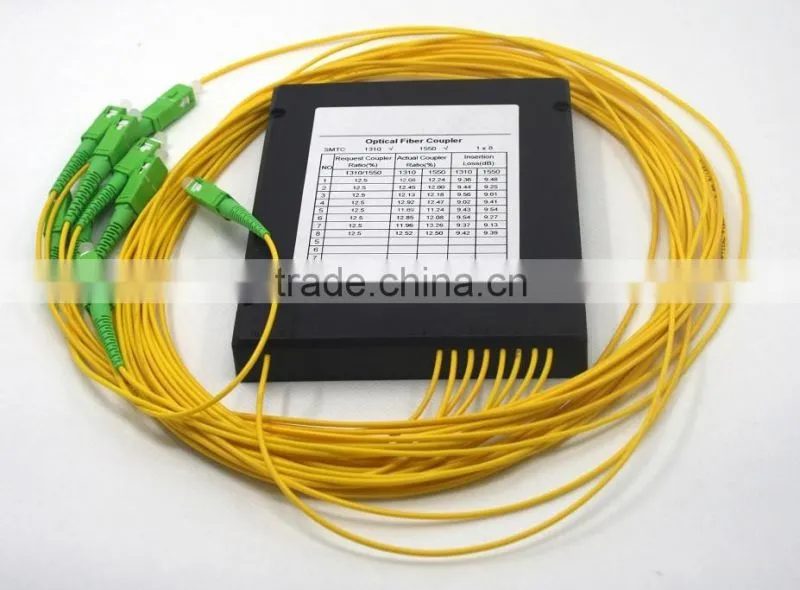

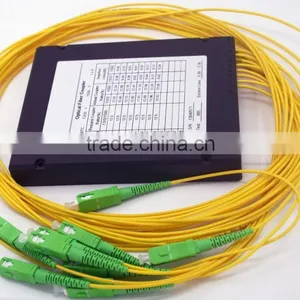

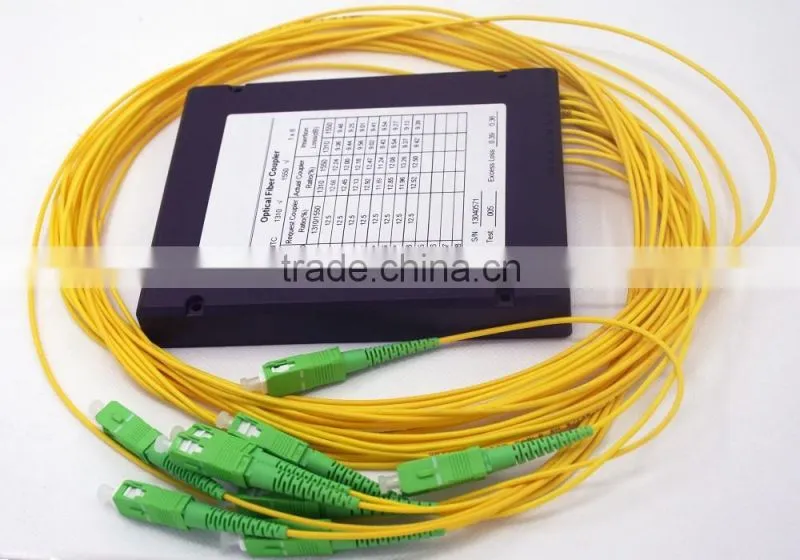

Cassette Type 1M 2.0mm 1x8 PLC Splitter Module
Cassette Type 1M 2.0mm 1x8 PLC Splitter Feature
1.Good uniformity and low insertion loss
2.Low Polarization Dependent Loss
3.Stability Telecordia GR-1221 and GR-1209
4.Components through TLC-Certified,Conform to YD1117-2001
5.Operating environment: -40ºC to +85ºC
6.High Polarization Extinction Ratio & Excellent Uniformity
7.G.657A Fiber
8.Good channel-to-channel uniformity
Cassette Type 1M 2.0mm 1x32 PLC Splitter Parameter
Parameter |
Specification |
||||||||
Operating Wavelength(nm) |
1280 ~1650 |
||||||||
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×8 |
2×16 |
2×32 |
Insertion Loss(dB) |
≤3.9 |
≤7.1 |
≤10.3 |
≤13.3 |
≤16.3 |
≤19.8 |
≤10.8 |
≤13.8 |
≤16.8 |
Uniformity(dB) |
≤0.4 |
≤0.5 |
≤0.5 |
≤1.0 |
≤1.0 |
≤2.5 |
≤1.0 |
≤1.5 |
≤2.0 |
PDL(dB) |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.1 |
≤0.2 |
≤0.2 |
Wavelength Department Loss (dB) |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.3 |
≤0.4 |
≤0.7 |
≤0.1 |
≤0.3 |
≤0.4 |
Temperature Department Loss (dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.3 |
≤0.4 |
≤0.4 |
Directivity(dB) |
55 |
||||||||
Return Loss (dB) |
50 |
||||||||
Operating Temperature(℃) |
-40 ~ +85 |
||||||||
Cassette Type 1M 2.0mm 1x8 PLC Splitter Applications
1.Fiber to the point (FTTx)
2.Fiber to the home (FTTH)
3.Passive optical networks(PON, GEPON)
4.Local area networks (LAN)
5.Cable television (CATV)
6.Test equipment
