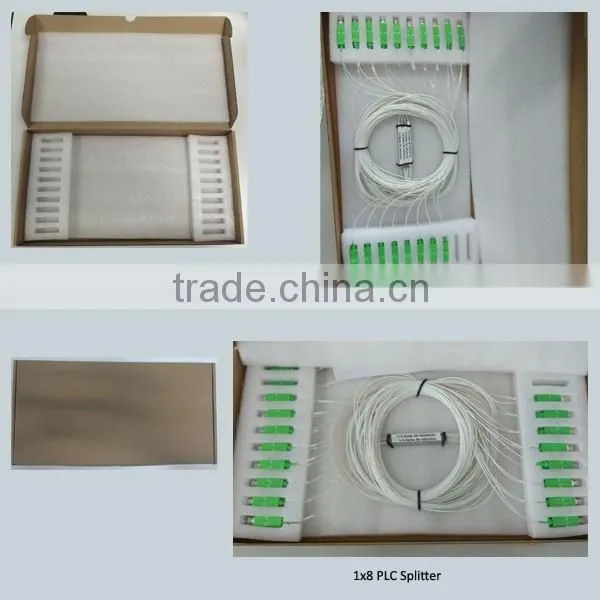

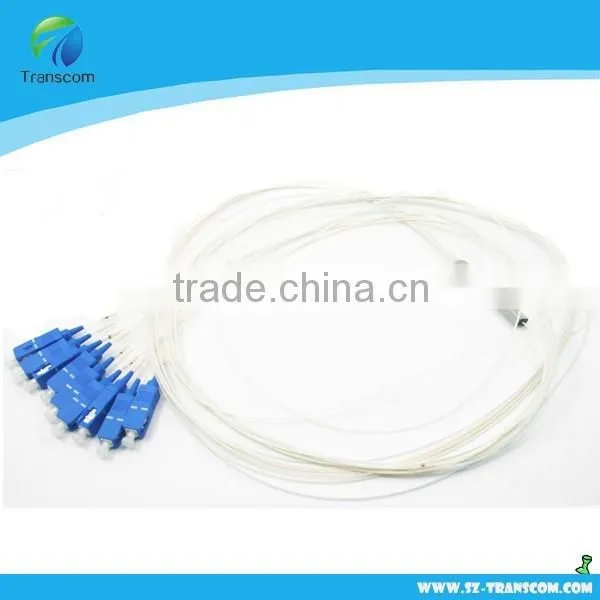

FTTH Optical PLC Splitter for GPON Distribution
FTTH Optical PLC Splitter Feature
1.Good uniformity and low insertion loss
2.Low Polarization Dependent Loss
3.Stability Telecordia GR-1221 and GR-1209
4.Components through TLC-Certified,Conform to YD1117-2001
5.Operating environment: -40ºC to +85ºC
6.High Polarization Extinction Ratio & Excellent Uniformity
7.G.657A Fiber
8.Good channel-to-channel uniformity
FTTH Optical PLC Splitter Parameter
1*N Blockless Fiber PLC Splitter
| Parameter | Unit | configuration | |||||||||||
| Mode | 1*2 | 1*3 | 1*4 | 1*6 | 1*8 | 1*12 | 1*16 | 1*24 | 1*32 | 1*64 | 1*128 | ||
| Operate Wavelength | nm | 1260~1650 | |||||||||||
| Insertion Loss | Typ. | db | 4.0 | 6.0 | 7.0 | 9.4 | 10.0 | 12.0 | 13.2 | 16.0 | 16.5 | 20.5 | 24.5 |
| Max. | db | 4.3 | 6.2 | 7.4 | 9.8 | 10.7 | 12.5 | 13.9 | 16.5 | 17.2 | 21.5 | 25.5 | |
| Uniformity | db | 0.5 | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | 1.4 | 1.5 | 1.6 | 2.0 | 2.6 | |
| PDL | db | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
| Directivity | db | ≥55/50 | |||||||||||
| Operate temperture | ℃ | -40~+85 | |||||||||||
Blockless Fiber PLC Splitter Applications
1.Fiber to the point (FTTx)
2.Fiber to the home (FTTH)
3.Passive optical networks(PON, GEPON)
4.Local area networks (LAN)
5.Cable television (CATV)
6.Test equipment
We're professional manufacture of fiber optic products for many years, our PLC splitter range from 1x2 to 1x64, and we support BARE TYPE, MINI TYPE, CASSETTE TYPE options.
Pls contact us directly if you have any questions.
