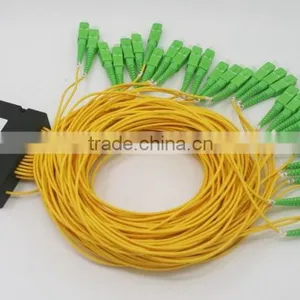

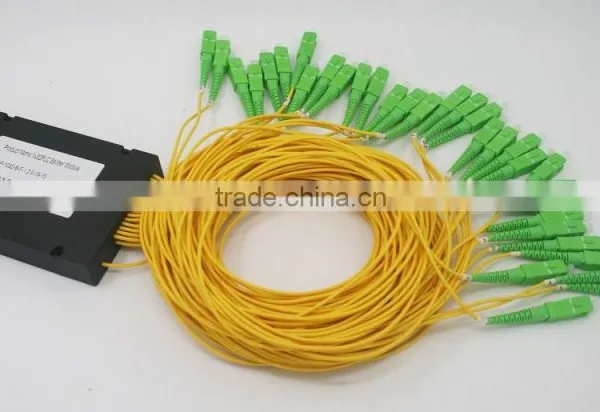

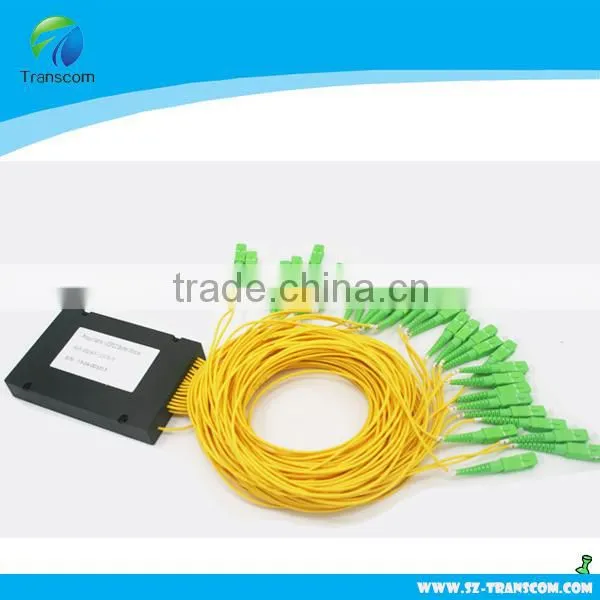

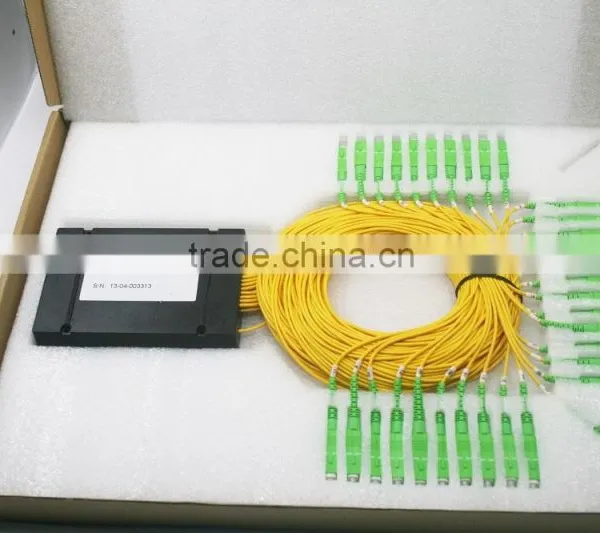

Cassette Type 1M 2.0mm 1x32 PLC Splitter Module

Name: Cassette Type 1M 2.0mm 1x32 PLC Splitter Module
Brand: OEM
Price: Negotiable

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port SHENZHNE
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

PLC Splitter

Product Description

Cassette Type 1M 2.0mm 1x32 PLC Splitter Module

Cassette Type 1M 2.0mm 1x32 PLC Splitter Feature

1.Good uniformity and low insertion loss
2.Low Polarization Dependent Loss
3.Stability Telecordia GR-1221 and GR-1209
4.Components through TLC-Certified,Conform to YD1117-2001
5.Operating environment: -40ºC to +85ºC
6.High Polarization Extinction Ratio & Excellent Uniformity
7.G.657A Fiber
8.Good channel-to-channel uniformity

Cassette Type 1M 2.0mm 1x32 PLC Splitter Parameter

Parameter	Specification
Operating Wavelength(nm)	1280 ~1650
Type	1×2	1×4	1×8	1×16	1×32	1×64	2×8	2×16	2×32
Insertion Loss(dB)	≤3.9	≤7.1	≤10.3	≤13.3	≤16.3	≤19.8	≤10.8	≤13.8	≤16.8
Uniformity(dB)	≤0.4	≤0.5	≤0.5	≤1.0	≤1.0	≤2.5	≤1.0	≤1.5	≤2.0
PDL(dB)	≤0.1	≤0.1	≤0.1	≤0.2	≤0.2	≤0.2	≤0.1	≤0.2	≤0.2
Wavelength Department Loss (dB)	≤0.1	≤0.1	≤0.1	≤0.3	≤0.4	≤0.7	≤0.1	≤0.3	≤0.4
Temperature Department Loss (dB)	≤0.3	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4	≤0.3	≤0.4	≤0.4
Directivity(dB)	55
Return Loss (dB)	50
Operating Temperature(℃)	-40 ~ +85

Cassette Type 1M 2.0mm 1x32 PLC Splitter Applications

1.Fiber to the point (FTTx)

2.Fiber to the home (FTTH)

3.Passive optical networks(PON, GEPON)

4.Local area networks (LAN)

5.Cable television (CATV)

6.Test equipment
