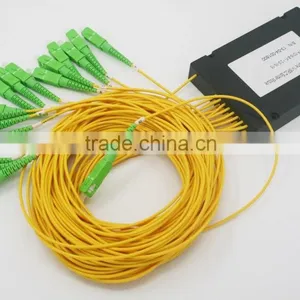

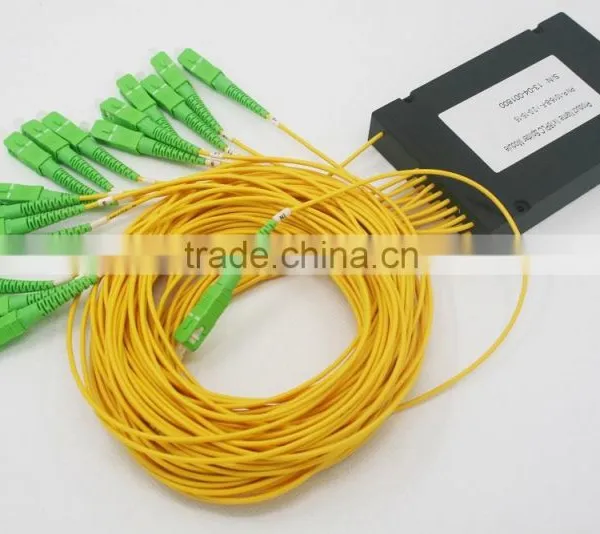

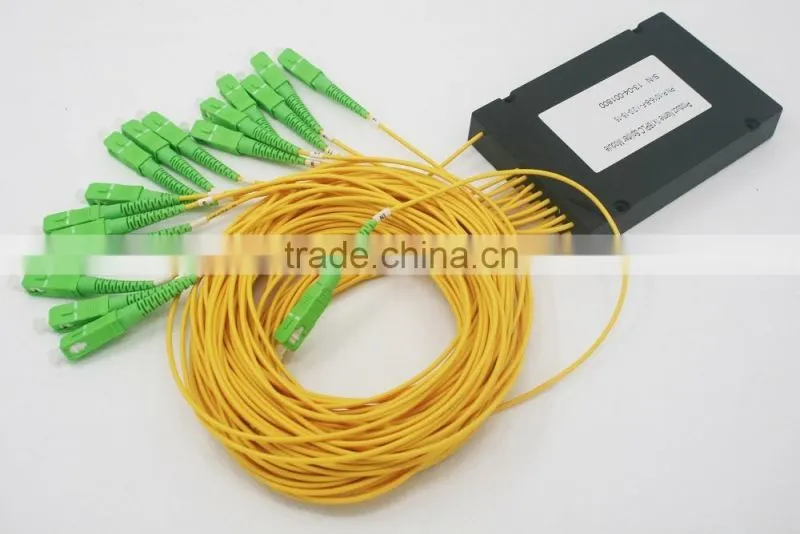

Cassette Type ABS SC/APC 1x16 PLC Splitter
Cassette Type ABS SC/APC 1x16 PLC Splitter Feature
1.Good uniformity and low insertion loss
2.Low Polarization Dependent Loss
3.Stability Telecordia GR-1221 and GR-1209
4.Components through TLC-Certified,Conform to YD1117-2001
5.Operating environment: -40ºC to +85ºC
6.High Polarization Extinction Ratio & Excellent Uniformity
7.G.657A Fiber
8.Good channel-to-channel uniformity
Cassette Type ABS SC/APC 1x16 PLC Splitter Parameter
Parameter |
Specification |
||||||||
Operating Wavelength(nm) |
1280 ~1650 |
||||||||
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×8 |
2×16 |
2×32 |
Insertion Loss(dB) |
≤3.9 |
≤7.1 |
≤10.3 |
≤13.3 |
≤16.3 |
≤19.8 |
≤10.8 |
≤13.8 |
≤16.8 |
Uniformity(dB) |
≤0.4 |
≤0.5 |
≤0.5 |
≤1.0 |
≤1.0 |
≤2.5 |
≤1.0 |
≤1.5 |
≤2.0 |
PDL(dB) |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.1 |
≤0.2 |
≤0.2 |
Wavelength Department Loss (dB) |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.3 |
≤0.4 |
≤0.7 |
≤0.1 |
≤0.3 |
≤0.4 |
Temperature Department Loss (dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.3 |
≤0.4 |
≤0.4 |
Directivity(dB) |
55 |
||||||||
Return Loss (dB) |
50 |
||||||||
Operating Temperature(℃) |
-40 ~ +85 |
||||||||
Cassette Type ABS SC/APC 1x16 PLC Splitter Applications
1.Fiber to the point (FTTx)
2.Fiber to the home (FTTH)
3.Passive optical networks(PON, GEPON)
4.Local area networks (LAN)
5.Cable television (CATV)
6.Test equipment
