Best quality light weight foam concrete blocks making equipment
Contact:Cathy
Mobile/Whatsapp/Wechat:+86 13673629307
Skype:taizy2031
QQ:2419066501
Tel:0086-371-86660712
Fax:0086-371-86660713
working Scope
1,in order to cement, sand, fly ash, powder as raw materials such as foam
concrete production.
2, in high-rise building roof insulation works to warm the project, large trenches filled works.
3, blocks the production of foam concrete wall, with light weight to keep house warm or for other use .
4. there is a smaple of mould , inside of stainless steel line cutting blocks into bricks
Process:feeding automatically into mix , then via inside channel into foaming machine , at last flowing into the mould
Parameters
Model |
Motor (kw) |
Capacity (m³/h) |
size |
Weight
|
Mixer and foam machine (m) and conveyor(m) | ||||
TZFCB30 |
52 kw |
20-30m3/h |
2.4×2.3×3 and 3.1×1.5×1.6 |
5.2T |

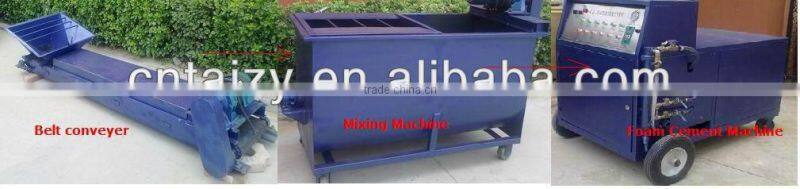

Light foam concrete foaming and conveyor
Main Technical Data:
Max. theoretical grouting flow |
25-30 m³/h |
Max. theoretical conveying pressure |
8 Mpa |
Max. theoretical horizontal transporting range |
600 m |
Max. theoretical vertical transporting height |
200 m |
Max. particle size of aggregates |
8 mm |
Pump head quantity |
2 Pcs |
Oil cylinder (material cylinder) quantity |
2 Pcs |
Oil cylinder inside diameter*stroke |
Φ80*1000 mm |
Material cylinder inside diameter*stroke |
Φ140*1000 mm |
Max. pressure of hydraulic system |
24 Mpa |
Oil pressure box volume |
200L |
Motor power |
30 KW |
Dimension (L*W*H) |
3100*1500*1600 mm |
Weight (whole machine) |
5200kg |

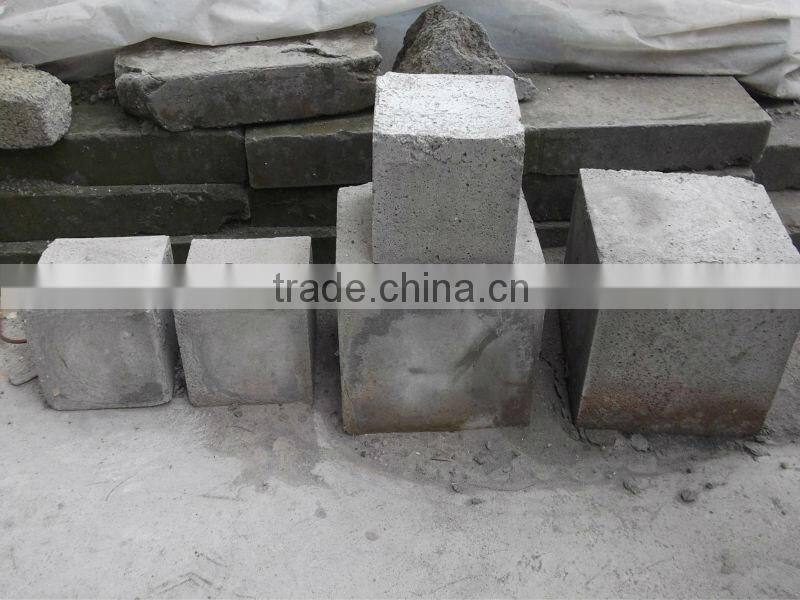

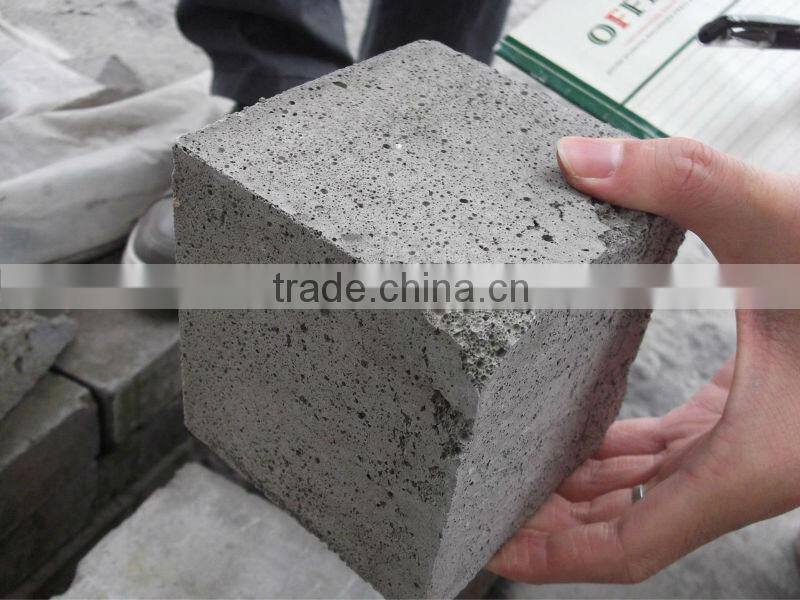

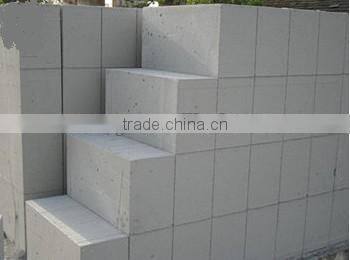

Finished block

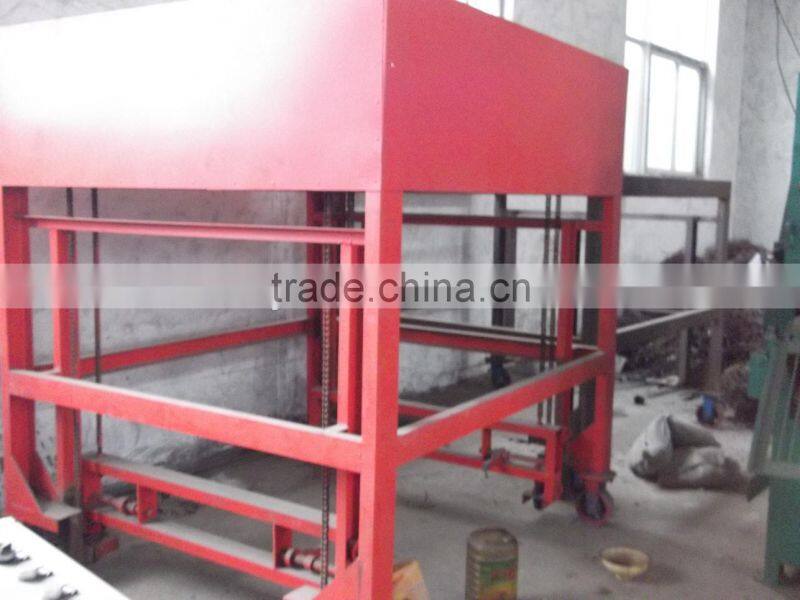

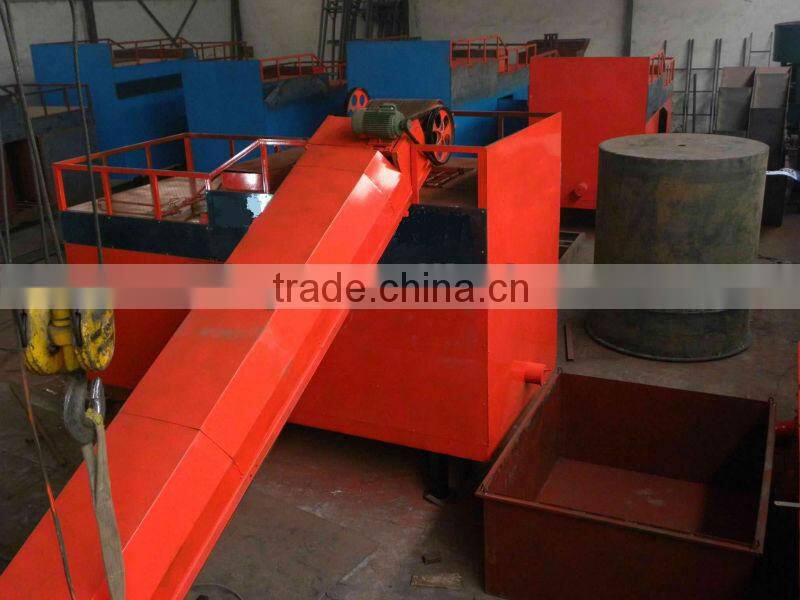

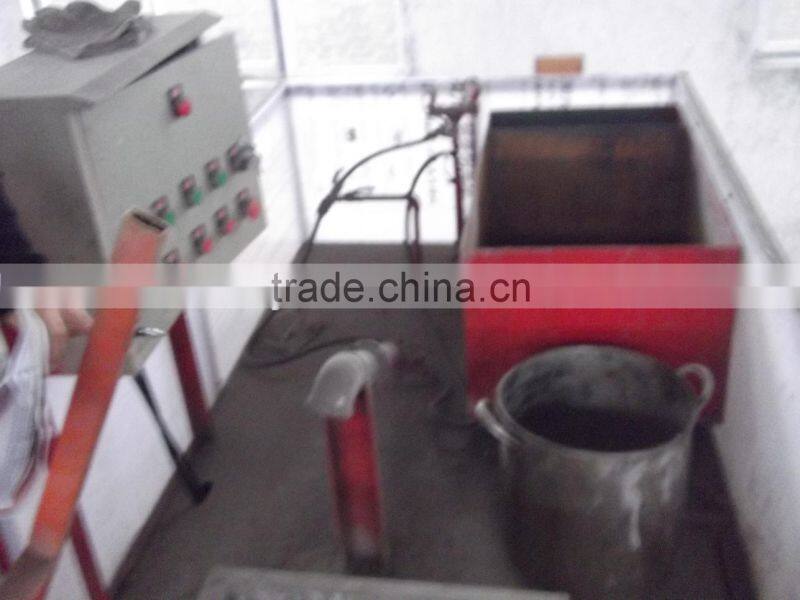

More pictures for light weight foam concrete block making machine
Any questions,please feel free to contact me!
