  NEW DODO 650cans/min can body making line





Product Description





  NEW DODO 650cans/min can body making line

 GT10A6 AUTOMATIC GANG SLITER

NEW DODO 650cans/min can body making line

  This machine is  one of indispensable equipment in can-body production line. It consists of auto feeder, cutter, slitter, front working table, rear working table, electric control cobinet, Vacuum system, loader accessory, stacker and disc-cutter sharpen-grinder. It has functions of auto feeding, auto cutting and slitting, double sheet testing and auto counting, with features of easy for maintenance, safety and reliability. Meet the precisely cutting requirements of various can-body tinplates in hi-efficiency.



        Feeding capacity 28sheet/min
        Feeding speed (chain line speed) 34m/min
        Tinplate size to be cut 480~1050mm
        Tinplate thickness 0.2~0.5mm
        Min width after lengthwise cutting 160mm
        Min width after crosswise slitting 50mm
        Total power 6.55kw
        Weight 5300kg
        Dimensions 5500×2620×1553mm



 NEW DODO-650/500/400/300/200  FULLY AUTOMATIC CAN BODY WELDER

NEW DODO 650cans/min can body making lineNEW DODO 650cans/min can body making lineNEW DODO 650cans/min can body making line

  This machine is one of the product series made by Shantou Xinqing Cannery Machinery CO.,LTD-the Japan N.P.W. Tech Lab manufacture base in China. It has the features of hi-efficient output, good welding quality stability , solid and good-looking seal line, with plenty of can sizes. It is ideal equipment to make industrial material can and foodstuff can.



   Specifications subject to our prevailing data, please contact us to negotiation. Thanks.



INSIDE POWDER COATING MACHINE



This Powder Coating Machine use the static to spray the plastic powder onto the welding line of can body line, then use the heat to melt the powder to form an anti-corrosive film to cover the welding line to protect the welding line from being corroded. THis machine adopts the advanced PLC and pneumatic components to make the powder to be absorbed and adhered onto the welding line surface more reliably and steadily, and keep higher utilizing rate of the powder, it is the ideal equipment for can welding line coating and coverage.



Transfer speed 10-70m/min
Production capacity 80-500can/min
Coating width 8-12mm
Applicable can diameter 52 - 280mm
Powder material Polyester,Epoxies
Comperessed air 0.4mpa,0.5m3/min,<60%
Input power AC220V,50HZ
Power 2.5KW

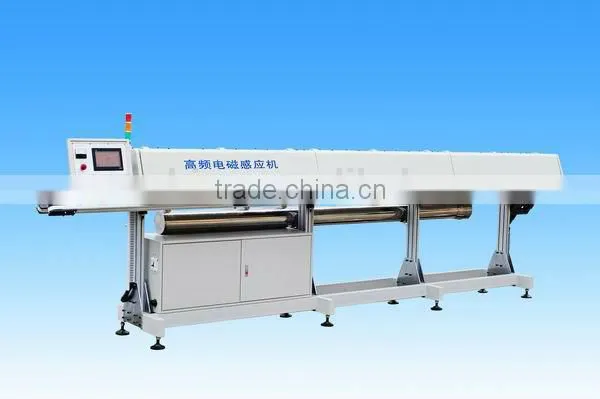

INDUCTION DRYING OVEN

NEW DODO 650cans/min can body making line



This induction Drying Oven adopts inverter for  power supply,the alternative current generate specific eddy to  heat the metal can  coating seam to realize curing and solid.



Fully Automatic Controlling System:
1.Automatic turn on when can body goes into the heating zone;Automatic turn off when can body leaves the heating zone.
2.Only heating the coating area from inside to outside,without releasing the hot air or harmful gas.
3.Automatic adjustment for heating power compensation,ensure the heating temperature stably.

Main Feature and Specifications:
1.Lenth of drying oven is 1.28m,power consumption 1.2KW(min),production capacity 100cans/min.
2.Available to match different speed can body production line.
3.Diameter range:52mm-300,various machine types are available for your choice.



NEW DODO 650cans/min can body making line



GT3B49-FBS  COMBINATION MACHINE(INCLUDING FLANGING ,BEADING ,SEAMING)

  This machine is a auto can-making equipment with necking, flanging, beading, seaming units and can-body separator and lid releasing device, trouble auto step device. Adopt vertical structure, necked with dir and mold, flanged by rotation of gear's transmission, inner beading die eccentric adjustable and beading depth adjustable, bottom seaming in rail made, bottom chuck die driver by gear to prevent sliding. It has the features of  operation in lower table, hi-precision of  die and mold ,easy for adjustment. Equpped with PLC and inverter.



   Specifications subject to our prevailing data, please contact us to negotiation. Thanks.


LEAK TESTING MACHINE

NEW DODO 650cans/min can body making line





Mechanical Characteristic



1.Fully automatic control system,vertical outlet conveyor easy to link and work with seamer.
2.Perfect machine safety device.
3.Perfect treatment for contact surface of can body with anti-scuffing.
4.Easy for can size changeover and maintenance.
5.Touch screen controller is easy to adjust parameters and running speed , easy to shooting troubles.



Model LT-24A LT-20B LT-40 LT-60
Production Capacity 250cans/min(max) 200cans/min(max) 500cans/min(max) 800cans/min(max)
Application Range of Dia ¢52-99mm ¢99-189 mm ¢52-99 mm ¢52-99mm
Application Range of Can Height 35-320 mm 99-260 mm 35-180 mm 35-180 mm
Inspection Capacity 0.07-0.3 mm 0.07-0.3 mm 0.07-0.3 mm 0.07-0.3 mm
Air Consumption 0.5mpa-20hp 0.5mpa-20hp 0.5mpa-20hp 0.5mpa-20hp
Power Consumption 5kw 10kw 10kw 12kw
Application For aerosol can for big foods can for small foods can





AUTOMATIC PALLETIZER
