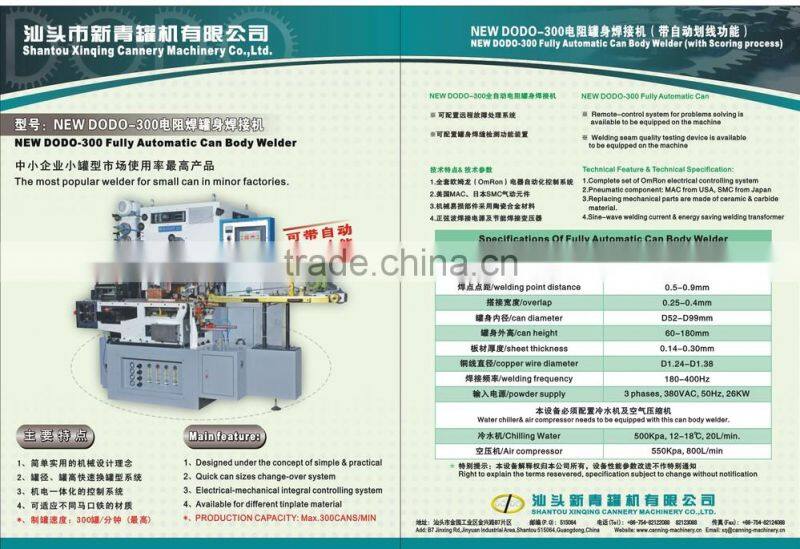

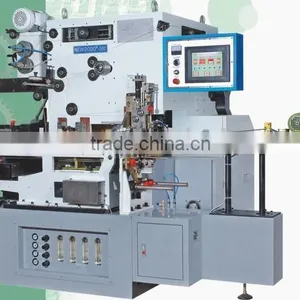

Fully Automatic Can Welding Machine

Fully Automatic Can Welding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food, Other, Beverage, Food, Machinery & Hardware, Can body welding
Packaging Type:
Case, Film, Other, Case, Film, Wooden cases
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food, Other, Beverage, Food, Machinery & Hardware, Can body welding
Packaging Type Case, Film, Other, Case, Film, Wooden cases
Packaging Material Metal, Other, Metal, plastic film
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 45kw
Place of Origin Guangdong, China
Brand Name NEW DODO
Model Number NEW DODO-300
Weight 3000kg
Dimension(L*W*H) 2200 X 2240 X 2080
Certification CE certificate
After-sales Service Provided Overseas service center available



  Fully Automatic Machine for Can Welding(foods/beverage can)





Product Description

Fully Automatic Can Welding Machine



Main Feature of New DODO-300 welder:


1.Equipped with human-computer-interface and PLC.
2.Adopt digital control technology
3.Auto.trace for copper string driving speed
4.New digital inverter for power supply
5.Full control for erery operation steps
6.Radio control available



Speciflcations of the series NEW DODO-300 Full  Metal Packaging Machine

 Type New DODO-250

New DODO-300

 Welding speed 40m/min.

 48m/min.

 production speed 200-250cans/min.

 250-300cans/min.

Welding point distance 0.5-0.9mm
 Overlap 0.4mm
 Can diameter (202)52mm - (401)99mm
 Can height 60mm-180mm
 sheet thickness 0.16-0.3mm
 Material Tinplate, Ni plate
 Tin coating 5#-100#
 Temper T2.5-DR8
 Copper wire diameter 1.38mm,1.5mm
 Power

three phase, voltage:380V

frequency:50Hz  electric comsumpt:60Kw
Welding Power

Frequency

120-390Hz

120-390Hz

Out capacity

25KVA

40KVA

 welding frequency 200-360Hz
 Cooling water 500kpa, 12-18oC, 20L/min.
 Compressed air 550kpa, 800L/min.
 Dimensions 2200 X 2240 X 2080
