Visual Fault Locator for fiber inspection and damage location

Specifications

Visual Fault Locator for quick and efficient fiber inspection and damage location

                        Pocket Visual Fault Locator VFL-500

• Quickly and easily locate damages in optical fiber, operates either in CW or Pulsed, 650nm
1mW.
• 2.5mm Universal connector (1.25mm adapter available)
• High powered laser (1mW) for single-mode(>7km) and multi-mode(>5km) connectors
• Soft-sided carrying case with belt loop
• Compact, ergonomic design for ultimate portability , protective rubber end cap
• Output Power 5mW / 10mW / 20mW /30mW available
• Power Supply: 2 AAA alkaline batteries

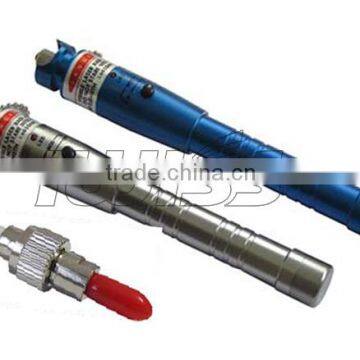

          Visual Fault Locator VFL-250 | VFL-1000A

• Visual Fault Locator is used for locating broken point in fibers
• Visual Fault Locator is equipped with a 650-nm visible laser diode
• One green LED indicator shows the operating mode.
• Power switch on the end for battery on / off
• Push button operate CW / Mod. (2.5 Hz frequency) / pause
• Clip pocket-size pen design; 1.25 mm adapter optional
• VFL-250——– 650nm, 5mW,Detecion Distance < 6 Km
• VFL-1000A — – 650nm, 10mW, Detecion Distance < 12 Km
• Power Supply: 2 AAA alkaline batteries

Visual Fault Locator HW-205

1.25mm Adapter

• The HW-205 is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.
• 2.5mm Universal connector (1.25mm adapter available)
• Operates either in CW or Pulsed, 650nm, 5mW
• Constant output power
• Long battery life (up to 60 hours)
• Laser case ground design prevents ESD damage
• Output Power 5mW / 10mW / 20mW /30mW available
• Power Supply: 2 AA alkaline batteries

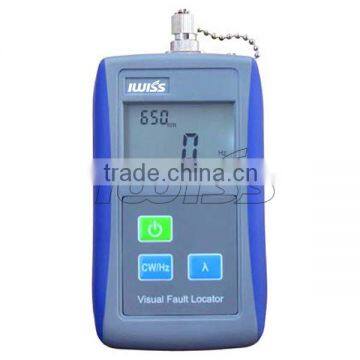

Visual Fault Locator VFL-350

• VFL-350 use 650nm laser module as emitter ,which is suitable for single mode or multi mode fiber inspection. The output mode can be chosen between CW and 2Hz frequency of light, it is widely used in optical communication, optical components measurement, fiber optical sensor and other fields .
• Push button operate CW / Mod. (2.0 Hz frequency) / pause
• 2.5mm Universal connector , 1.25 mm adapter optional
• Large LCD display and optional backlight
• Output Power 5mW / 10mW / 15mW /20mW available
• Power Supply: 3 AAA alkaline batteries
