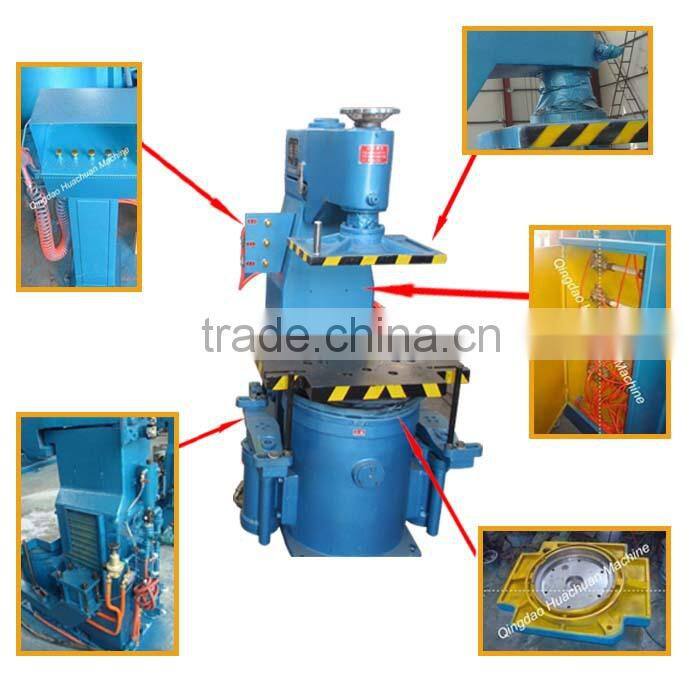

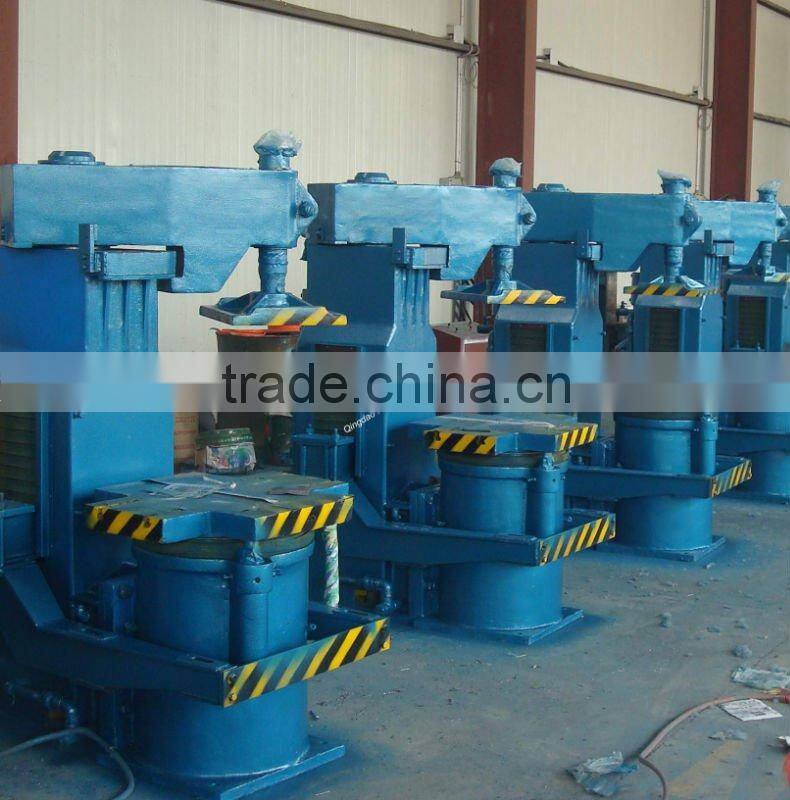

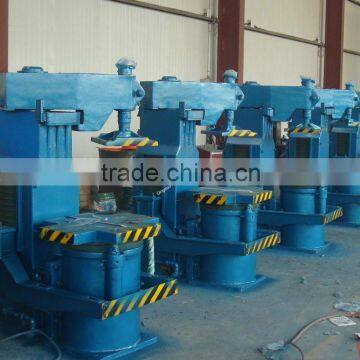

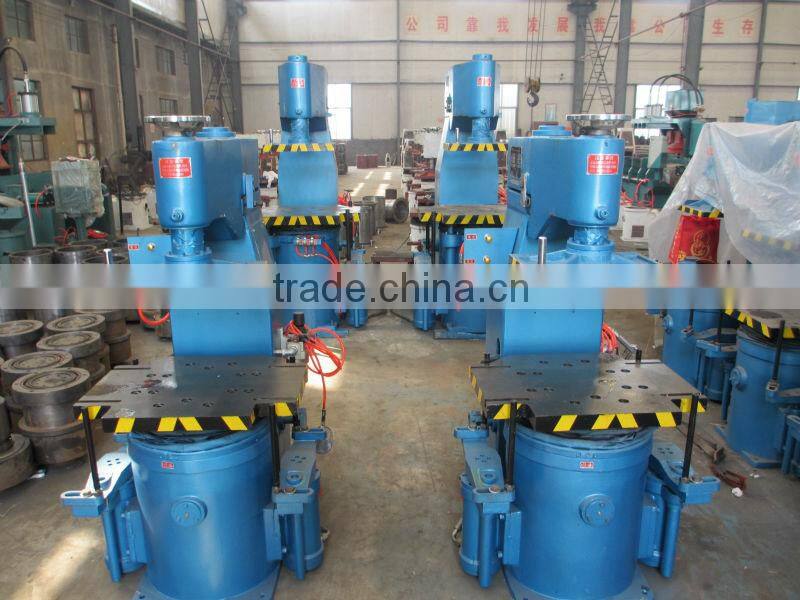

Jolt squeezing sand molding machine foundries equipment
Other name: molding machine, molding press, molding machellone, sand molding machine, Jolt Squeeze Molding Machine, Squeeze Molding Machine, Jolt Molding Machine ,Sand Jolt Squeeze Molding Machine, The resin sand molding machine, Clay sand moulding machine ,green sand molding machine.
Special Features:
1.Combined Jolt Squeeze
2.Accurate Draw
3.Low Maintenance
4.Operational Roller or Pin Lift Draw
5.perational Safety Guards
6.Operation Pneumatic, Electrical or Microprocessor Control
7.Jolt Squeeze Moulding Machine
8.Sand Slinger Molding Machine, Used Foundry Equipment
Parameter:
Name |
UNIT | Z143W | Z144W | Z145W | Z146W | Z148E |
| The Max. dimension of Sand Box | mm | 400*400*100 | 400*500*180 | 450*500*200 | 500*600*200 | 900*800*320 |
| Worktable/ Workbench dimension | mm | 560*420 | 465*500 | 600*460 | 550*700 | 1000*820 |
| Jarring Load / Air pressure | kgf /Mpa | 0.55 | 0.6 | 300/0.6 | 300/0.6 | 0.6 |
| Compressive stress | kgf | 4000 | 4200 | 6300 | 7000 | 18000 |
| Compress process | mm | 100 | 120 | 160 | 200 | 200 |
| Drawing mould process | mm | 160 | 150 | 200 | 200 | 320 |
| Distance compacting plate with worktable | mm | 200-370 | 300-400 | 300-450 | 350-450 | 600-700 |
| Productivity | mould/h | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Out line dimension L*W*H | mm | 950*680*1280 | 1050*1100*1410 | 1200*1000*1693 | 1380*850*1565 | 2175x1600x2380 |
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in the sand molding machine ,
Please let me know freely,Mr Jack
