Hydraulic shell core shooting machine
Specification of Z95 series shell core machine
Z95 series shell core machine on the number of working parameters compared with the standard model has increased, including increasing the template size and shoot sand barrel volume, corresponding to the bold guide bar diameter, increasing the clamping cylinder clamping force and so on, the whole structure weight and applicable range are higher than standard products. At the same time adopt a large area of sand bottom, easy to use with increasing size differences of different mould.
Product design fully consider the upgrade space, can according to customer's need to increase the automatic blowing sand, portable shoot sand body, improve core machine, automatic picking, and other functions.
Technical features: PLC programming controller, a key automatic operation; All the time and speed of movement is adjustable;
Automatic temperature control, temperature real-time display; Equipped with pneumatic sand device, sand ground effortlessly;
All electrical components focus on design, circuit built-in; The process parameters can be adjusted, according to customers special requirements can be produced.
| Type | Z954K | Z955K | Z956K | Z957K |
| Template size (mm) | 450×400 | 550×400 | 650×400 | 700×500 |
| Template stroke(mm) | 280-650 | 280-650 | 330-700 | 380-750 |
| Template thickness(mm) | 50 | 50 | 60 | 60 |
| Maximum weight of sand core(kg) | 20 | 20 | 20 | 25 |
| Maximum clamping force of core box(kg) | 1200 | 1200 | 1600 | 1600 or more |
Sand bucket volume (kg) |
150 | 150 | 150 | 200 |

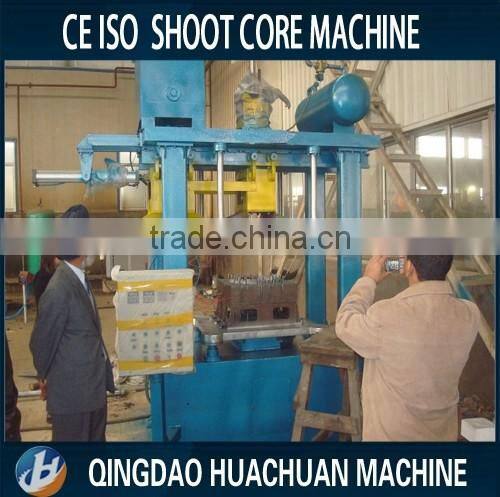

Product photos
Company view
We are the biggest manufacturer of shell core machine with over ten years
experiences in China.All of our products have passed ISO and CE international standards.
They have been exported to more than 30 countries and regions and got good comments
from domestic and abroad users.
Our certifications
Our customers
FAQ
1.Q:Are you a factory or trading company
A:We are a factory
2.Q:Where is your factory located?How can I visit there.
A:Our factory is located in Qingdao China.You are warmly welcome to visit us.
3.Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality.Our factory has gained CE/ISO certifications.
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in shell core machine,
Please let me know.
Tex:86 0532 85191579
Fax:86 0532 85191579
