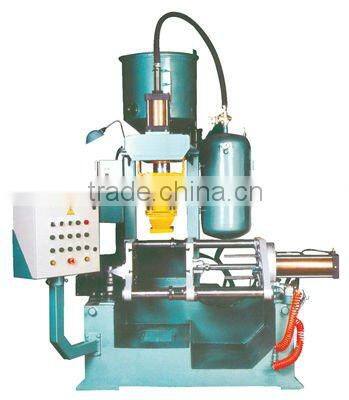

cold box sand core making machine for Motor shell
Z95 series shell core machine:
Z95 series shell core machine on the number of working parameters compared with the standard model has increased, including increasing the template size and shoot sand barrel volume, corresponding to the bold guide bar diameter, increasing the clamping cylinder clamping force and so on, the whole structure weight and applicable range are higher than standard products. At the same time adopt a large area of sand bottom, easy to use with increasing size differences of different mould.
Technical parameters:
| Item | Z954 | Z955 | Z956 | Z957 | Z958 |
| Core box size(mm) | 450*400*300 | 500*400*300 | 600*400*400 | 700*500*400 | 850*500*500 |
| Shooting the maximum weight(kg) | 15 | 15 | 25 | 30 | 40 |
| Open and close the template size(mm) | Max500,Min190 | Max560,Min190 | Max700,Min330 | Max700,Min330 | Max840,Min420 |
| Core box maximum clamping force(kg) | 1300 | 1300 | 1300 | 1300 | 3500 |
| Productivity | 60s | 60s | 80s | 80s | 80s |
| Use of pressure(Mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Shooting pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Heating mode | Electric heating | ||||
| Sand delivery mode | Pneumatic convey/bucket elevator |
||||
Z94 series automatic core shooter machine:
Z94 series automatic core shooter machine is used for a radio system core box automated, semi-automated core shooting device, the machine can be designed according to user's requirements of automatic, manual and semi-automatic equipment. Full-automatic equipment uses the Japanese OMRON PLC to control. Manual and semi-automatic equipment uses distributor button to control. The upper blowing device, which have function of automatic propeling, automatic clamping, automatic shooting, automatic reseting, suitable for mass production, medium size, complicated shape, as well as higher demand of the casting sand core's inner chamber. The machine adopts electrical heating, automatic temperature control, which has advantage of easy operating, high productivity, low labor strength, stable operating, low energy consumption, low noise, etc..
| Item | Z9404 | Z9406 | Z9407 |
| Template size(mm) | 650*450 | 650*450 | 700*400 |
| Max weight of shooting(kg) | 27 | 25 | 25 |
| Size of open and close template(mm) | Max700,Min330 | Max700,Min330 | Max700,Min330 |
| Productivity(s) | 60-80s | 80s | 80s |
| System pressure(Mpa) | 0.6 | 0.6 | 0.6 |
| Shooting pressure(Mpa) | 0.4 | 0.4 | 0.4 |
| Heating mode | Electrical heating | ||
| Nomber of work-box | 1 set | 2 set | 2 set |
| Sand delivery mode | Pneumatic convey/bucket elevator | ||
Product design fully consider the upgrade space, can according to customer's need to increase the automatic blowing sand, portable shoot sand body, improve core machine, automatic picking, and other functions.
Technical features: PLC programming controller, a key automatic operation; All the time and speed of movement is adjustable;
Automatic temperature control, temperature real-time display; Equipped with pneumatic sand device, sand ground effortlessly;
All electrical components focus on design, circuit built-in; The process parameters can be adjusted, according to customers special requirements can be produced.
1.Q:Are you a factory or trading company
A:We are a factory
2.Q:Where is your factory located?How can I visit there.
A:Our factory is located in Qingdao China.You are warmly welcome to visit us.
3.Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality.Our factory has gained CE/ISO certifications.
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in shell core machine,
Please let me know.
