Specifications
LDPE/LLDPE/HDPE Agricultural Mulch Film Blowing Machinewith back to back winder
high output and large film width

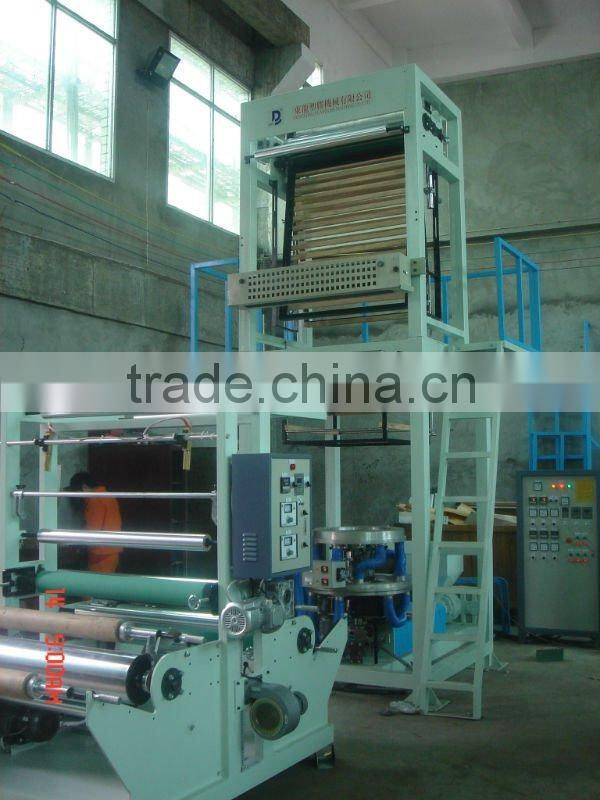

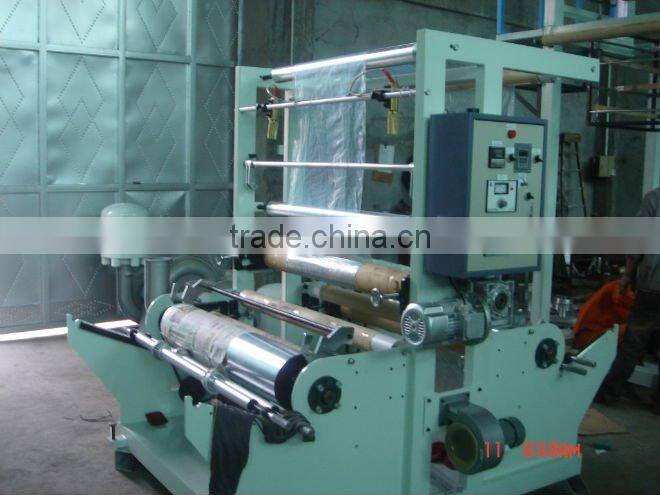

LDPE/LLDPE/HDPE Agricultural Mulch Film Blowing Machine/Blown Film Line
Features:
1) The machine is used to produce the mulch plastic film, agricultural film and outer package film made of LDPE, LLDPE and LLDPE.
2) It employs some new technologies like the most advanced heat running technology and special wind ring that used to extrude the shaped mulch plastic film. The machine is designed reasonably and elegantly. It is small and is easy to operate and maintain. The product features with good plasticization, high physical and technology and reasonable accessories, the machine is featured by high output, low energy consumption, good stability and reliability etc. Therefore, it is the ideal equipment to agricultural mulch plastic film in the new century.
Main Technical Parameters:
Model No. |
SJ65-FMS1500N |
SJ75-FMS1700N |
SJ90-FMS2000N |
Layer Number |
Single Layer |
||
Max. Folded Film Width |
1400mm |
1600mm |
1900mm |
Film Thickness |
0.015~0.20mm |
0.02~0.25mm |
0.02~0.25mm |
Output |
110kg/h |
120kg/h |
130kg/h |
Raw Material |
HDPE,LDPE,LLDPE |
||
Screw Diameter |
Φ65mm |
Φ75mm |
Φ90mm |
Screw L/D |
30:1 |
28:1 |
25:1 |
The Total Power of the Machine |
~80kw |
~95kw |
~120kw |
Shape Size |
6.7*3.2*7.0m |
7.3*3.5*7.5m |
8.0*4.0*8.0m |
Weight |
~5200kg |
~6700kg |
~7500kg |
Note: Correct specification depend on the actual model all specifications are subject to change without prior notice. | |||
