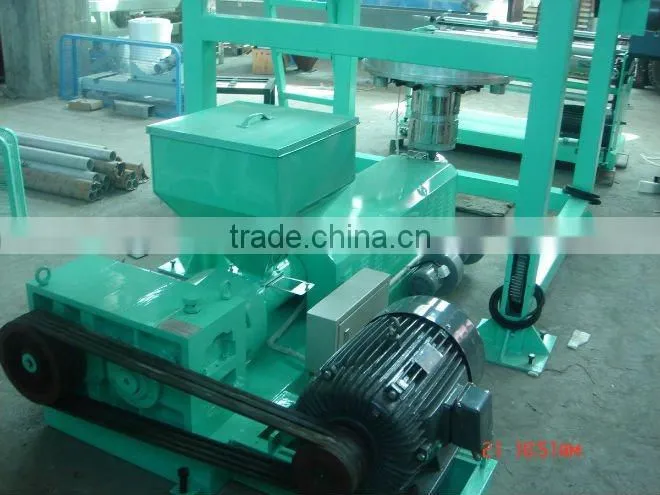

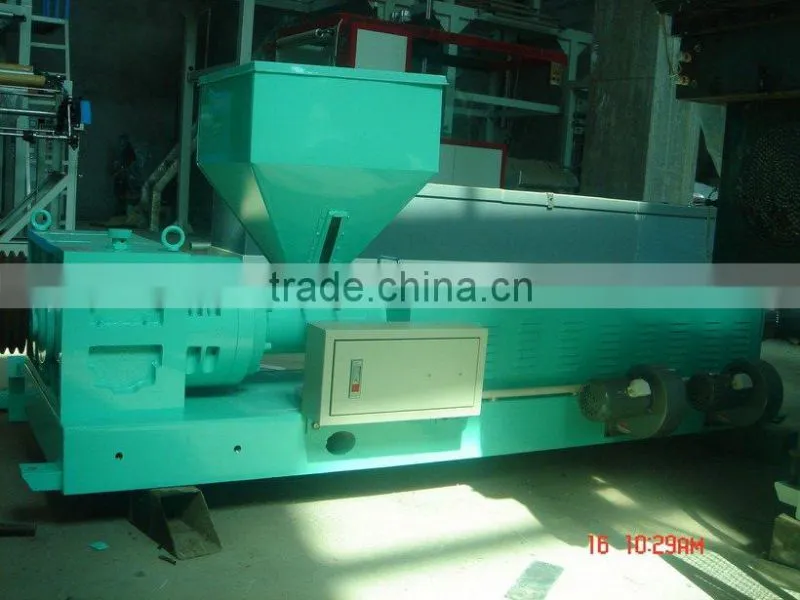

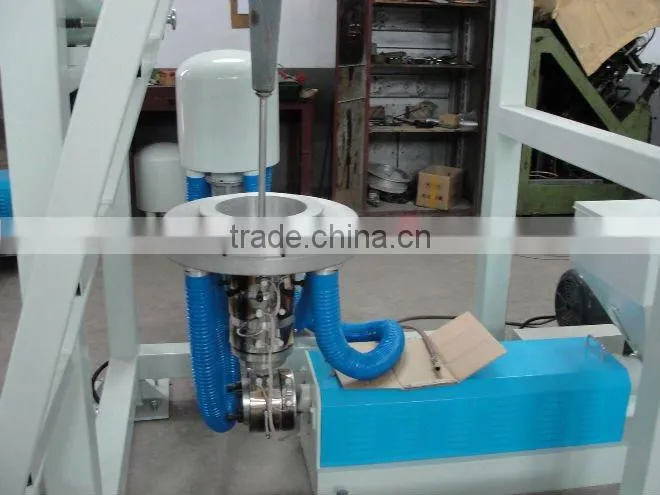

Agricultural PE Plastic Film Extruder

Agricultural PE Plastic Film Extruder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic No
Place of Origin Fujian, China
Brand Name Donghailong
Model Number SJ90-FMS2000N
Voltage 220-380v
Power(W) 120kw
Dimension(L*W*H) 8.0*4.0*8.0m
Weight 7500kg
Certification CE,SGS
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

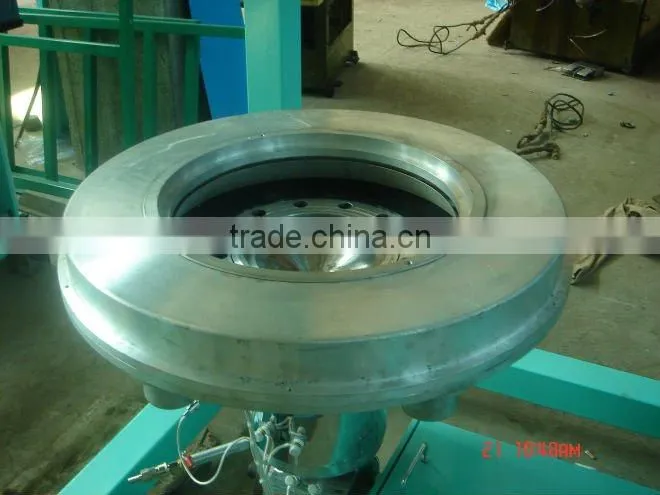

Rotaing die head
Double winder
High Output
Sell to Argentina

Features:

1) The Film Extruder is used to produce the mulch plastic film, agricultural film and outer package film .



2) It employs some new technologies like the most advanced heat running technology and special wind ring that is used to extrude the shaped mulch plastic film.



3) The  Plastic Film Extruder  is designed reasonably and elegantly. It is small and is easy to operate and maintain.



4) The product features with good plasticization, high physical and mechanical performance and strong tear resistance .





Main technical parameters



Mian Technical Parameters
Model SJ65-FMS1500N SJ75-FMS1700N SJ90-FMS2000N
Max. Folded Film Width 1400mm 1600mm 1900mm
Film Thickness 0.015~0.20mm 0.025~0.25mm
Output 85kg/h 100kg/h 110kg/h
Raw Material HDPE,LDPE,LLDPE
Screw Diameter Φ65mm Φ75mm Φ90mm
Screw  L/D 30:01:00 28:01:00 25:01:00
Total Power of the Machine ~80KW ~95KW ~120KW
Shape Size( L x W x H) 6.7X3.2 X 7.0m 7.3 X 3.5X7.5m 8.0 X4.0 X 8.0m
Weight (T) ~5.2T ~6.7T ~7.5T
Correct specifications depend on the actual model all specifications are subject to change without prior notice.
