Features:
DL-D3Z800

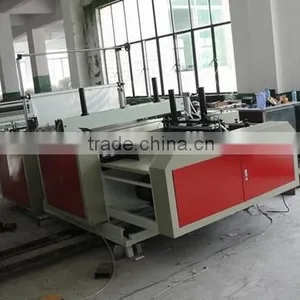

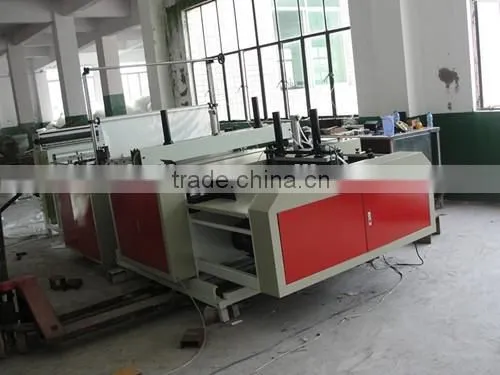

Automatic folded bag making machine
(1) This type of machine is suitable for processing the flat-end bags with tub-size films of HDPE,LDPE in primal color or colors. Fold big ones into the size of common bag.
(2) There are two styles of electrical machine to support, one is step-in electrical machine controlled by computer or the other is imported servo machine.
(3) The height of bags’ after folding is exact and no need to coordinate by hand. Exactness for the controlling of entering the material, without mistake for material breaking off.
(4) Can fold the flat-end bag thrice and change the big ones into small.
Specification
model DL-3Z800
width of bag ≤700MM
length of bag ≤650-1000MM
thickness of singer layer(mm) 0.01-0.10
speed of bag making 30-50/min
Total Power for whole machine≈ 10KW
Main motor≈2.2KW
Servo motor≈4.4KW
Heating capacity≈3KW
Unwind motor≈0.75KW
external measurement(length*width*height: mm)4200*2000*1600
weight of machine(2500Kg)
210 volts 60 hz
