Specifications
automatic T-shirt bag making machinewith auto-punching machine
speed: 200pcs/min*2
bag width: 330mm*2
bag length: 650mm

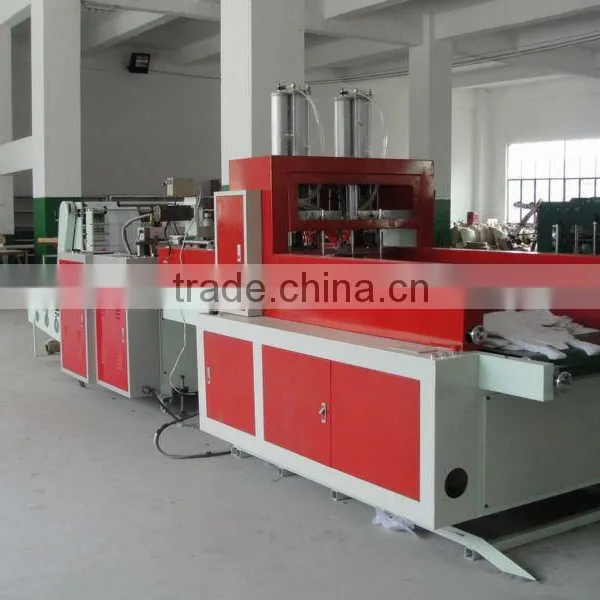

Double roll automatic T-shirt bag making machine with auto punching
Features:
1. This machine is designed to produce t-shirt bags, U shape bags, etc.
2. With two lines, the production capacity will be increased.
3. The whole machine is controlled by servo motor, thus the material will be conveyed smoothly and quickly.
4. With Germany brand “SICK” electric eyes, it has advantages of great quality, sensitive to colors, catching colors accurately.
5. The whole machine adopts computer control system to set the bag length, production speed, thus can reduce the waste and save cost; feeding material, counting and sending out material automatically; the machine will alarm automatically when the machine is out of work, therefore it will be safer to opera.
Main Technical Parameters |
|
Model |
DL-R800 |
Width of the bag |
≤330*2 |
Length of the bag |
≤650 |
Thickness of the bag |
0.01-0.25 |
Speed of the bag making |
200*2pcs/min |
Total Power(kw) |
9 |
Overall measurement |
5400*1650*1550 |
Weight of the machine |
2500 |
