Specifications
10KW home wind generator--PLC control system
-touch screen for remote control
-low noise with SKF bearings
-smaller,lighter
H8.0-10KW, 10kw off grid wind invertercharge controller, 10kw off grid wind turbine inverter

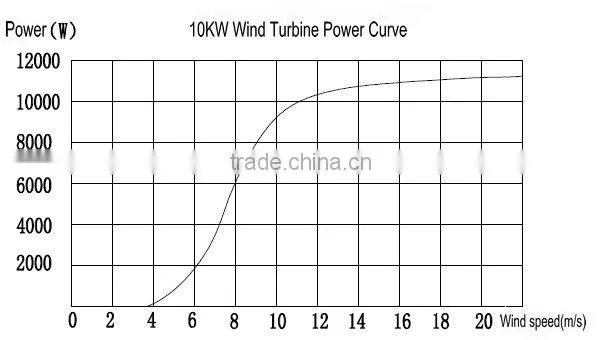

10KW wind generator specification
rated power |
10000w |
max power |
15000w |
battery bank voltage VDC |
240 |
system output voltage VAC |
380 |
start up wind speed |
3m/s |
rated wind speed |
10m/s |
working wind speed |
3-25m/s |
survival wind speed |
50m/s |
generating efficiency |
above 0.85 |
wind energy utilizing ratio |
0.4 |
generator type |
PMG |
blade material and quantity |
GRP/3 |
speed regulation method |
yawing, electromagnetism braking |
shutting down method |
manual and automatic |

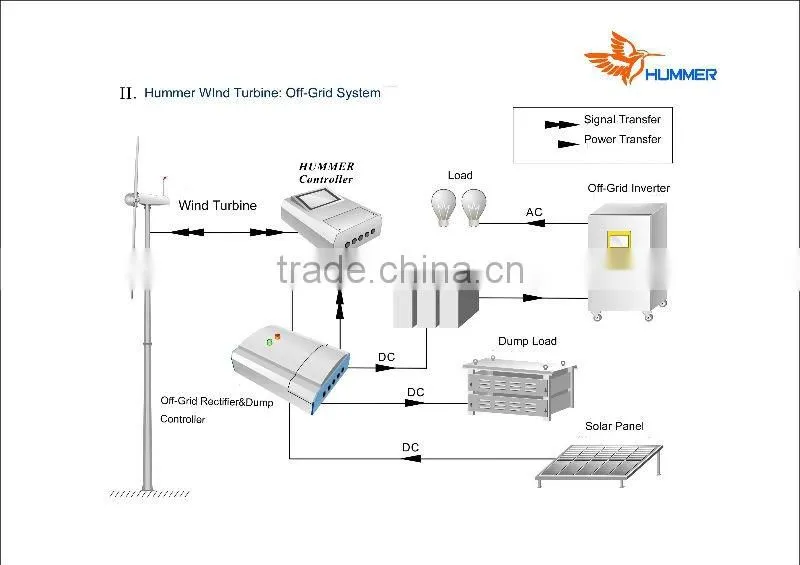

1. guy tower, free standing tower, hydraulic tower optional.

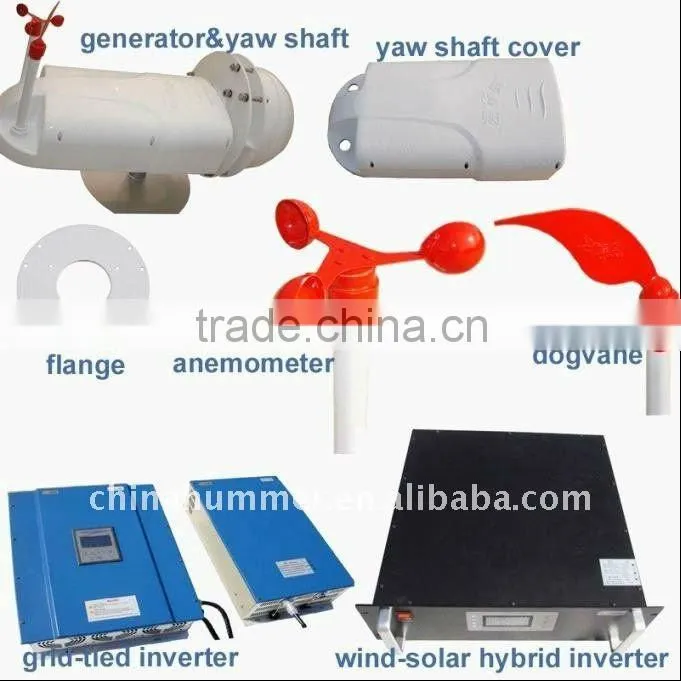

d vane and anemometer indicating wind direction and measuring wind speed, transmitting wind signal to PLC controller.
3. yaw shaft with the slip ring to ensure the rotation at 360 circulation.
4.Siemens PLC controller receiving wind signal and operation signal, quick in reaction, reliable and intelligent.
5.rectifier, dump load, inverter seperately equipped.
6.rectifier rectifying and controlling the dumping load.
7. dumping load made of metal box, heat dissipation by air convection, without the fan and the controlling box.
8. off grid inverter adopting SPWM technology, amorphous transformer and high frequency breaker, with high converting efficiency, outputting stable frequency and voltage, filtering out noise, low distortion of pure sine wave.
9. hydraulic brake optional.
Why choose Hummer ?
1.SCF generator technology
The generator parts adopt SCF( supercritical generator technology )which has won gold award of the 37thworld invention exposition in Brussels Eureka .it makes our generator smaller size ,lighter weight and higher efficiency .
Hummer SCF generator locates in nose cone ,easy to radiate heat and reduce wind resistance.
2. Blades RTM technology
Hummer blades adopt RTM technology, the blades is vacuum pressed and the whole cast, closed molding, makes the whole blades a formation at a time . it will improve the strength, smooth finish and precision of the blades .The lifespan is 20 years.
3. Siemens PLC

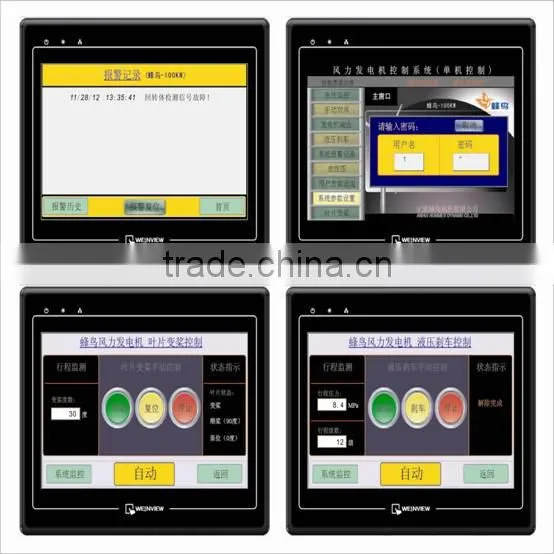

Hummer 3KW-50KW wind turbines adopt Siemens PLC control module with touch screen ,which is capacity of quick reaction to wind signal ,if any abnormal situation occur ,the controller will alarm and adjust the running status of the wind turbine automatically to protect the system .
4. Smart client for remote control
Client can see the datas and control the wind generator on the internet
5. wind turbine special cable
conductor of the cable is tinned copper wires ,the inside liner with tinned insulation net and the oversheath can UV-Resistance.The softness is good with excellent torsion., it can resistance to high (80 centigrade) and low(-45 centigrade) temperature ,anti-corrosion ,so that it can work in bad working conditions
6.Triple braking protection
Hummer wind turbine generally adopts the yawing system and the electromagnetic braking system to regulate the rotate of the wind turbine .Besides. customer can order the hydraulic braking system as well as a third protection ,It easy and convenient to shut down the whole system both manually and automatically .
