Specifications
wind turbine 500 watt1.Light,smart,high efficiency
2.lower noise with SKF
3.free maintenance
4.UL,CE& ISO9001
China top quality wind turbine 500 watt factory in wind turbine field
Trust the strength of corporation brand---It is your best choise!
1.Why hummer generator is better than other traditional generator :
A.It is 20%~30% Smaller in size and lighter in weight
B.It has a 10%-30% Higher efficiency rating
C.Greater than 10% Lower in noise
D.Has a totally sealed generator making it suitable to operate in any weather condition.

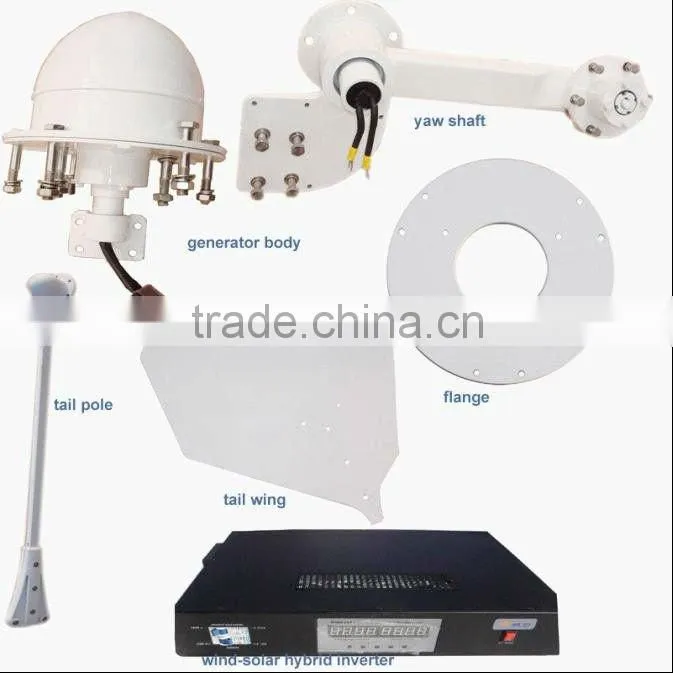

2. 500 home wind generator Information
1.SCF (Supercritical Generator Technology)
generator technology as core,Features are extremely light ,small,stable with higher power efficiency.
2.2 SKF bearings,
which have a 15 years life span with free maintenance.
3.Yaw shaft
Smart Intelligent yaw shaft system has designed with sensor to detect speed,Rpm,angle ,tempre
ture of generator, speed,direction of wind etc.
4.1 international patents, 6 National patents that ensure the perfect performance.
3. Main technical datas and power curve
Rated power(W) |
500 |
Maximum output power(W) |
1000 |
Charging voltage(V) |
DC 24V |
Blade quantity |
3 |
Rotor blade material |
GRP |
Rotor blade diameter(m) |
2.5 |
Start-up wind speed (m/s) |
3.0 |
Rated wind speed (m/s) |
7.0 |
Rated rotating rate (r/min) |
600 |
Wind energy utilizing ratio (Cp) |
0.48 |
Generator output |
single-phase frequency conversion AC |
output AC frequency (Hz) |
0~300 |
Rated charging current (A) |
15 |
The maximum charging current (in a short time )(A) |
25 |
Generator efficiency |
>0.78 |
Shutting down method |
Manual+Automatic |
Tower height(m) |
6 |
Weight of generator (kg) |
6.5 |
Battery 12V 120Ah/150Ah/ 200Ah |
2pcs |
If you still worry that wind turbine is new to you, if you still doubt the correctness of this
investment, and if you still confused the benefit brought by Hummer generating system,
we are sure you will find satisfying answers here.
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement
Minimum Order Quantity: 1 set
Delivery time: 20 working days after received the deposit.
Payment: T/T 30% deposit and the balance paid before shippment
Package: ply wooden case
FOB port: Shanghai,China
Guarantee: 2 years for the generator and one year for other parts , have 20 years generator lifetime
