100KW/200kW/300kW/500kW Wind Turbine Generator Wind Mill With Hummer 100kW Wind Power Generator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Hummer
Model Number:
100KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200kW/300kW/500kW Wind Farm With 100kW Wind Turbine Wind Generator SolutionNegotiableMOQ: 1 Set -
Hot Sale 100KW PMG Wind Turbine Wind Generator for Wind Farm/power DistributionNegotiableMOQ: 1 Set
-
50kW/60kW/100KW Wind Turbine Generator From ManufacturerNegotiableMOQ: 1 Set
-
Utility Grid Connected Wind Generator 100kW Power SetNegotiableMOQ: 1 Set
-
Low Speed Magnet Generator 100kW Wind TurbineNegotiableMOQ: 1 Set
Place of Origin
Anhui, China
Brand Name
Hummer
Model Number
100KW
Type
Wind Power Generator
Model: H20.8-100kW
Hummer 100kW wind turbine can be applied in both on-grid and off-grid systems. It outputs three-phase AC and it can drive load below 100kW.
1. SCF Supercritical generator
Hummer’s wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator’s weight and size down to 20% to 30% of the traditional one, and the production efficiency is 10% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
2. NSK bearings
Hummer 100kW wind turbine adopts the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load.

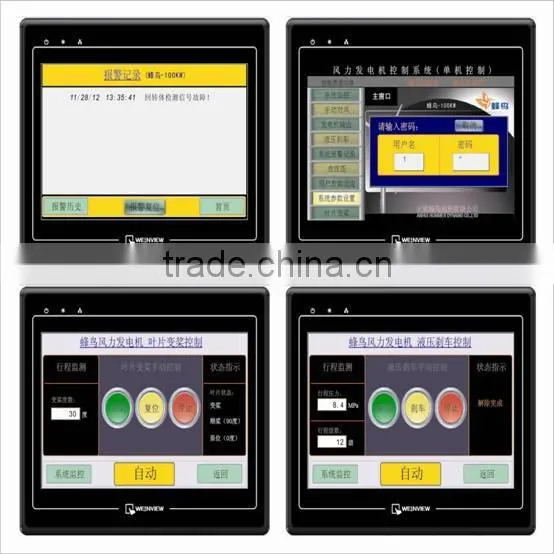

3. PLC integrated with Siemens module
Hummer wind turbine’s controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
4. Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft’s airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
5. Triple braking protection
Hummer 100kW wind turbine adopts the triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.
Rated power (W) |
100000 |
Maximum output power (W) |
10000 |
Battery bank voltage (VDC) |
480 |
Cut-in wind speed (m/s) |
3 |
Rated wind speed (m/s) |
11 |
Working wind speed (m/s) |
3-25 |
Survival wind speed (m/s) |
60 |
Generator efficiency |
>0.93 |
Wind energy utilize ratio |
0.42 |
Generator type |
Permanent Magnet Alternator |
Blade material/quantity |
GRP/3 |
Blade diameter (m) |
20.8 |
Over speed control |
Yawing +Pitch control + Hydraulic brake |
Shutting down method |
Manual + Automatic |
