Hot !!! Hummer 100kW high efficiency wind turbine system
100kw wind turbine price new energy generator
Advantage of 100kw wind turbine price :
1. SCF Supercritical generator
Hummer’s wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator’s weight and size down to 20% to 30% of the traditional one, and the production efficiency is 10% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
2. NSK bearings
Hummer 100kW wind turbine adopts the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load
3. PLC integrated with Siemens module
Hummer wind turbine’s controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
4. Low noise
The design of the rotor blade of Hummer wind turbine absorbs the highlights of the small aircraft’s airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
5. Triple braking protection
Hummer 100kW wind turbine adopts the triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.

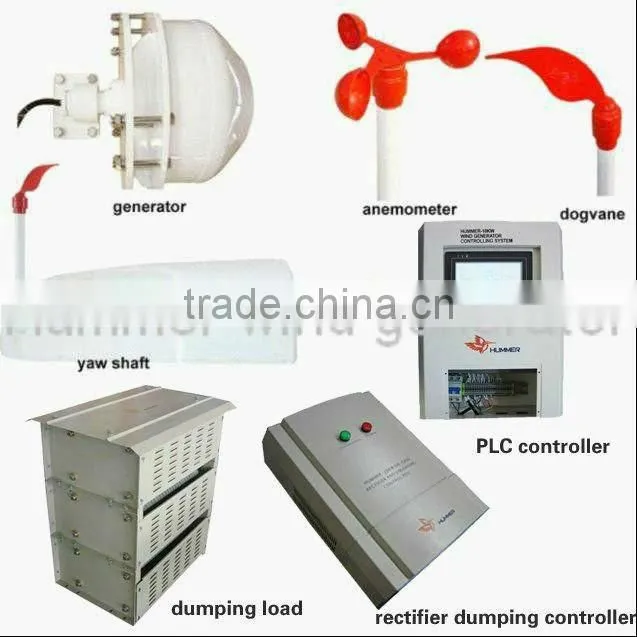

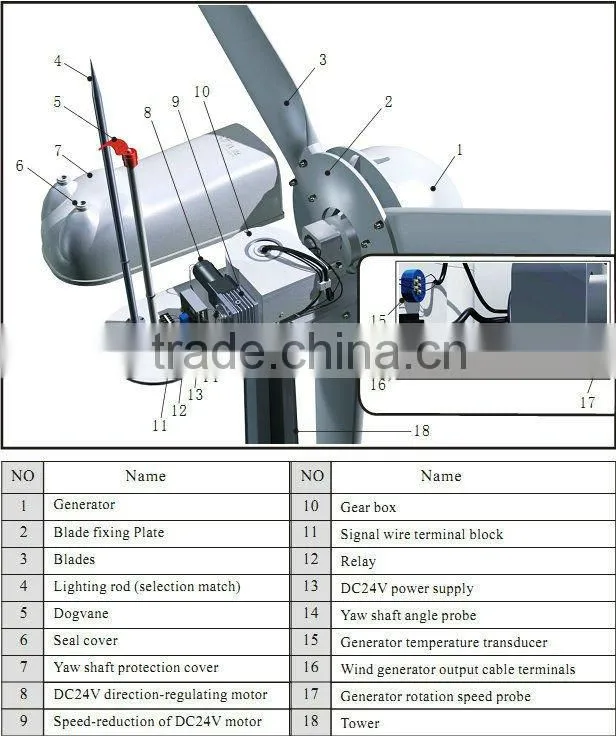

Structure of 100kw wind turbine price :
Main Technical Parameter of 100kw wind turbine price :
Rated power(W) |
100000 |
Maximum output power (W) |
112000 |
Charging voltage (V) |
DC 400 |
Blade quantity |
3 |
Rotor blade material |
GRP |
Rotor blade diameter (m.) |
20.8 |
Start-up wind speed (mph) |
7(3.0m/s) |
Rated wind speed (mph) |
25 (11.5m/s) |
Rated rotating rate (r/min) |
100 |
Wind energy utilizing ratio (Cp) |
0.42 |
Generator output |
Frequency conversion AC |
Rated charging current (A) |
218 |
The maximum charging current (in a short time) (A) |
246 |
Output AC frequency (Hz) |
0~400 |
Generator efficiency |
>0.93 |
Free standing tower diameter (in.) |
Ø53.1*Ø20.9 (Φ1350×Φ530mm) |
Tower height (ft.) |
25m |
The weight of generator (kg) |
2150 |
Suggested Battery (Ah) |
800/1500 |

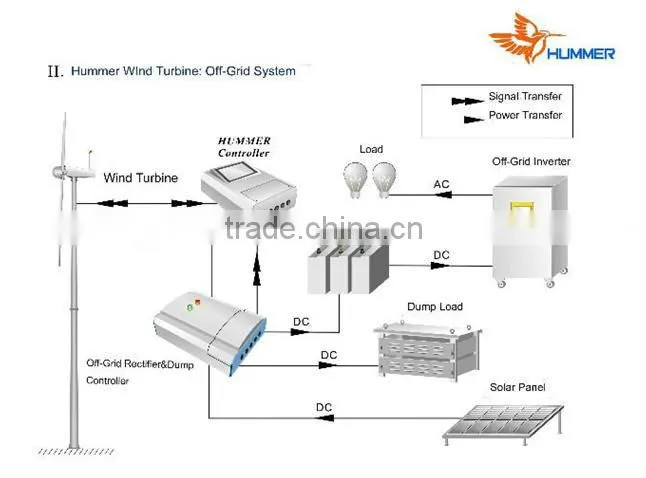

100kw wind turbine price for sale system:

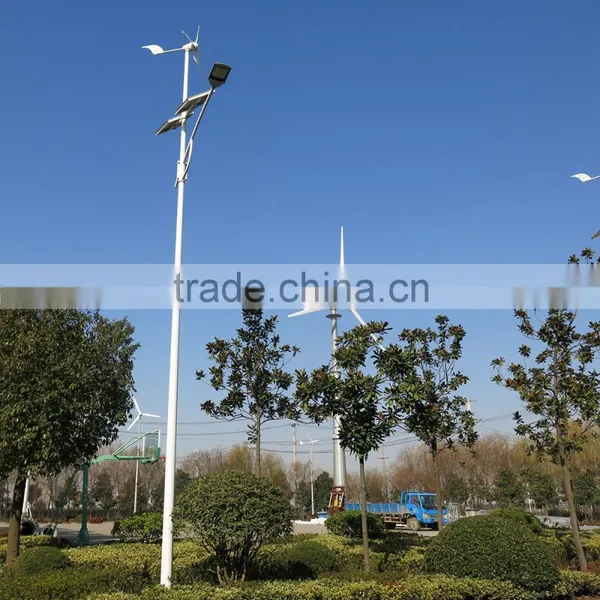

Project Case of 100kw wind turbine price :
100kw wind turbine price widely used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Shipping
FAQ of 100kw wind turbine price :
1.What's the delivery time ?
15 working days after your deposite
2.What's the warranty and service?
Five years for generator system and 2 years for other parts
3.How long are we specialized in wind turbine industry?
From 1993 till now. Expert enterprise and a well-known professional manufacturer
4.What's the unique feature about Hummer?
small, light, high efficiency, low noise with SCF generator technology
smart control system with touch screen
high wind protection
All above features with 7 patents, ranging from 500w to 100kw medium and small-sized wind turbines
5.Quality?
Strict factory inspction, SCF generator and inverter certified by CE ,UL,ETL, exported to more than 90 counties..
Certificate of 100kw wind turbine price :
Any Question, Pls Feel Free To Contact Hummer Dynamo!
