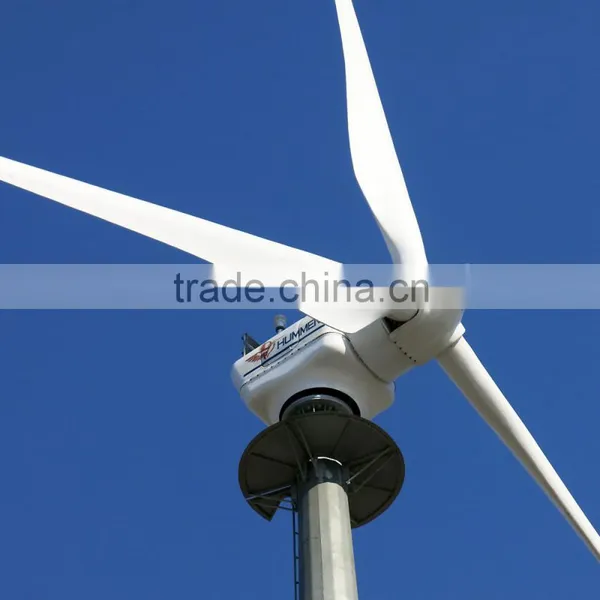

Clear renewable energy 0.1mw wind power generator system
Trust the strength of corporation brand----It is your best choise!
1. 0.1mw / 100kw wind turbine generator system Information
1.Light,smart, high efficiency with 6 National Patents and 1 international patent of SCF technology as the core
2.Lowe noise with 2 SCF bearings,lifespan of 15years
3.The prepositive designed generator locating in nose cone,easy to radiate heat and reduce wind resistance
4.Multiple protection:mechanical furling,manual and electromagnetic braking,Optional hydraulic braking
5.Equipped with a closed transmission slip ring to prevent cable from being wrapped
6.The blades with airfoil design ,aerodynamically optimized based on the wind tunnel test,efficient and practical
7.The anticorrosive processing,like hot gavanizing and spray paining,being efficient to prevent the turbine from atmospheric,salt spray and aeolianerosion
2.Technical Datas and curve or 0.1mw/100kw clean energy wind turbine generator system
| Rated power (W) | 100000 |
| Maximum output power (W) | 100000 |
| Charging voltage(V) | DC 480 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter (M) | 20.8 |
| Start-up wind speed (M/S) | 3 |
| Rated wind speed (M/S) | 11 |
| Rated rotating rate (r/min) | 60 |
| Generator efficiency | >0.93 |
| Tower height(M) | 24 |
| Weight of generator(KG) | 4000 |
| Tower weight(KG) | 6900 |
| Speed regulation method | hydraulic braking, pitch control, electromagnetism braking |

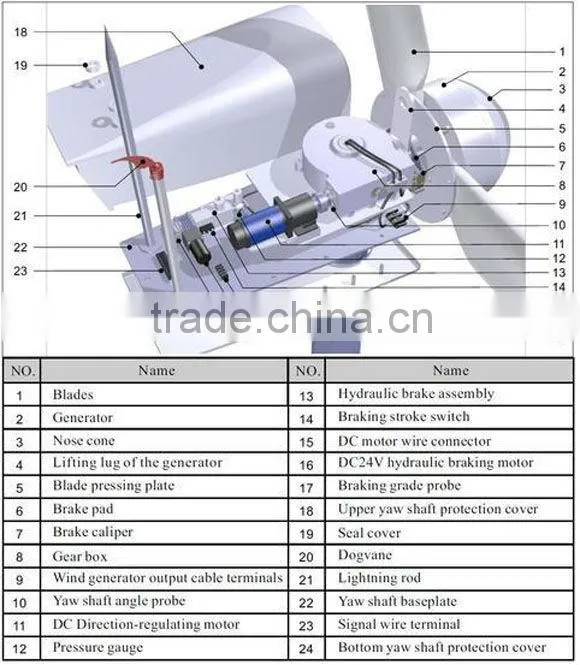

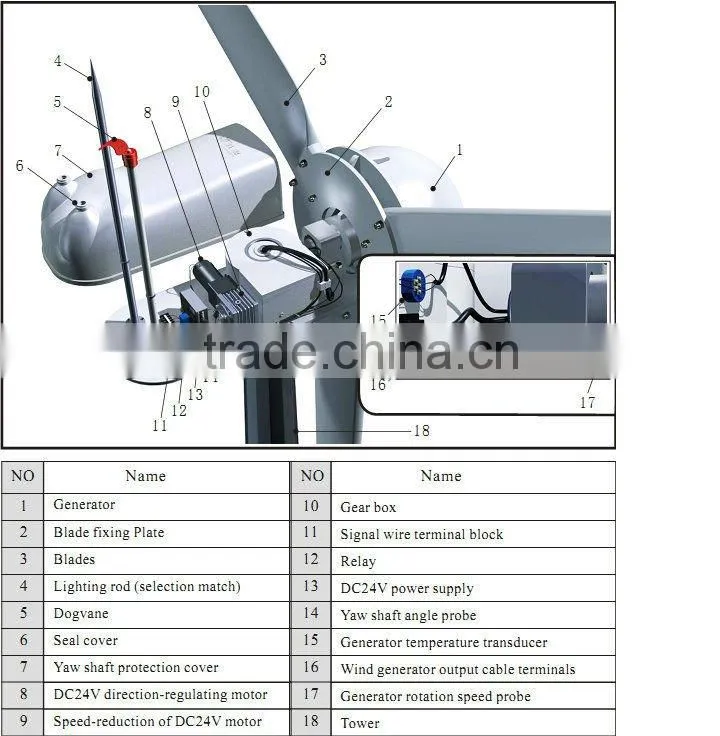

3.Structural Picture of 2015 energy free 0.1mw/ 100kw wind turbine generator
(2)NSK Bearings:with the perfact internal geometric structure,rough surface,stable inner and outer ring.

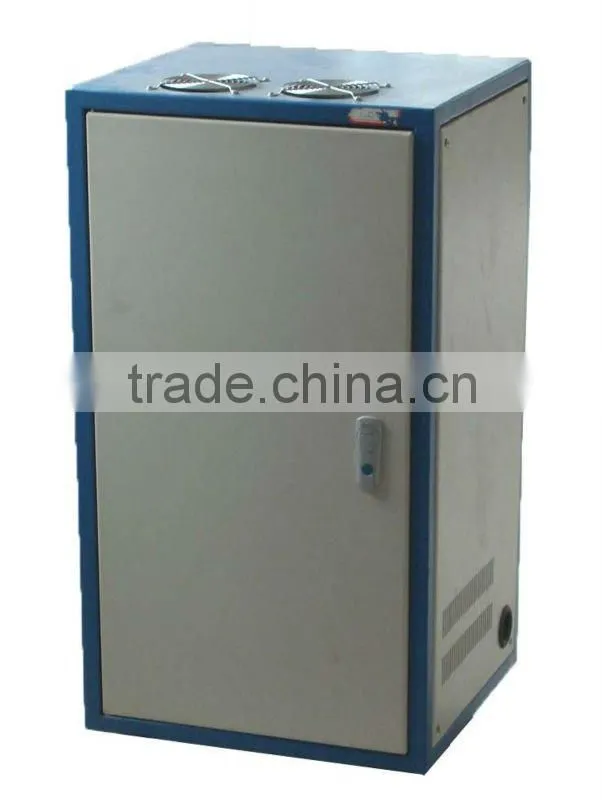

(7)Grid-tied inverter
Adopting MPPT and IGBT technologies, It inverters with high power generating capacity and wide AC voltage range. It connect with state grid and the energy storing device isn't needed. Output pure sine wave

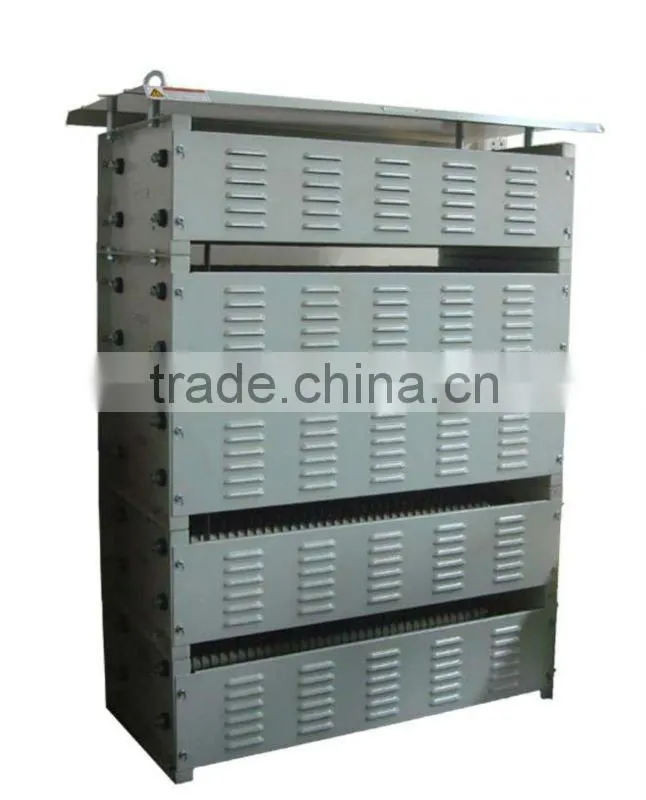

(8)Dumping Load:metal dumping box,heat dissipation by air convection,without the fan and the controlling box
4.Site Choosing of 0.1mw wind turbine system
5.FAQ:
1).What's the delivery time ?
20 working days
2).What's the warranty and service?
Five years for generator system and 2 years for other parts
3).How long are we specialized in wind turbine industry?
From 1993 till now. Expert enterprise and a well-known professional manufacturer
4).What's the unique feature about Hummer?
small, light, high efficiency, low noise with SCF generator technology

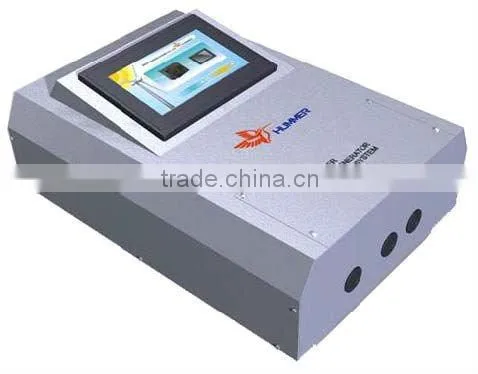

smart control system with touch screen
high wind protection
All above features with 7 patents, ranging from 500w to 100kw medium and small-sized wind turbines
5).Quality?
Strict factory inspction, SCF generator and inverter certified by CE ,UL,ETL, exported to more than 90 counties.
6).Application?
House, on-grid and off-grid, wind power plants, wind farms projects, TV transfer staions, telecommunication stations, water-pumping stations etc.
6.Factory picture
7.Certifications and honors
