Energy Conservation 12 Volt Homemade Wind Generator 500w

Name: Energy Conservation 12 Volt Homemade Wind Generator 500w
Brand: Hummer
SKU: 122491291
Availability: InStock

US$ 414 - 1,512 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Hummer

Model Number:

H2.7-500w homemade wind generator

Anhui Hummer Dynamo Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Hummer

Model Number H2.7-500w homemade wind generator

Type Wind Power Generator

Specifications

homemade wind generator
1.CE proved+7 patents
2.lighter,smaller,higher than tradition
3.SKF bearing+SCF tech

Energy Conservation 12 Volt Homemade Wind Generator 500W

Products Features

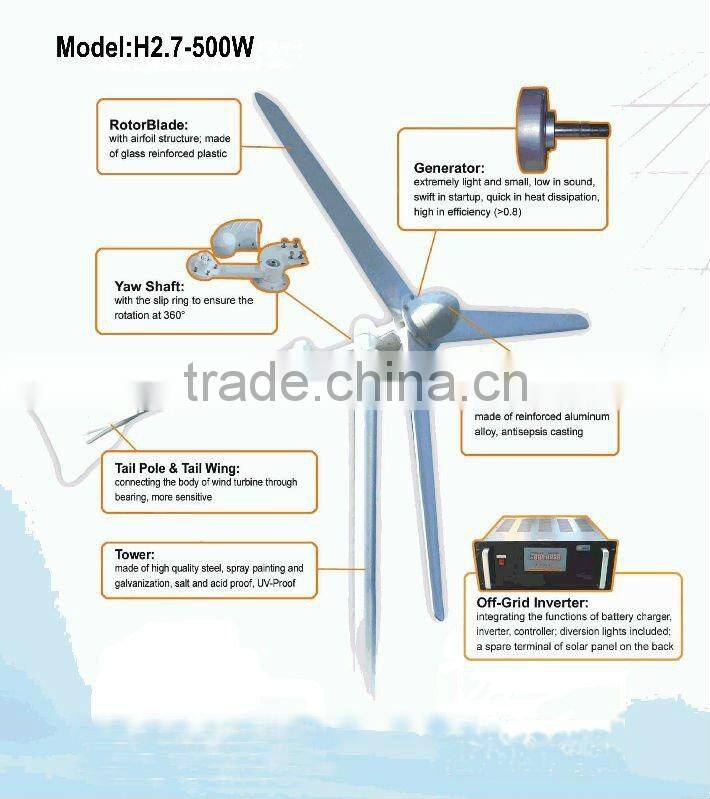

SCF (Supercritical generator technology) as core
Feature is extremely light ,small,fasting,stable with higher power efficiency .
With SKF bearings, 15 years life span without maintenance
Smart yaw shaft - furling tail design with patents for strong wind protection and balance-keeping.
7 patents and Brussels’ gold medal

Application to:

Housing, office, farm and factory

Telecommunications Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Water-pumping Station

Main technical data

Rated power (W)	500
Maximum output power (W)	1000
Charging voltage (V)	DC 24
Blade quantity	3
Blade material	GRP
Blade diameter (ft.)	9 (2.7m)
Start-up wind speed (mph)	7 (3.0m/s)
Rated wind speed (mph)	16 (7.0m/s)
Rated rotating rate (r/min)	600
Wind energy utilizing ratio (Cp)	0.48
Generator output	Frequency conversion AC
Output AC frequency (Hz)	0~300
Rated charging current (A)	16.7
The maximum charging current (in a short time)(A)	25
Generator efficiency	>0.78
Tower diameter (in.)	ø3.078.70.1 (ø7620003 mm)(3pcs)
Tower height (ft.)	20 (6m)
Generator weight (lb)	14 (6.5kg)
Suggested Battery (Ah)	120/150

H2.7-500W Off Grid Wind Turbine / SET
