Specifications
Light,smart structureHigh output efficiency
Easy instalaltion
Quite running with SKF bearings
Auto furling protection
500W 3 Blades Wind Turbine Kit Specifications
Rated power (W) |
500 |
Maximum output power (W) |
1000 |
Battery bank voltage (Vdc) |
24 |
System output voltage (Vac) |
110/220 |
Start-up wind speed (m/s) |
3 |
Rated wind speed (m/s) |
7 |
Working wind speed (m/s) |
3-25 |
Survival wind speed (m/s) |
50 |
Generator efficiency |
>0.78 |
Wind energy utilizing ratio (Cp) |
0.48 |
Generator type |
Permanent Magnet Alternator |
Generator weight (kg) |
6.5 |
Blade material/quantity |
GRP/3 |
Blade diameter (m) |
2.5 |
Speed regulation method |
Yawing+Electromagnetism braking |
Shutting down method |
Manual+Automatic |
Battery 12v 150AH/200AH |
2pcs |
Warranty |
2years |
Certification |
CE/UL/ISO |
Key Features
1.Light,smart,high efficiency with 7 National Patents
2.Lower noise and long service life with 2 SKF bearing in generator part
3.Multiple protection:mechanical furling,manual and electromagnetic braking
4.Airfoil design blades ,strictly tunnel and balance tested
5.Hot galvanizing and spray paining surface efficient to prevent the turbine from atmospheric,salt spray and aeolian erosion
6.UL and CE tested and certified,ISO standard
7.Guyed tower,free sanding tower ,optional
8.Can use wind solar hybrid system
Power curve
Structural Pictures and Description
FAQ
Sitting choose
Sound level-lower noise due toSKF bearing

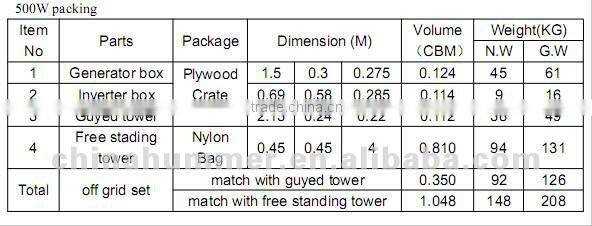

Package with fumigation-free plywood container

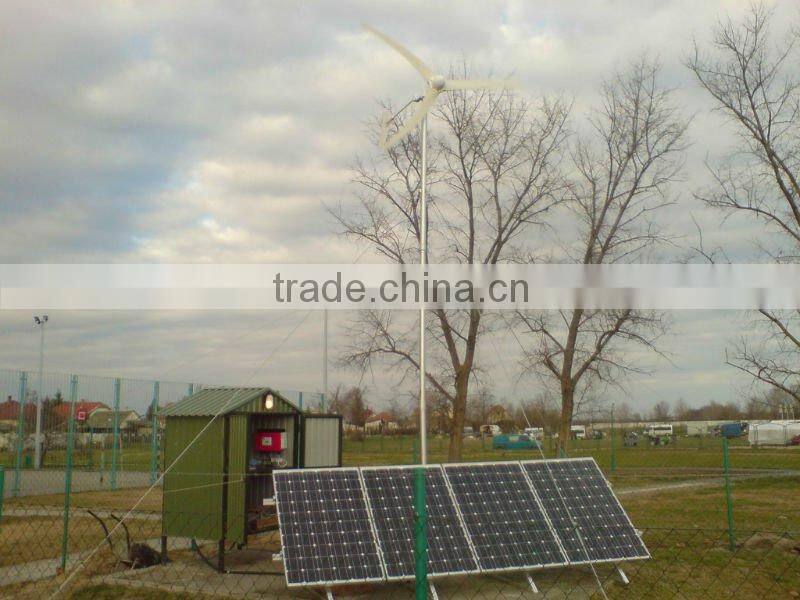

Application
Off -grid with battery backup storage
