Hummer Wind-Solar-Diesel Hybrid Power-Supply System

Specifications

Hummer Wind-Solar-Diesel Hybrid Power-Supply System

Working principle:

1. Applicable models: 1kW-50kW

2. Operation principle: the electricity from wind generator and solar panels charges the batteries after being recrified and powers the loads through the inverter. Diesel generator serves as standby when wind and solar energy can meet the power demands.

3. Features: wind turbine and solar panel as the main power supply with diesel generator as standby to guarantee the steedy power demands.

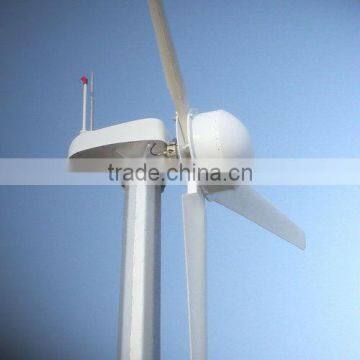

Wind generator part:

1. The biggest feature of Hummer wind turbine is the generator locating in nose cone, not in yaw shaft!

This is easy to radiate heat and reduce wind resistance, and this is one of our patents.

2. With  SCF supercritical generator technology, light in weight, small in size and high in efficiency.

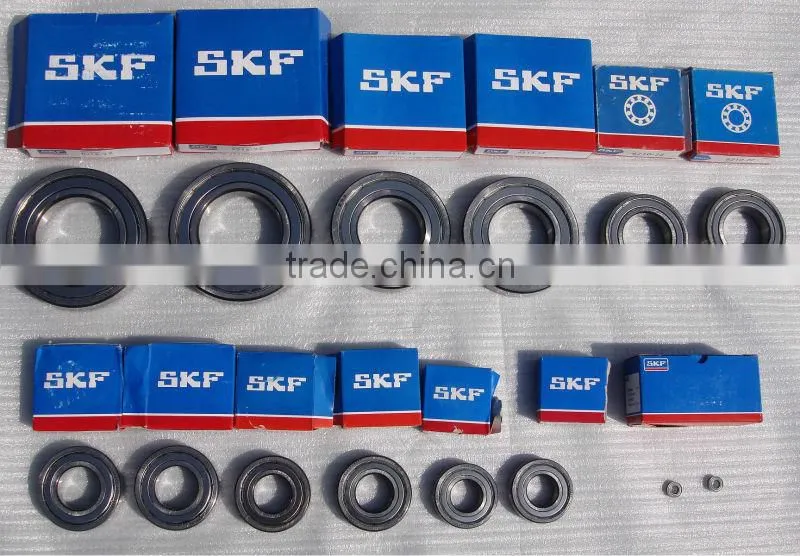

3. With 2 SKF/NSK bearings (500W-20kW with SKF, 30kW and above with NSK), free maintenance.

4. Multipe protection: mechanical furling, electrical yawing, electromagnetic braking, manual and electric hydraulic braking.

5. Siemens PLC control system with high reliability (3kW and above models match with PLC).

6. Top quality component, hummer generator body wins 4 proprietary intellectual property rights, which be made of high-efficiency magnetic materials, special copper alloy, high-strength stainless steel and aeronautic aluminum alloys, make high generating efficiency.

Solar part:

Guaranteed Mono-Crystalline Silicon Solar panel.

Aluminum Alloy frame.

Generally, the power of Solar is about 30% - 40% of the wind, for example, 5kW wind generator matches with 1500W or 2kW solar panel.

Customized is acceptable.

Diesel part:

Hummer do not supply diesel generator, customer should supply for yourself.

Application:

1) Housing, factory and hospital

2) Telecommunication Station

3) Monitoring Station (military, hydrology, observatory)

4) Wind farm station

5) Water-pumping Station

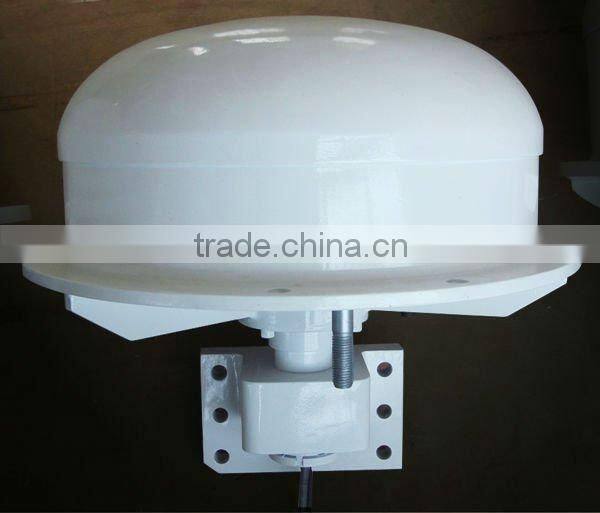

Wind generator in Nose Cone

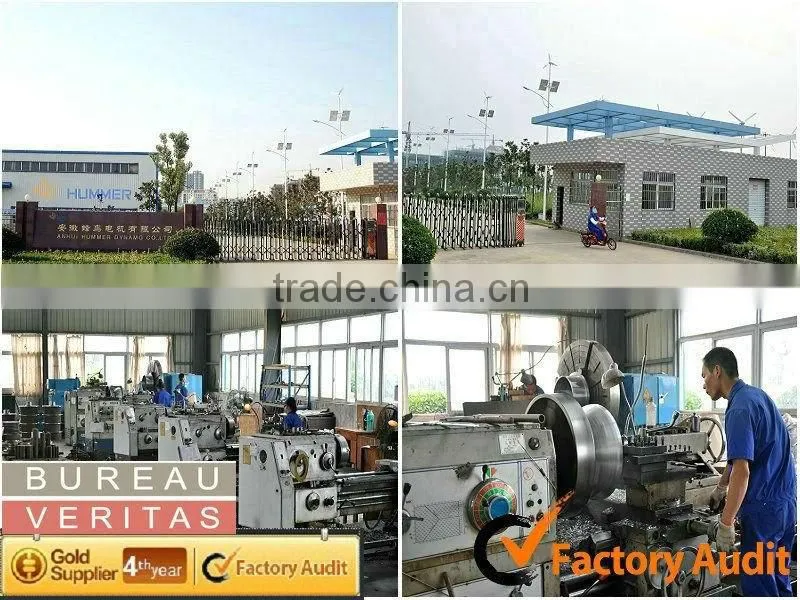

Factory Brief

Packing
