Home > Products > Wireless Repeater > repetidor celular 850mhz gsm cdma 33dBm 37dBm 40dBm 43dBm 824-849MHz 869-894MHz 2walt -20walt 90-95dbm Quality Choice

Share|

repetidor celular 850mhz gsm cdma 33dBm 37dBm 40dBm 43dBm 824-849MHz 869-894MHz 2walt -20walt 90-95dbm Quality Choice

Name: repetidor celular 850mhz gsm cdma 33dBm 37dBm 40dBm 43dBm 824-849MHz 869-894MHz 2walt -20walt 90-95dbm Quality Choice
Brand: kingtone
Price: USD $1 - 1,999 / Set

FOB Price

USD $1 - $1,999 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port XIAMEN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Fujian, China

Brand Name:

kingtone

Model Number:

KT-GSM850 repeater

Packaging Details

Carton with safty foam, or as customer required for .gsm 850mhz celular repeater 824-849MHz 869-894MHz

Product Description

GSM850 full band repeater

Specification

1, 824~849MHz / 869~894MHz
2,New Model 2014 Repeater
3, Hot Sale Product
4, Warranty: 12months

Quik Introduction of gsm850 cell phone repeater

Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Main Features of kingtone 850mhz mobile cellular repeater

High linearity PA; High system gain;

Intelligent ALC technology;

Full duplex and high isolation from uplink to downlink;

Automatic Operation convenient operation;

Integrated technique with reliable performance;

Local and remote monitoring (optional) with automatic fault alarm &remote control;

Weatherproof design for all weather installation;

Applications:

To expand signal coverage of signal blind areas where signal is weak or unavailable.

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.

cdma mobile phone signal repeater/repetidor cdma 800 /gsm850mhz Specification:

Type	KT-850MHz CDMA Repeater
Frequency	UL:824~849MHz DL:869~894MHz
Output Power	33dBm	37dBm		40dBm	43dBm
Gain	90-95dB
Gain Adjust Range	≥30dB;1dB/step
AGC Range	≥25dB
Intermodulation	-36dBc	≤-45dBc
Noise Figure	≤5dB
Ripple in Band	≤3dB
Time Delay	≤10μs
Spectrum mask	Meet ETSI specification
Spurious Emission	9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz
Port Impedance	50Ω
VSWR	≤1.5
Monitoring Mode	Local;Remote(Optional)
Power Supply	AC220V(Normal); AC110V or DC48V or Solar Powered(Optional)
Weight	25kgs	25kgs		26kgs	32kgs
Software			Standard
Local Monitoring			RS232 Port
Remote Monitoring			Via GPRS Modem
Controlled Parameters			Gain, Frequency, Repeater ON/OFF, Alarm Enable, etc.
Monitoring Parameters			Gain, Frequency, Repeater ON/OFF, Alarm Message.
Alarm Items			Repeater Failure, DC Failure, ALC Alarm, PLL Failure.

cdma mobile phone signal repeater/repetidor 800 Technical Specification:

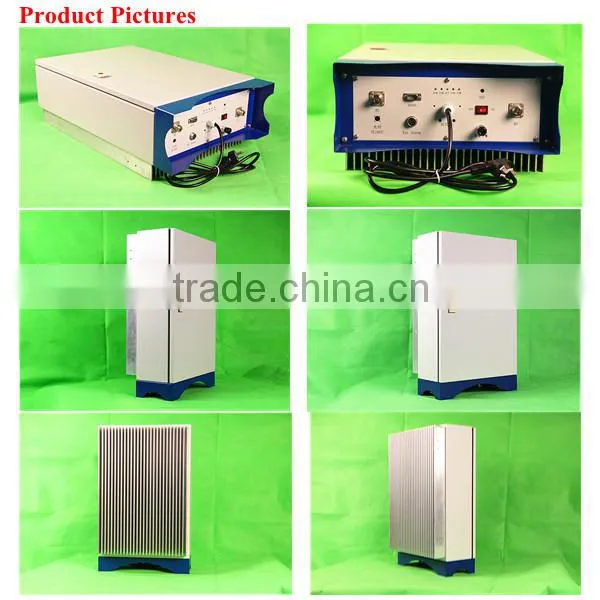

Photos of 824~849MHz / 869~894MHz repeater

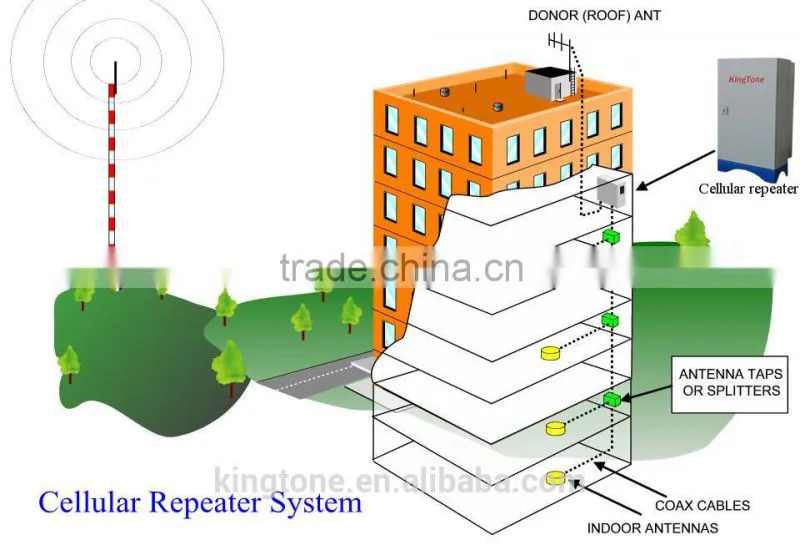

Schematic diagrams for gsm850mhz Repeater installation(In-building) :

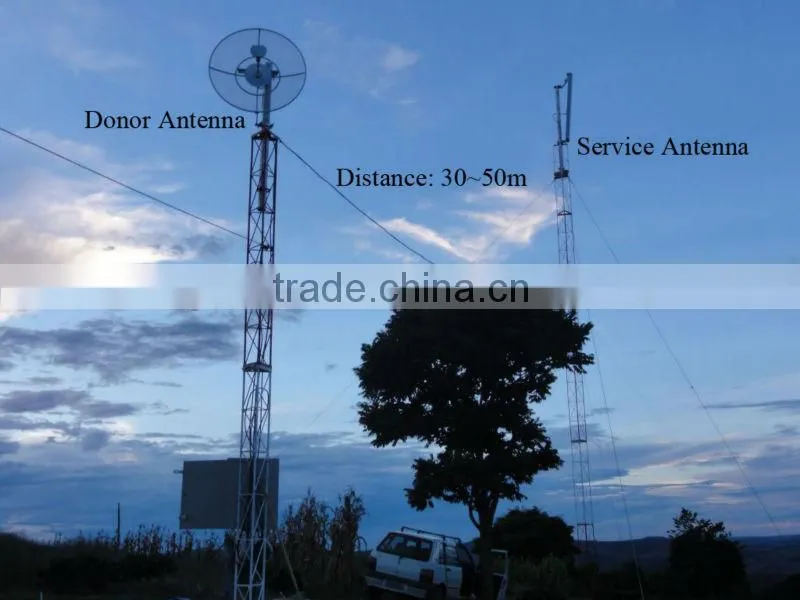

Schematic diagrams for gsm850mhz Repeater installation(Outdoor) :

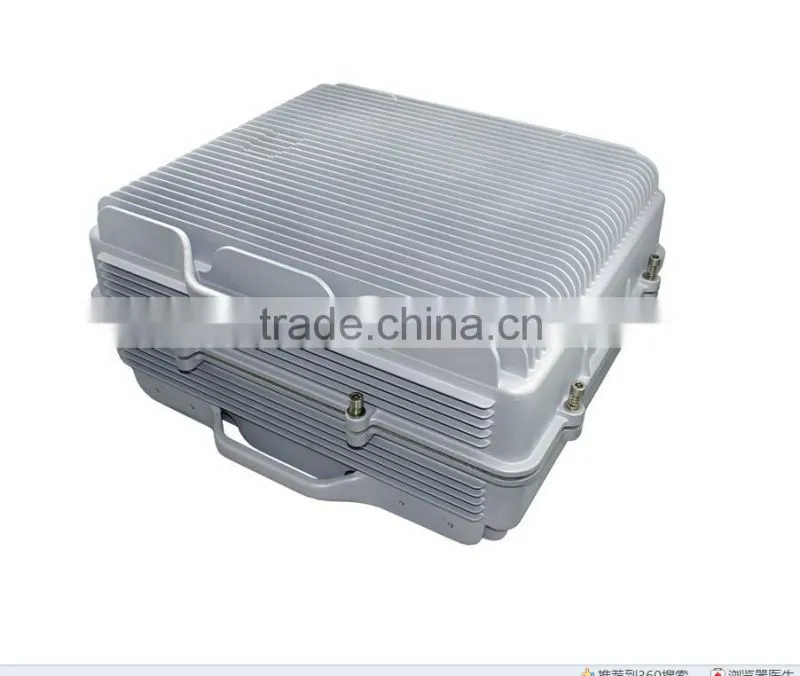

Photos of GSM 850 REPEATER :

Packaging & Shipping

2)All kind of recommend Repeater Accessories:

1.Antenna

2.Splitter

3.Connector

4.Cable

5.Functional Modules

Our Services

Company Information

Kingtone is a global mobile signal repeater/amplifier/booster manufacturer in China for more than 8 years experience. We can do as below for your best reference:

1, According to different opertors's system, the repeater can be:

GSM Repeater, DCS Repeater, CDMA Repeater, iDEN Repeater, Tetra Repeater, UMTS 3G 4G LTE Repeater etc.

2,According to different mobile signal frequencies,the repeater can be:

380MHz, 450MHz, 800MHz, 900MHz, 1800MHz, 1900MHz, 2100MHz etc.

3, According to different applications,the repeater can be:

Band Selective Repeater, Channel Selective Repeater, Frequency Shifting Repeater,Fiber Optical Repeater, Digital Fiber Optical Repeater, Trunk Amplifier etc.

4,According to different clients's request, the repeater can be:

Single Band Repeater, Dual Band Repeater, Tri-band Repeater;

5, According to different coverage areas, the repeater can be:

Low power repeater: 15dBm, 17dBm, 20dBm, 23dBm etc.

High Power repeater: 2W(33dBm) . 5W (37dBm), 10W (40dBm), 20W(43dBm) etc.

Frequency list of our repeater/repetidor /amplifier/signal booster:

Support System	Frequency Range	Output Power
GSM900MHZ	890-915MHz/935-960MHz	2W/5W/10W/20W/30W/40W/50W/60W
DCS1800MHz	1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/30W/40W/50W/60W
PCS1900MHz	1895-1910MHz/1975-1990MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA450MHz	450-457.5MHz/460-467.5MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA800MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA1900MHz	1880-1890MHz/1960-1970MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS2100MHz	1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM900/1800MHZ	890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/
GSM850/1900MHZ	824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz	2W/5W/10W/20W
GSM900/UMTS2100	890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/

Welcome to our website : for more information

FAQ

Question: I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside.

Answer: Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.

Question: When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?

Answer: Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.

You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes!

Question: I'm a production manager in a factory, and no cell phones work inside. I spend most of my time in a couple of spots. Can you help?

Answer: Factories and warehouses with lots of metal construction often have poor signals. While these buildings may be large, the employees are generally located in only a few areas.
Kingtone repeater can be easily deployed to provide coverage in those spots. The donor unit is deployed on the roof and connected to a coverage unit inside. The coverage range of up to 100,000 square feet is adequate for most trouble spots. Multiple units can be easily deployed to cover office areas and other working locations.

Question: No cell phones work in the parking garage. While many employees carry cell phones for safety, the phones aren't useful in any of the high-risk areas.

Answer: Kingtone repeater an provide coverage in parking garages above and below ground. That's useful for emergencies, and it removes the irritation of calls being dropped when you park your car.
The donor unit is placed where it can detect a signal (this might be outside or in a stairwell). It is connected to the coverage unit, which is placed in the centre of the garage up to 245 feet (75 metres) away.

Company Profile

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.

Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.

We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.

Contact Us

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.: Contact nameMars Lin; Phone86-595-28857991; Address3th Floor,Bld B,Yucheng Base, Keji Road,Fengze High-Tech Garden Quanzhou,Fujian
