kingtone gsm 850mhz celular repeater 824-849MHz 869-894MHz
high power repeater gsm 850mhz gsm cell booster repeater
Specification
1, 824~849MHz / 869~894MHz
2,New Model 2014 Repeater
3, Hot Sale Product
4, Warranty: 12months
Quik Introduction of gsm850 cell phone repeater
Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
High linearity PA; High system gain;
Intelligent ALC technology;
Full duplex and high isolation from uplink to downlink;
Automatic Operation convenient operation;
Integrated technique with reliable performance;
Local and remote monitoring (optional) with automatic fault alarm &remote control;
Weatherproof design for all weather installation;
Applications:
To expand signal coverage of signal blind areas where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
cdma mobile phone signal repeater/repetidor cdma 800 /gsm850mhz Specification:
Type |
KT-850MHz CDMA Repeater |
||||
Frequency |
UL:824~849MHz DL:869~894MHz |
||||
Output Power |
33dBm |
37dBm |
40dBm |
43dBm |
|
Gain |
90-95dB |
||||
Gain Adjust Range |
≥30dB;1dB/step |
||||
AGC Range |
≥25dB |
||||
Intermodulation |
-36dBc |
≤-45dBc |
|||
Noise Figure |
≤5dB |
||||
Ripple in Band |
≤3dB |
||||
Time Delay |
≤10μs |
||||
Spectrum mask |
Meet ETSI specification |
||||
Spurious Emission |
9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz |
||||
Port Impedance |
50Ω |
||||
VSWR |
≤1.5 |
||||
Monitoring Mode |
Local;Remote(Optional) |
||||
Power Supply |
AC220V(Normal); AC110V or DC48V or Solar Powered(Optional) |
||||
Weight |
25kgs |
25kgs |
26kgs |
32kgs |
|
Software |
Standard |
||||
Local Monitoring |
RS232 Port |
||||
Remote Monitoring |
Via GPRS Modem |
||||
Controlled Parameters |
Gain, Frequency, Repeater ON/OFF, Alarm Enable, etc. |
||||
Monitoring Parameters |
Gain, Frequency, Repeater ON/OFF, Alarm Message. |
||||
Alarm Items |
Repeater Failure, DC Failure, ALC Alarm, PLL Failure. |
||||
cdma mobile phone signal repeater/repetidor 800 Technical Specification:

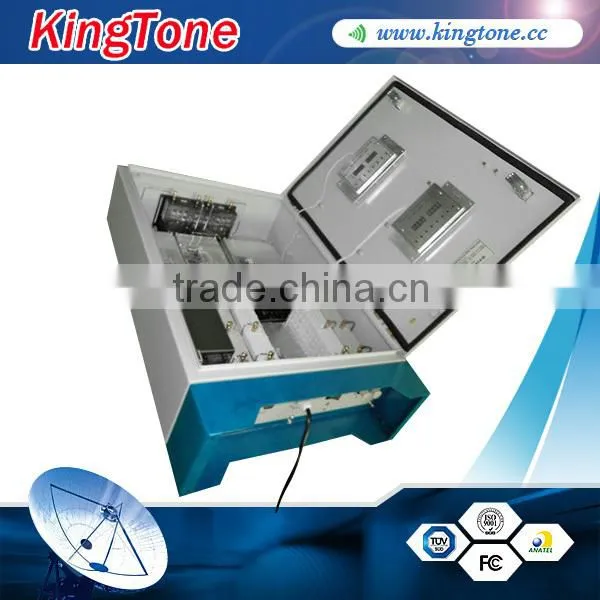

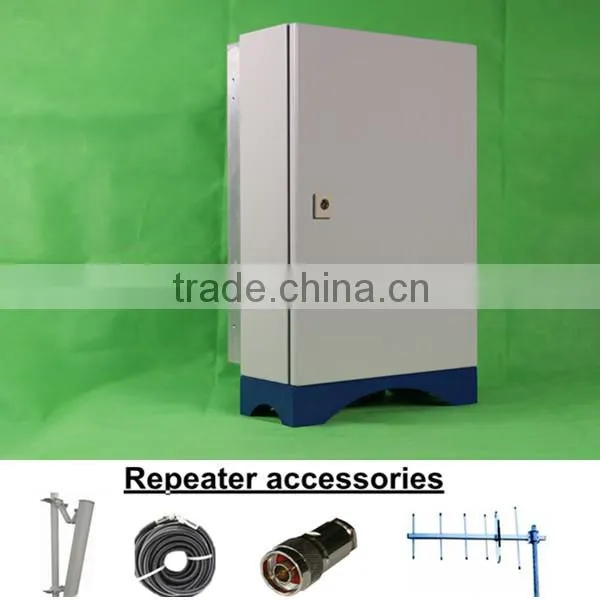

Photos of 824~849MHz / 869~894MHz repeater

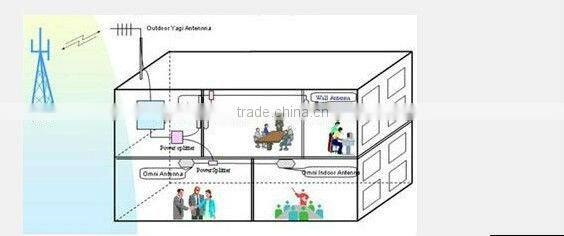

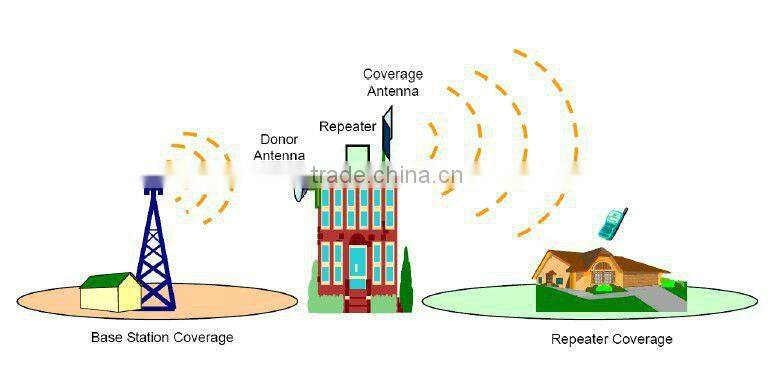

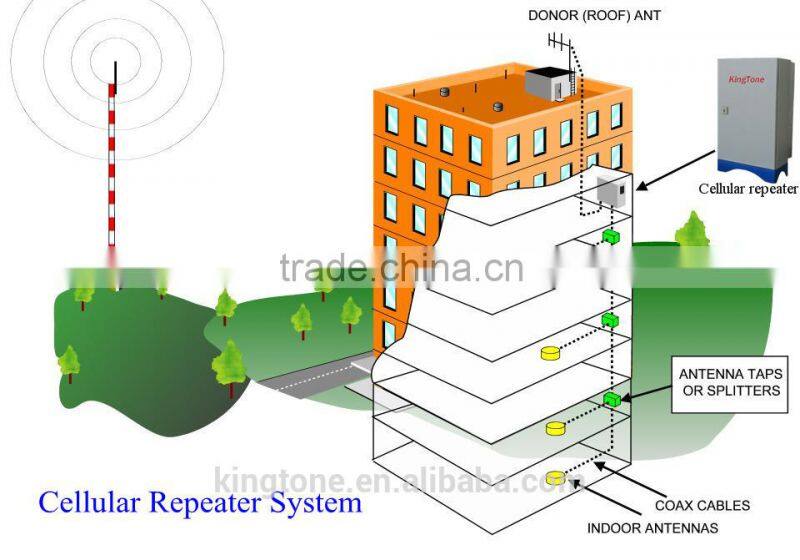

Schematic diagram for installation(Outdoor & In-Building) :

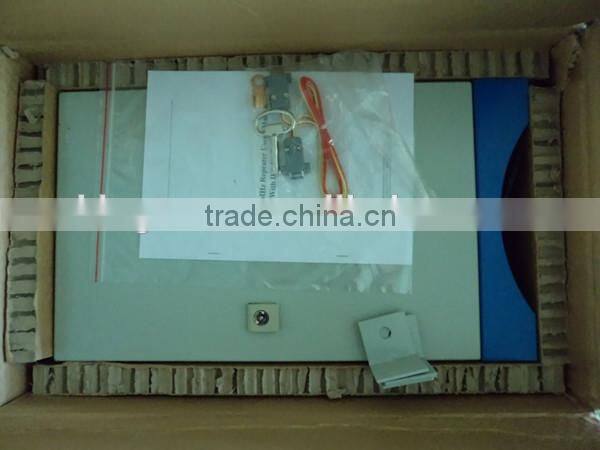

Photos of repeater 5 watts gsm 850mhz 37dBm 824-849MHz 869-894MHz 90-95db

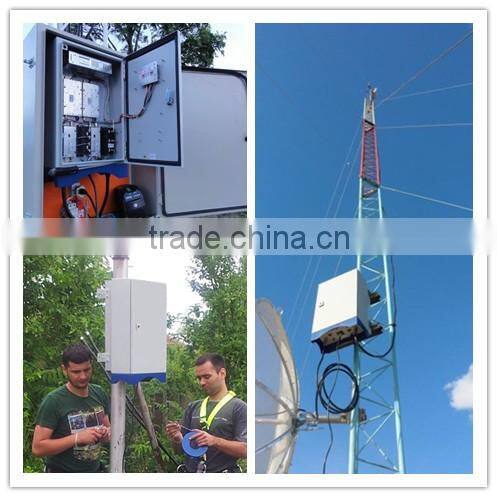

Project photos from our customer :
Frequency list of our repeater/repetidor /amplifier/signal booster:
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Question: I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside.
Answer: Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.
Question: When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?
Answer: Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.
You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes!
Question: I'm a production manager in a factory, and no cell phones work inside. I spend most of my time in a couple of spots. Can you help?
Answer: Factories and warehouses with lots of metal construction often have poor signals. While these buildings may be large, the employees are generally located in only a few areas.
Kingtone repeater can be easily deployed to provide coverage in those spots. The donor unit is deployed on the roof and connected to a coverage unit inside. The coverage range of up to 100,000 square feet is adequate for most trouble spots. Multiple units can be easily deployed to cover office areas and other working locations.
Question: No cell phones work in the parking garage. While many employees carry cell phones for safety, the phones aren't useful in any of the high-risk areas.
Answer: Kingtone repeater an provide coverage in parking garages above and below ground. That's useful for emergencies, and it removes the irritation of calls being dropped when you park your car.
The donor unit is placed where it can detect a signal (this might be outside or in a stairwell). It is connected to the coverage unit, which is placed in the centre of the garage up to 245 feet (75 metres) away.
