Pico Repeater Signal Amplifier Indoor 3G WCDMA ICS Smart Repeater
1.OEM&ODM
2.Practical, easy to install
3.24 month warranty
ICS Pico Repeater, WCDMA ICS Repeater, WCDMA Pico ICS Repeater
Brief:
As a quick solution of covering the area with the weak mobile communication signal, the Pico ICS repeater developed with the ICS technology is equipped with the operating when powered on , dispensing with the configuration, with its typical application scenes including such indoor places as the residences, meetings, business, offices, etc.
Features:
1 Built-in antenna, small size and convenient for installation.
2 The donor antenna can be chosen the built-in or outlay according to the difference of the environment.
3 3G WCDMA system supports the automatic search and lock functions of the frequency points.
4 Support the continuous operation bandwidth of maximum 75M.
5 3G WCDMA system supports 16 frequency points at most.
Specification:
Parameter |
Uplink |
Downlink |
Frequency Range |
1920MHz-1980MHz |
2110MHz-2170MHz |
Bandwidth |
15MHz (Continuous 3 carrier) |
|
Gain |
|
75dB±3dB |
Output Power |
15dBm±3dB |
15dBm±3dB |
Gain Adjustment Range |
30dB, Step 1dB |
|
Max. Damage Input Power |
-10dBm |
|
Gain Adjustment Step Error |
≤1dB (1-20dB); ≤1.5dB / (20-30dB) |
|
ALC |
>20dB |
|
Ripple in Band |
≤3dB p-p |
|
ACRR |
≥20dB offset ±5MHz; ≥20dB offset ±10MHz |
|
Noise Figure |
≤6dB |
≤6dB |
VSWR |
≤2.0 |
|
Frequency stability |
0.01ppm |
|
Time Delay |
≤10.5us |
|
EVM |
≤ 12.5%@75dB |
|
Intermodulation |
Comply with 3GPP TS 25. 106 |
|
Automatic Gain Control |
≥30dB |
|
PCDE |
≤-35dB |
|
Out of band Rejection |
≤ 60dB @ 2.7MHz≤f_offset <3.5MHz ≤ 45dB @ 3.5MHz≤f_offset <7.5MHz ≤ 45dB @ 7.5MHz≤f_offset <12.5MHz ≤ 35dB @ 12.5Mhz ≤f_offset |
|
Spurious emission |
In band: 2.515MHz<f_offset<2.715MHz: ≤-22dBm/30kHz 2.715MHz<f_offset<3.515MHz: ≤-22dBm/30kHz 3.515MHz<f_offset<4.0MHz: ≤-34dBm/30kHz 4.0MHz<f_offset<8.0MHz: ≤-21dBm/1MHz 8.0MHz<f_offset<f_offsetmax: ≤-25dBm/1MHz |
|
|
Outoff Band: 9kHz~150kHz≤-36dBm/1kHz 150kHz~30MHz≤-36dBm/10kHz 30MHz~1GHz≤-36dBm/100kHz 1GHz~12.75GHz≤-30dBm/1MHz | ||

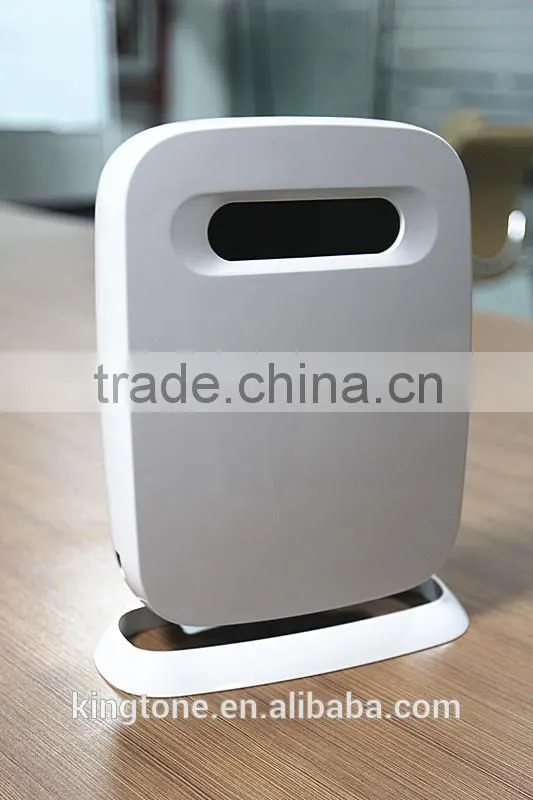

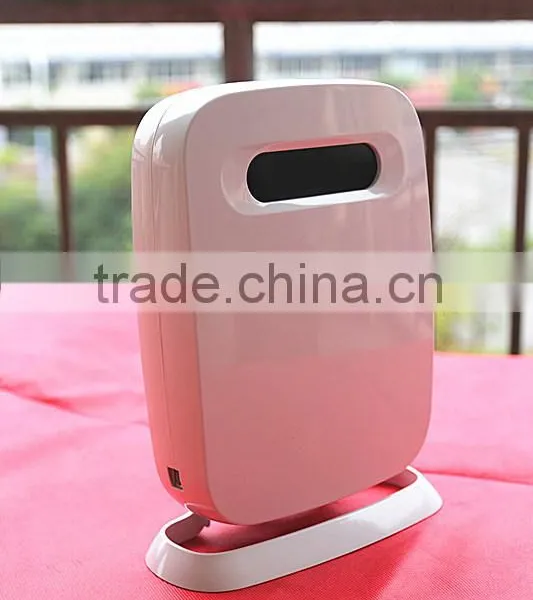

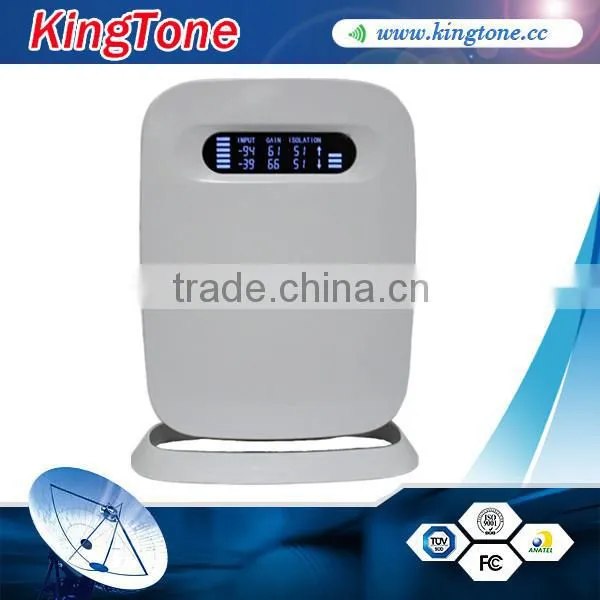

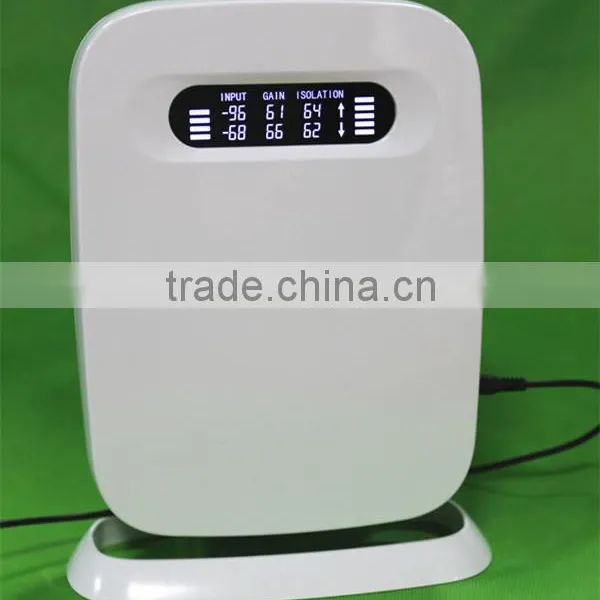

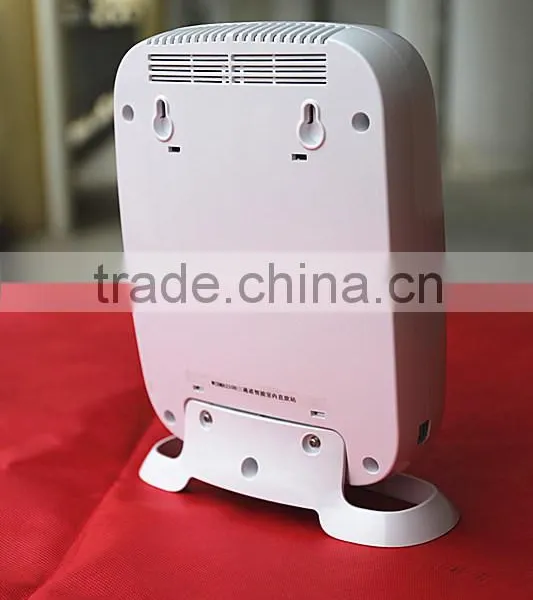

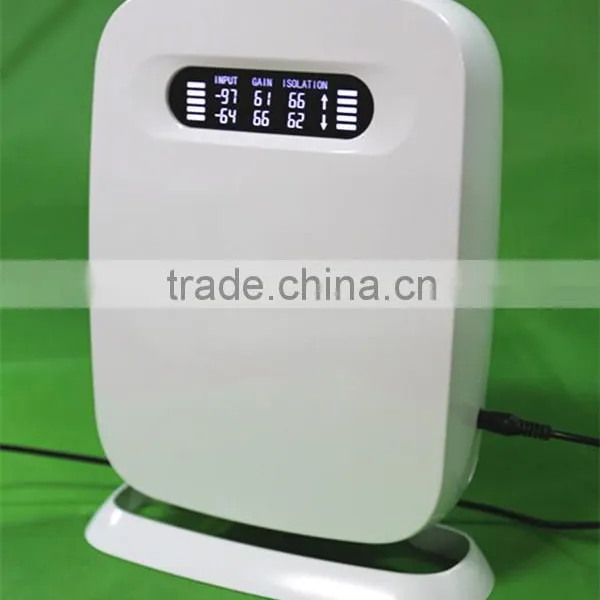

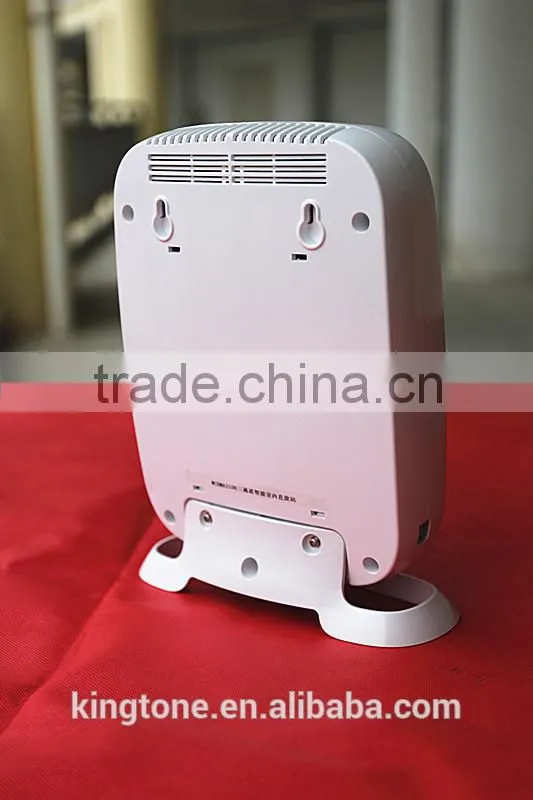

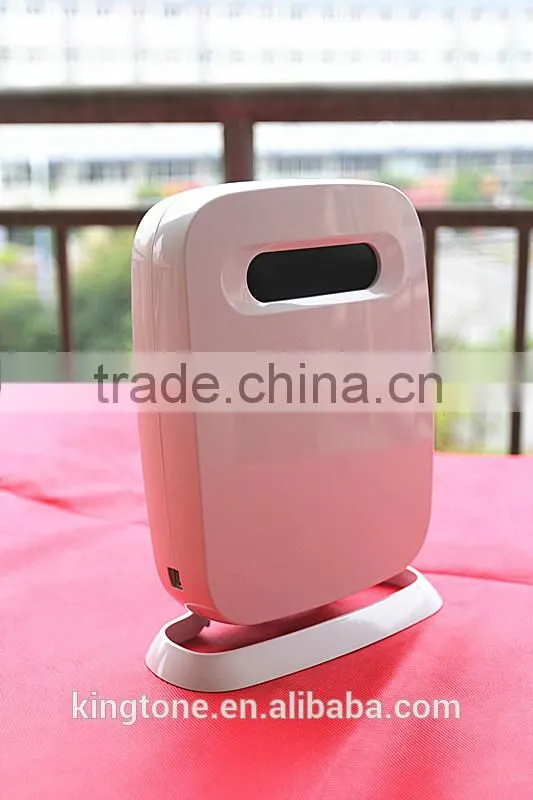

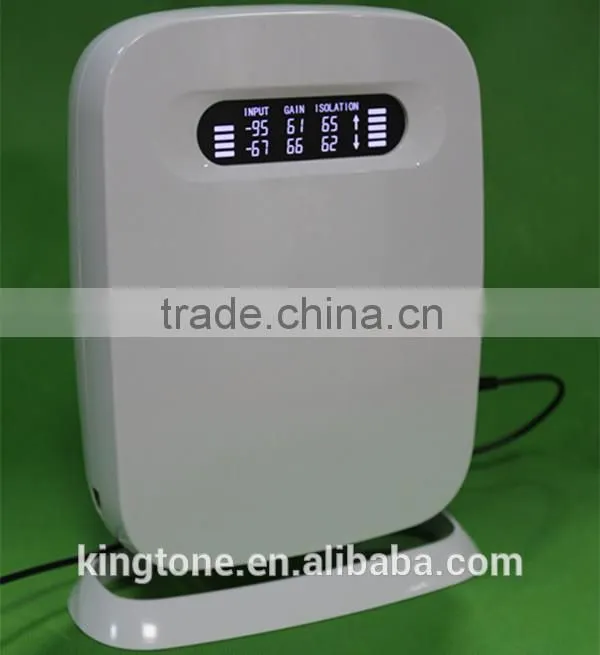

Photos of the 3G WCDMA ICS PICO REPEATER :

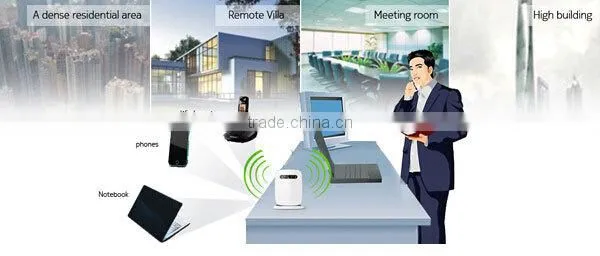

Applications:
Small regions signal blind or weak signal area, such as underground or semi-underground place of business ,basements ,underground parking ,etc.
small-scale hot-spot signal Complaints areas ,such as conference rooms ,a small supermarket,small shopping malls ,the office and small public areas ,etc.
Traffic and large social influence areas ,such as bars ,cafes ,dance halls ,cafes ,fitness clubs ,leisure and entertainment,etc.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex and EMS.
UPS,DHL,FEDEX: 3-7 WORKING DAYS TO MOST COUNTRY
EMS: 7-10 WORKING DAYS TO MOST COUNTRY
Our present manufacturing service:
1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band Repeater
2. Dual Band Repeater
3. Tri band Repeater
4. Optic Fiber Repeater
5. Wide Band Repeater
6. Channel Selective Repeater
7. ICS Repeater
2)All kind of Repeater Accessories, including:
1.Antenna
2.Splitter
3.Connector
4.Cable
5.Functional Modules
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly !
|
|||||
| |||||
|
To know more about our repeater, kindly visit our website:
