gsm 900 mobile cellular signal repeater/amplifier
Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
gsm 900 mobile cellular signal repeater/amplifier Functions
The GSM Signal Repeater works at the mode of full duplexer. Not only amplifying the BTS weak signals then sending them to the mobile phone,but also extending the mobile phone signals then transmitting them to BTS.
gsm 900 mobile cellular signal repeater/amplifier Main Features
1) Modular design enables easy upgrade to additional bands at a relatively low cost;
2) Advanced technology,flexibility and proved reliability;
3)Lower acquisition costs and operational costs;
4)Easy to install and small footprint with no need for expensive transmission lines,special cabinets.
gsm 900 mobile cellular signal repeater/amplifier Typical Application
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Outdoor:Airports,Tourism Regions,Golf Courses,Tunnels,Factories,Mining Districts,Village etc.
Indoor:Hotels,Exhibition Centers,Basements,Shopping Malls,Offices,Packing Lots etc.
gsm900 mobile signal repeater Technical Specifications
GSM850MHz: Uplink: 824.00~849.00MHz, Downlink: 869.00~894.00MHz;
GSM900MHz: Uplink: 890.00~915.00MHz, Downlink: 935.00~960.00MHz;
GSM1800MHz: Uplink:1710.00~1785.00MHz, Downlink: 1805.00~1880.00MHz;
Output Power: 33dBm,37dBm,40dBm,43dBm (Customized)
Gain: 95dB
Items |
GSM900MHz Band Selective Repeater |
||
Frequency Range |
Uplink |
890-915MHz |
|
Downlink |
935-960MHz |
||
Output Power |
Uplink |
Min +23dBm- +33dBm |
|
Downlink |
Min. +30dBm- +43dBm |
||
Working Bandwidth |
Various bandwidth is available upon request |
||
Gain |
Min. 90dB |
||
AGC Control Range |
Min 40dB (+/-2dB) |
||
Gain Control Range |
31dB (1dB Step) |
||
VSWR |
< 1.5 |
||
Ripple in Band |
Max +/-1.5dB |
||
Inter modulation attenuation |
≤-45dBc ; ≤-36dBc |
||
|
Spurious Emissions |
9KHz-1GHz |
Max -36dBm |
|
1GHz-12.75GHz |
Max -30dBm |
||
RF Connector |
N-type Female |
||
I/O Impedance |
50 ohm |
||
Noise Figure |
Max 5dB |
||
Group Time Delay |
Max 5µS |
||
Temperature Range |
-25 degree Celsius to +55 degree Celsius |
||
Relative Humidity |
Max 95% |
||
MTBF |
Min. 100,000 hrs |
||
Power Supply |
DC -48V / AC220V/110V (+/-15%), 50Hz/60Hz |
||
NMS Monitor Function(Optional) |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
||
Remote Control Module(Optional) |
RS232 + Wireless Modem + Chargeable Li-ion Battery |
||

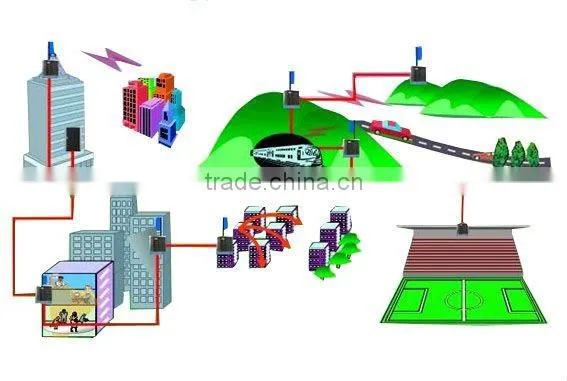

Repeater In-Building Coverage Solution :
Repeater Outdoor Coverage Solution:
GSM Signal Repeater 850MHz,900MHz,1800MHz
GSM rf Wireless Signal Repeater 800MHz/850MHz/900MHz/1800MHz Repeater out power: 33dBm~43dBm
Welcome to OEM ,For more information,refer to our website:
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly !
|
|||||
| |||||
|
