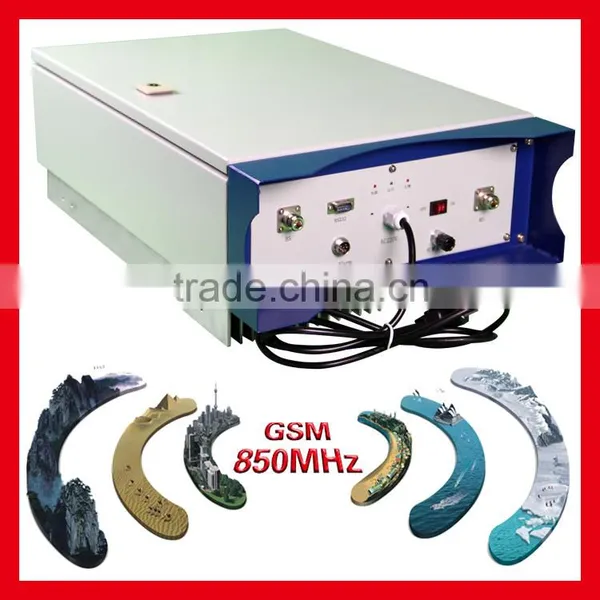

Help CenterKINGTONE 20W 43dBm GSM 850 RF Cellular Repeater
Related Products
-
GSM 850 RF Band Selective Cellcular RepeaterUS$ 1 - 1,999MOQ: 1 Set -
33dBm~43dBm OEM GSM900 Cellular Mobile Repeater /booster/ AmplifierUS$ 1 - 1,999MOQ: 1 Set
-
Kington Amplifier Gsm Repeater 900 for Outdoor Coverage AmplifierUS$ 1 - 1,999MOQ: 1 Set
-
sm 900 Single Band Cellular Repeater Gsm Repeater 5w Repeater 900US$ 1 - 1,999MOQ: 1 Set
-
Kingtone High Power Gsm Repeater ,30W GSM 900 Outdoor Repeater,900mhz Cell Phone RepeaterUS$ 1 - 1,999MOQ: 1 Set
2) Reduce radiation from Cell Phone;
3) Easy to install;
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm; And can meet the requirement of antenna isolation to avoid
self-oscillation.
GSM850 broadband cell phone wireless RF Repeater Function:
- Waterproof chassis suitable for indoor and outdoor service;
- Metal cavity filter technology inside, which gives wider receiving and sending separation, better gain flatness, higher stability, and lower noise figure;
- lFull-duplex & dual-port design, and built-in power supply, making it convenient for installation;
- Allowing for continuous gain adjustment and gain contrast;
- ALC technology used to provide auto amplitude fixing.
GSM850 broadband cell phone wireless RF Repeater Application:
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages
Dimensions and Weight:
Dimensions(package size): 670(mm)×450(mm)×300(mm)
Weight: N.W.21.6KG G.W.24KG
Items |
Testing Condition |
Specification |
||
Uplink |
Downlink |
|||
Working Frequency(MHz) |
Nominal Frequency |
824 – 849MHz |
869 - 894MHz |
|
Gain(dB) |
Nominal Output Power-5dB |
95±3 |
||
Output Power (dBm) |
GSM modulating signal |
37 |
43 |
|
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
||
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
||
Time Delay (us) |
Working in-band |
≤5 |
||
Peak Phase Error(°) |
Working in-band |
≤20 |
||
RMS Phase Error (°) |
Working in-band |
≤5 |
||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
|
20dB |
Nominal Output Power -5dB |
±1.0 |
||
30dB |
Nominal Output Power -5dB |
±1.5 |
||
Inter-modulation Attenuation (dBc) |
Working in-band |
≤-45 |
||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
|
VSWR |
BS/MS Port |
1.5 |
||
I/O Port |
N-Female |
|||
Impedance |
50ohm |
|||
Operating Temperature |
-25°C ~+55°C |
|||
Relative Humidity |
Max. 95% |
|||
MTBF |
Min. 100000 hours |
|||
Power Supply |
DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%) |
|||
Remote Monitoring Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power |
|||
Remote Control Module |
RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
|||
GSM 850 RF cellular Repeater 20W 43dBm
GSM 850 RF cellular Repeater 20W 43dBm
GSM 850 RF cellular Repeater 20W 43dBm
GSM 850 RF cellular Repeater 20W 43dBm
GSM 850 RF cellular Repeater 20W 43dBm
GSM 850 RF cellular Repeater 20W 43dBm
Frequency range list for our repeaters :
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
Welcome to OEM! Welcome to our website: For more information !
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Tell: 86 595 28857991 Fax: 86 595 22155502 Mobile:86 13506927982 skype: cary.cao4 Web: ; |
