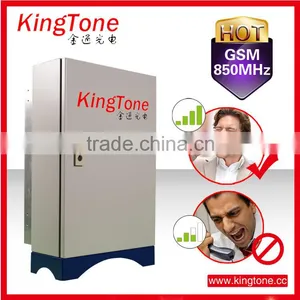

GSM 850 RF band selective cellcular Repeater

Name: GSM 850 RF band selective cellcular Repeater
Brand: kingtone
Price: USD $1 - 1,999 / Set

FOB Price

USD $1 - $1,999 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port XIAMEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Fujian, China

Brand Name:

kingtone

Model Number:

KT-CRP-B25-P33-B

Packaging Details

1,Cartons lined with safety foam; 2,Customized;

Product Description

GSM850mhz RF band selective wireless cellcular Repeater booster broadband wireless RF Repeater

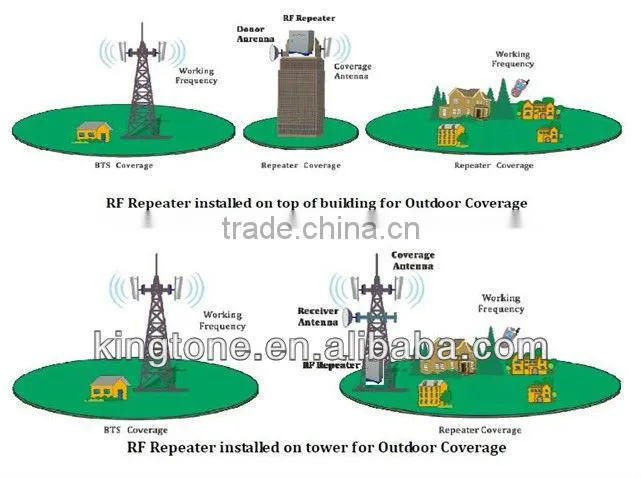

Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

1) Improve Cell Phone communication;
2) Reduce radiation from Cell Phone;
3) Easy to install;

Application:

Repeater is to provide radio coverage in a flexible and efficient way. Among the things with reference to the design it can be difficult to spread coverage a

ll the way into side isles, narrow hallways, several storys, combined with different building materials. More over, if there are many people constantly moving, for instance in shopping malls, and the demand for coverage varies from one spot to another as well as during the day and during the week, satisfying the growing demand for capacity becomes a challenge. The same storys can been occurred in some villa group, Subway, Speedway, etc. So the repeater can gives you the optimal solution.

GSM850mhz RF band selective wireless cellcular Repeater booster

lWaterproof chassis suitable for indoor and outdoor service;

lMetal cavity filter technology inside, which gives wider receiving and sending separation, better gain flatness, higher stability, and lower noise figure;

lFull-duplex & dual-port design, and built-in GSM850mhz RF band selective wireless cellcular Repeater booster power supply, making it convenient for installation;

lAllowing for continuous gain adjustment and gain contrast;

lALC technology used to provide auto amplitude fixing.

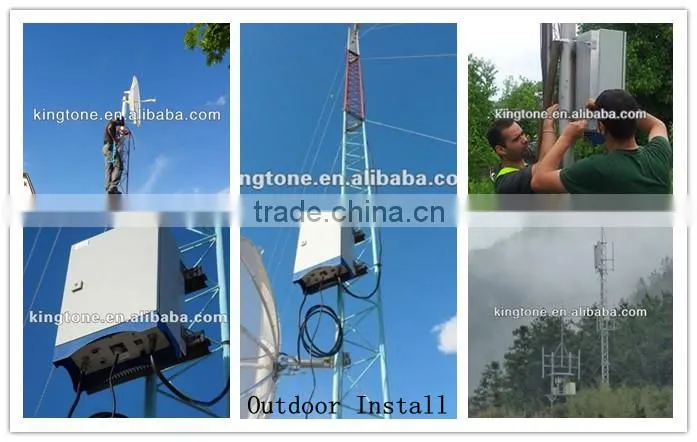

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Items		Testing Condition	Specification
			Uplink	Downlink
Working Frequency(MHz)		Nominal Frequency	824 – 849MHz	869 - 894MHz
Gain(dB)		Nominal Output Power-5dB	90±3
Output Power (dBm)		GSM modulating signal	33	33
ALC (dBm)		Input Signal add 20dB	Po≤±1
Noise Figure (dB)		Working in-band(Max. Gain)	≤5
Ripple in-band (dB)		Nominal Output Power -5dB	≤3
Frequency Tolerance (ppm)		Nominal Output Power	≤0.05
Time Delay (us)		Working in-band	≤5
Peak Phase Error(°)		Working in-band	≤20
RMS Phase Error (°)		Working in-band	≤5
Gain Adjustment Step (dB)		Nominal Output Power -5dB	1dB
Gain Adjustment Range(dB)		Nominal Output Power -5dB	≥30
Gain Adjustable Linear(dB)	10dB	Nominal Output Power -5dB	±1.0
	20dB	Nominal Output Power -5dB	±1.0
	30dB	Nominal Output Power -5dB	±1.5
Inter-modulation Attenuation (dBc)		Working in-band	≤-45
Spurious Emission(dBm)	9kHz-1GHz	BW:30KHz	≤-36	≤-36
	1GHz-12.75GHz	BW:30KHz	≤-30	≤-30
VSWR		BS/MS Port	1.5
I/O Port		N-Female
Impedance		50ohm
Operating Temperature		-25°C ~+55°C
Relative Humidity		Max. 95%
MTBF		Min. 100000 hours
Power Supply		DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)
Remote Monitoring Function		Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power
Remote Control Module		RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery

Product Overviews

repeater service

Frequency range list for our repeaters :

Support System	Frequency Range	Output Power
GSM900MHZ	890-915MHz/935-960MHz	2W/5W/10W/20W/30W/40W/50W/60W
DCS1800MHz	1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/30W/40W/50W/60W
PCS1900MHz	1895-1910MHz/1975-1990MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA450MHz	450-457.5MHz/460-467.5MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA800MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA1900MHz	1880-1890MHz/1960-1970MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS2100MHz	1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM900/1800MHZ	890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/
GSM850/1900MHZ	824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz	2W/5W/10W/20W
GSM900/UMTS2100	890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/

Our repeater support above frequency range .

Our present manufacturing service:

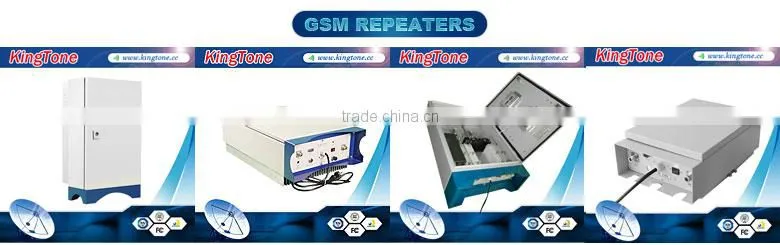

1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA

2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;

3. Tri-band repeater of GSM/DCS/WCDMA

4,Trunk Amplifier

5. All kind of Antenna/Splitter/Connector/Cable

Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?

Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.

Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.

Kingtone repeater can be deployed even without access to the roof or outside.

package&shipment

Company Profile

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.

Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.

We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
