TETRA cable-access MDAS Fiber Optic Repeater 350mhz 420mhz 500mhz band

Name: TETRA cable-access MDAS Fiber Optic Repeater 350mhz 420mhz 500mhz band
Brand: KingTone
Price: USD $1 - 1,999 / Set

FOB Price

USD $1 - $1,999 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Xiamen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Fujian, China

Brand Name:

KingTone

Model Number:

KT-PTB9/43-B19-V1

Packaging Details

Carton with safty foam ,or as customized.

Product Description

Specifications

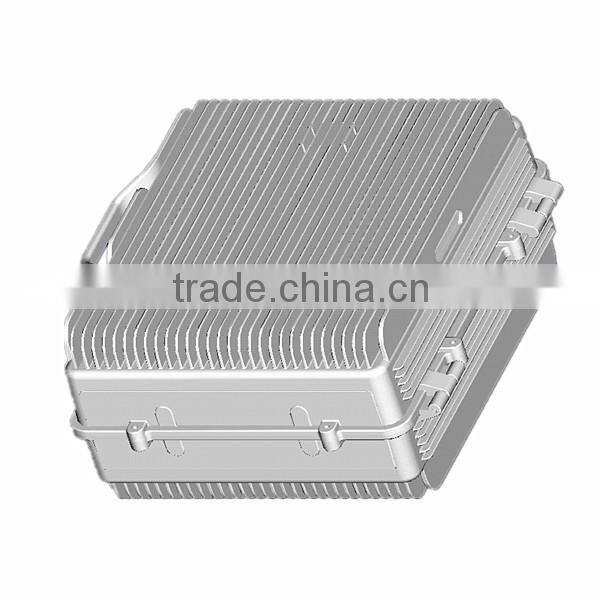

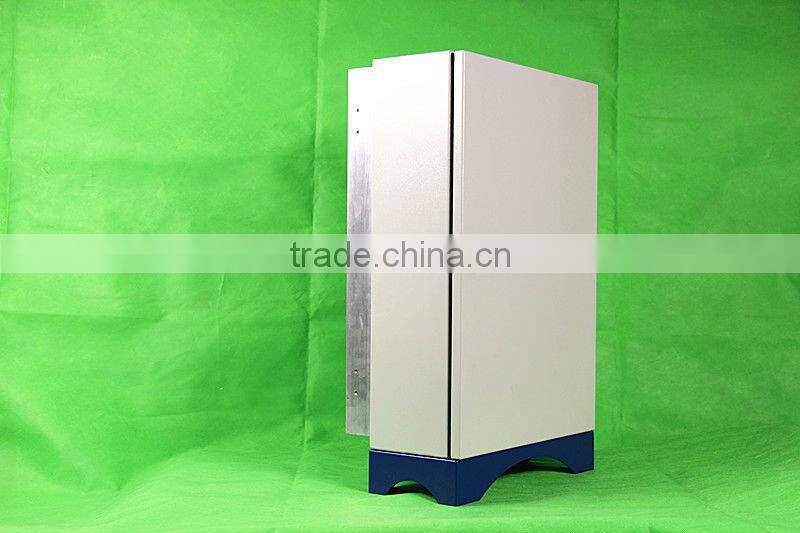

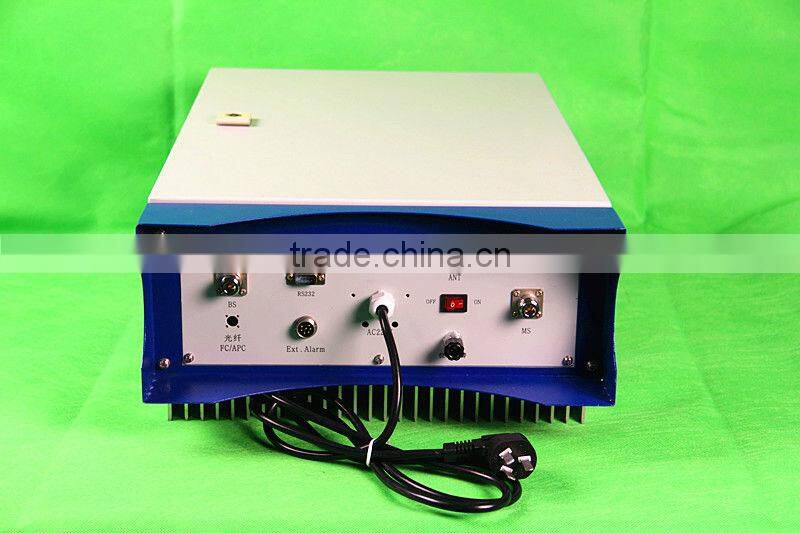

TETRA cable-access MDAS Fiber Optic Repeater 350mhz 420mhz 500mhz
1.Fexible production
2.OEM/ODM serviced
3.Low MOQ

Product Description

Product Description

TETRA cable-access MDAS Fiber Optic Repeater is used to enlarge the signal of TETRA equipment. The Master Optical Unit System captures the BTS signal of TETRA and converts it into optic signal and transmits the amplified signal to the Remote Optical Unit via fiber optic cables. The Remote Optical Unit will reconvert the optic signal into TETRA signal and then converse Downlink Amplifier and provide the signal to the areas where net work coverage is inadequate.

And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction. The distribution system by our company independent research and development is composed by Master Optical Unit and Remote Optical Unit. The internal module is integrated, the highly integrated technology is improve the stability of the equipment.

Product Features

High level, high availability, convenient for maintain;

Internal adopt intelligent monitoring, is convenient to locate the faults for maintain;

Low power consumption, excellent heat dissipation;

High linearity PA, high system gain;

Local and remote monitoring;

Compact size, flexible for installation and relocation;

ETSI compatible

MOU RF Specification
Items		Downlink	Uplink		Memo
Working Frequency	350MHz Band	350-357MHz	360-367MHz		Need to specify the band when place order
	420MHz Band	410-417MHz	420-427MHz
	500MHz Band	500-507MHz	510-517MHz
RF Input level range for each RF input port		-5dBm~0dBm	/		Recommended input level: 0dBm
Max RF input without damage		10dBm	/		Caution: over input power may cause permanently damage
RF Output Level		/	-5±2dBm
Spurious emissions and Wideband noise	Discrete spurious:	9kHz-1GHz /BW:30KHz	≤-36dBm	≤-36dBm
		1GHz-4GHz /BW:1MHz	≤-30dBm	≤-30dBm
	Wideband noise	100 kHz – 250 kHz	-75dBc	-78dBc	NOTE: frb denotes the frequency offset corresponding to the near edge of the receive band or 5 MHz whichever is greater.
		250 kHz – 500 kHz	-80dBc	-83dBc
		500 kHz – frb	-80dBc	-85dBc
		>frb	-100dBc	-100dBc
	Radiated emissions	30 MHz to 1 GHz	≤-36dBm
		1 GHz to 4 GHz	≤-30dBm
Intermodulation attenuation (dBc)	RBW30 kHz	≤-36dBm			The interfering signal shall be unmodulated and have a frequency offset of at least 500 kHz from the carrier frequency. The power level of the interfering signal shall be 50 dB below the power level of the modulated output signal from the transmitter under test
Out of band gain	50 kHz Frequency offset from the - 6 dB point	75 dB
	75 kHz requency offset from the - 6 dB point	70 dB
	125 kHz requency offset from the - 6 dB point	65 dB
	250 kHz requency offset from the - 6 dB point	32 dB

400 uhf mobile signal link repeater

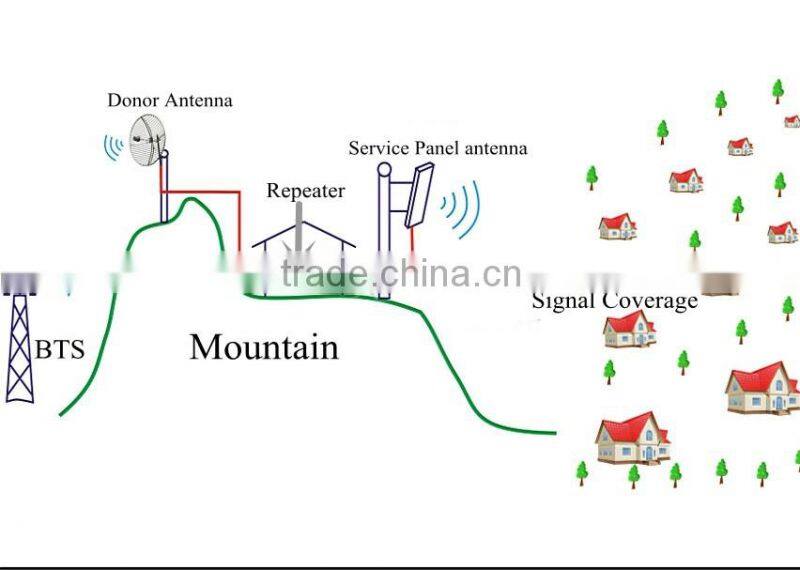

Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

400 uhf mobile signal link repeater Applications:

To expand signal coverage of signal blind areas where signal is weak or unavailable.

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.

400 uhf mobile signal link repeater Function:

To amplify all signals in the whole band
Wireless repeater
Software control
Easy to install on wall or pole

400 uhf mobile signal link repeater Features:

1.Monitoring software can be upgraded locally or remotely.

2.Wide dynamic range, low power consumption and noise figure. Protection from over voltage, over current and over temperature

3.High isolation from uplink to downlink to improve high stability.

4.High reliability and MTBF≥100,000 hours

5.Perfect remote and local network monitoring function.

6.Avoid interference from co-frequency

7.Enlarge the coverage area with omni directional antenna

8Extend the signal distance of base station

9.Backup batteries

10.Main module self-test and auto alarm.

11.Door open alarm

12ALC(auto level control) ,etc.

400 uhf mobile signal link repeater Technical Specification:

Packaging & Shipping

Our Services

Company Profile

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.

Established in 2006, Kingtone is a high-tech enterprise specialized in developing, producing and selling wireless communication equipments and microwave functional module, such as Repeater for cell phone network, Mobile phone Jammer ,Handheld Transceivers, Vehicle Radio,Marine Radios etc.. Located in Quanzhou City of Fujian Province, we enjoy comfortable environment and convenient transportation. Covering an area of 1710 square meters, our factory is equiped with cutting-edge spectral analyzer, network analyzer, noise figure meter and signal generator, and operating under strict QC guidelines to guarantee high-quality products at competitive prices.

We also deal in high-quality alarm system. Our products conform to international standards, such as CE, GS, CE, EMC, UL and CSA. Meanwhile, OEM and ODM orders are welcome. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build long and successful business relationships with us.
