outdoor fiber optic repeater gsm 900 for in-building coverage and railway / tunnel coverage

Carton with safty foam or as customer required.

Specifications

outdoor fiber optic repeater gsm 900 for in-building coverage
1.Fexible production
2.ISO 9001:2008
3.Low MOQ
4.OEM,ODM

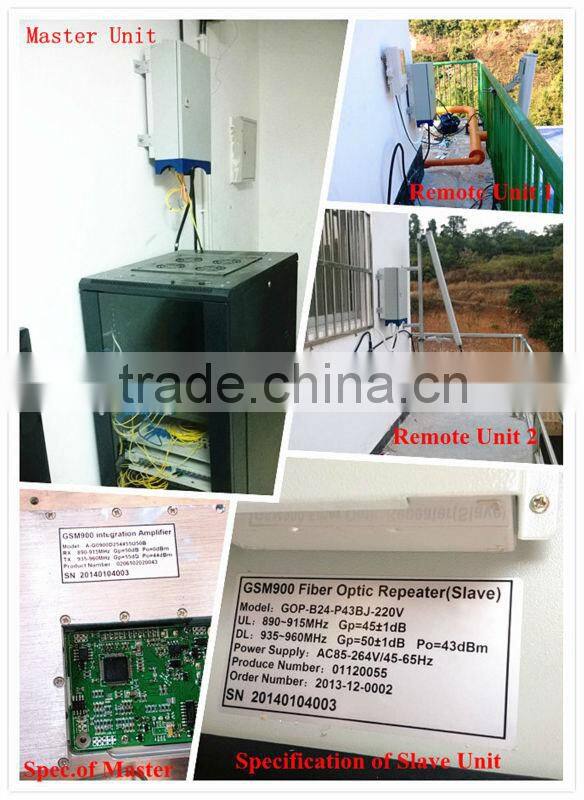

Fiber Optic Repeater is an integrated solution for coverage enhancement. The system consists of the Master Optical Unit (MOU) and Remote Unit (RU). The MOU’s modular design can support up to four RUs by adding additional optical interface card. The RU’s fully weatherized enclosure with the built-in AC power surge arrestor allows product installation at any outdoor environment and powered by exposed power lines.

This solution is an effective point-to-multipoint distributed antenna system that provides effective coverage enhancement. It uses single-mode fiber and is suitable for applications where large signal coverage is required, such as citywide enhancement, highway and canyons, campus, underground tunnels, airports and convention centers, etc.

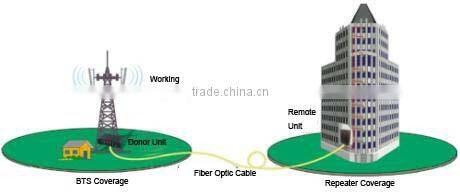

Schematic diagram of Fiber Optic repeater :







fiber optic cellular repeater 900 gsm Function

1,Donor Unit,Remote Unit;

2,One Donor Unit can support 4 Remote Unit to maximize utilization of fiber optic cable;

3,Max transmission distance between Donor Unit and Remote Unit is 20Km

4,Easy to install on wall or pole



fiber optic cellular repeater 900 gsm Features

1.Fiber Optic Repeater :

2.It is an integrated solution for coverage enhancement .

3.The system consist of the Master Optical Unit and Remote Unit ,

4.The MOU's modular design can support up to four RUs by adding additional optical interface card.

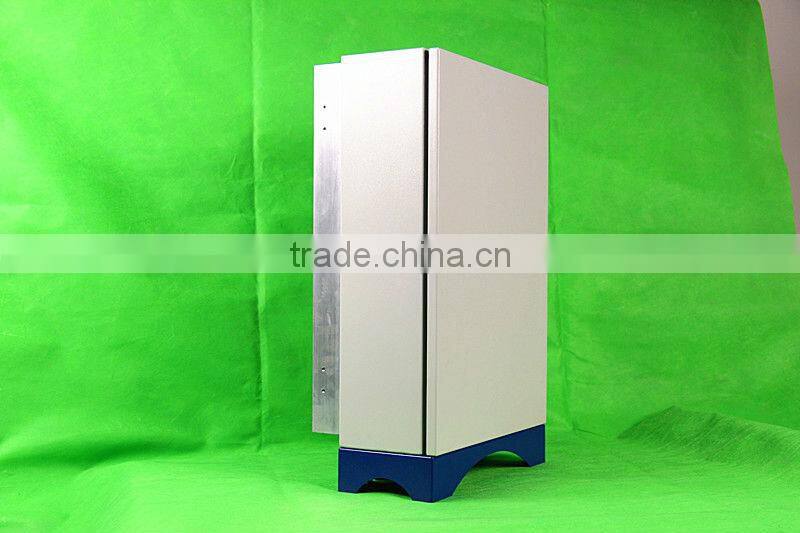

5.The RU's fully weatherized enclosure with the built-in AC power surge arrestor allows product installation

at any outdoor environment and powered by emposed power lines,etc.



Fiber optic cellular repeater 900 gsm Technical Specification



Items				GSM900MHz Fiber Optical Repeater
				Donor Unit	Remote Unit
Frequency Range			Uplink	890-915MHz
			Downlink	935-960MHz
Working Band Width				Various bandwidth is available upon request
No. of Channels				1,2,4,6,8 for option
Transmission Distance				Max20KM(From Donor Unit to Remote Unit)
Max Input Level				+10dBm
Output Power			Uplink	Min-10dBm	-
			Downlink	-	Min37dBm-43dBm(5W-20W)
Gain				Min65dB
AGC Control Range				Min20dB(+/-2dB)
Gain Control Range				31dB(1dBStep)
VSWR				<1.5
Ripple in Band				Max+/-1.5dB
Inter modulation attenuation				≤-45dBc ♦; ≤-36dBc ♦
Spurious Emissions	9KHz-1GHz			Max-36dBm
	1GHz-12.75GHz			Max-30dBm
RF Connector				N-type Female
I/O Impedance				50ohm
Noise Figure				Max5dB
Group Time Delay				Max1.5µS
Optical Fiber Specification		Wave Length		1.31µm;1.55µm
		Output Power		Min0dBm
		Fiber Type		G652
		Fiber Connector		FC/PC
		Sensitivity		Max-13dBm(C/N=20dB)
		Time Delay		Max5µS/KM
Temperature Range				-30degreeCelsiusto+55degreeCelsius
Relative Humidity				Max95%
M.T.B.F				Min100,000hrs
Power Supply				DC -48V / AC220V (50Hz)/AC110V(60Hz)(+/-15%)
UPS Backup Power Supply(Optional)				6hours/8hours
NMS Monitor Function				Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc.
Remote Control Module(Optional)				RS232orRJ45+WirelessModem+ChargeableLi-ionBattery









Frequency list of our outdoor fiber optic cell phone repeater :

Support System	Frequency Range	Output Power
GSM900MHZ	890-915MHz/935-960MHz	2W/5W/10W/20W/30W/40W/50W/60W
DCS1800MHz	1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/30W/40W/50W/60W
PCS1900MHz	1895-1910MHz/1975-1990MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA450MHz	450-457.5MHz/460-467.5MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA800MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
CDMA1900MHz	1880-1890MHz/1960-1970MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS850MHz	824-849MHz/869-894MHz	2W/5W/10W/20W/30W/40W/50W/60W
UMTS2100MHz	1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/30W/40W/50W/60W
GSM900/1800MHZ	890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz	2W/5W/10W/20W/
GSM850/1900MHZ	824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz	2W/5W/10W/20W
GSM900/UMTS2100	890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz	2W/5W/10W/20W/





Question: I live in a rural area. Rather than having a second phone line for work, I'd like to use my cell phone, but it only works outside.

Answer: Signals in many rural areas are marginal and cannot penetrate the walls of your home. Kingtone repeater can be easily deployed to provide coverage throughout your house. In a home, the donor unit is generally deployed outside – for example, under the eaves. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most homes.

Question: When I'm at the cottage, I'd like to stay in touch, but if I publish my cottage number, everyone will call. I'd like to just use my cell phone. Can you help?

Answer: Signals in many cottage areas are marginal and cannot penetrate the walls of your cottage. Kingtone repeater can be easily deployed to provide coverage throughout your cottage. In a cottage, the donor unit is generally deployed outside – for example, under the eaves or on a utility pole. Because it is more sensitive than your phone and is mounted higher up, it can usually detect signals that your phone can't. The coverage range of 15,000 to 50,000 square feet (2,000 to 4,600 square metres) is adequate for most cottages.

You get the privacy of your cottage and the convenience of your cell phone. Just remember to turn it off sometimes!

Question: I'm a production manager in a factory, and no cell phones work inside. I spend most of my time in a couple of spots. Can you help?

Answer: Factories and warehouses with lots of metal construction often have poor signals. While these buildings may be large, the employees are generally located in only a few areas.
Kingtone repeater can be easily deployed to provide coverage in those spots. The donor unit is deployed on the roof and connected to a coverage unit inside. The coverage range of up to 100,000 square feet is adequate for most trouble spots. Multiple units can be easily deployed to cover office areas and other working locations.

Question: No cell phones work in the parking garage. While many employees carry cell phones for safety, the phones aren't useful in any of the high-risk areas.

Answer: Kingtone repeater an provide coverage in parking garages above and below ground. That's useful for emergencies, and it removes the irritation of calls being dropped when you park your car.
The donor unit is placed where it can detect a signal (this might be outside or in a stairwell). It is connected to the coverage unit, which is placed in the centre of the garage up to 245 feet (75 metres) away.

Question: I work in an office building with no outside access. The windows don't open, and I can't get to the roof. How can I install?

Answer: Kingtone repeater can be deployed completely within your office. It is the only in-building in-building solution.

The donor unit needs to be placed somewhere where it can detect a signal (this might be beside a window or the outside wall). The coverage unit is then placed roughly in the centre of the problem area. Ideally, the two units are separated as much as possible.
For esthetic purposes, the entire system can be placed above the ceiling tiles.

Question: Does Kingtone repeater provide coverage for multiple users within a trouble spot?

Answer: Absolutely. Kingtone repeater is fully adaptive and supports multiple simultaneous users. Multiple units can be easily deployed to cover office areas and other working locations.
