Specifications
cheap!!800-2700MHz Log Periodic Antennas GSM/CDMA/3G/4G800~960/1710~2700MHz
100W 12dBi
Promotion!!! 800-2700MHz Log Periodic Antennas GSM/CDMA/3G/4G Yagi Antenna
Specification
|
|
|
|
Model |
TDJ-0827DSAN-12 |
||
|
|
||
|
Frequency Range-MHZ |
800~960/1710~2700 |
||
|
Gain-dBi |
12 |
||
Vertical Beamwidth-° |
50/40 |
||
Horizontal Beamwidth-° |
65/50 |
||
F/B Ratio -dB |
≥18 |
||
VSWR |
≤1.5 |
||
Nominal Impedance-Ω |
50 |
||
Polarization |
Vertical |
||
|
Maximum Power-W |
100 |
||
|
Dimension-mm |
495×210×65 |
||
|
Weight-kg |
1.2 |
||
|
Connector |
N female |
||
|
Remarks |
Poles Mounting |
||
Installation:
1, Installation instruction: In accordance with the installation sketch,

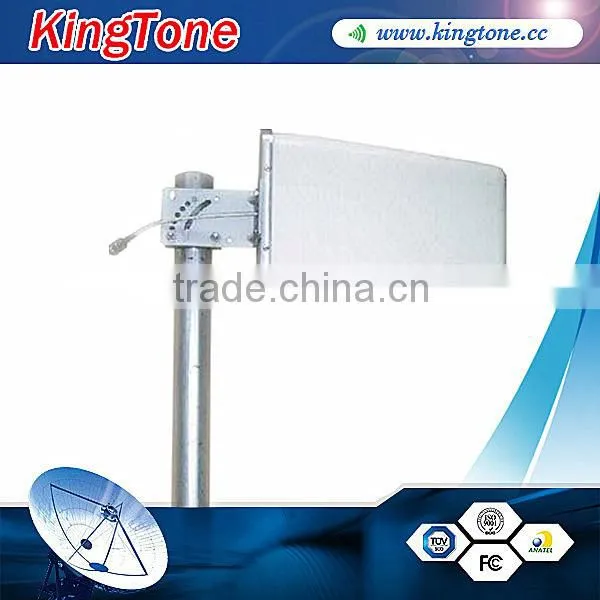

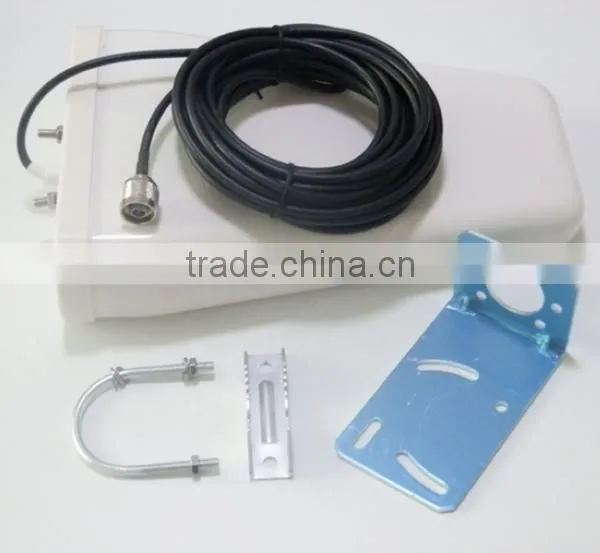

Mount the antenna on the “L” type brackets according to the mounting diagram,and then mounted it to a mast. The dimension of mast is 30-50mm.
2, Storage and transportation:
A, The antenna must be stored in room temperature and dry environment;
B, Handle the antenna with care
3, Attention: The antenna mustn’t be near to fire.
